Reliable trailer generator with canopy and four wheels
1. Specification for trailer generator
| Genset Model | Open Type | SH80GF | |
| Soundproof Type | SH80GFS | ||
| Prime Power(kW/kVA) | 80/100 | ||
| Standby Power(kW/kVA) | 88/110 | ||
| Diesel Engine | Model | R6105ZLD | |
| Type | water-cooled, inline, 4-stroke,direct injection | ||
| Rated Power(kW) | 100 | ||
| Intake Type | Turbocharged | ||
| No.of Cylinder | 6.L | ||
| Bore x Stroke(mm) | 105x125 | ||
| Displacement(L) | 6.49 | ||
| Piston Speed(m/s) | 6.25 | ||
| Compression Ratio | 16:1 | ||
| Mechanical Governor Rate | 5% | ||
| Electronic Governor Rate | 1% | ||
| Noise Level (dBA) | 75 | ||
| Exhaust Temperature(°C) | 600 | ||
| Lub oil Capacity(L) | 16 | ||
| Rated Fuel Consumption(L/h) | 24.53 | ||
| Alternator | Model | WHI274C | |
| Rated Power(kW/kVA) | 80/100 | ||
| Power Efficiency | 90.00% | ||
| Voltage Regulation | ±1 | ||
| Excitation Type | Brushless | ||
| Insulation Class | H | ||
| Overall Size(mm) | Length | 2600 | |
| Width | 950 | ||
| Height | 1850 | ||
| Gross Weight(kg) | 1350 | ||

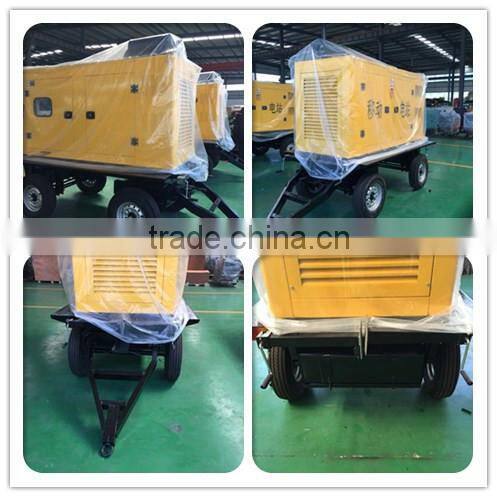

2.Photo for trailer generator
Packed with wrapped film as standard,plywooden case for options
When we finished the test of diesel generator,our transporation department then will take charge
of sending the generator to the container at port of loading,with help of our excellent forwarder,
we send our generators to our customers successfully without any damage.
A. Supermaly advantage:
1. Professional diesel generator manufacturer, not trader
2. Decades’ years of manufacturing and exporting experience
3. Adopt International quality standards, to meet high quality requirement
4. Good reputation for Reliable quality & Reasonable price
5. Strong technical support ,quality checking strictly and 24hrs service team
6. Advanced production line with skilled workers
7.Some in stock and quick delivery
8.Choosing the reliable quality and famous brand for each parts
B. Supermaly Certificate:
C. Supermaly exhibition all over the world:
We attend the Canton fair in April and Oct each year.We also attend different countries fair with our generator.For details pls contact us online or by email.
Warranty policy
Guarantee for one year or 1500 hours whichever reach first from ex-factory date.
During the guarantee period, we will provide the free easy-damageable
spare parts of diesel engine caused by our quality of production or raw material.
After expiration, we provides cost spare parts maintenance of gensets
OEM Service
We can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customers requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to
customer requirement.
4. Full warranty cover to support customers.
FAQ(Frequently Asked Question):
1. What is your warranty period?
Our payment terms is 1 year or 1500 running hours whichever comes first. But based on some special project, we can extended our warranty period.
2. Does your generator have global warranty?
Yes, most of our products like Cummins, Perkins, Doosan, Yuchai, Deutz, Volvo power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
3. Can you accept OEM?
Yes, we can accept OEM.
4. What is your payment terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
5. What is your delivery time?
Our normal delivery time is 15-20 days. But if your order is some special engine and alternator, then the delivery time is longer.
Supermaly main products:
Diesel generator set: power by Perkins, Cummins, Doosan,Deutz, Volvo, Yuchai and son on.
Natural gas generator set: power by Perkins, revised Cummins, Yuchai.
Generator type: open generator, silent generator, mobile generator
