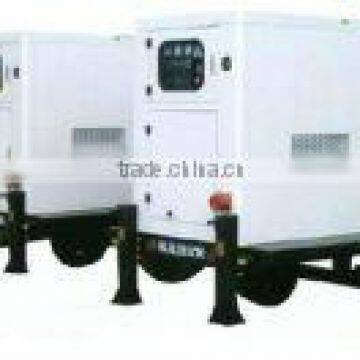

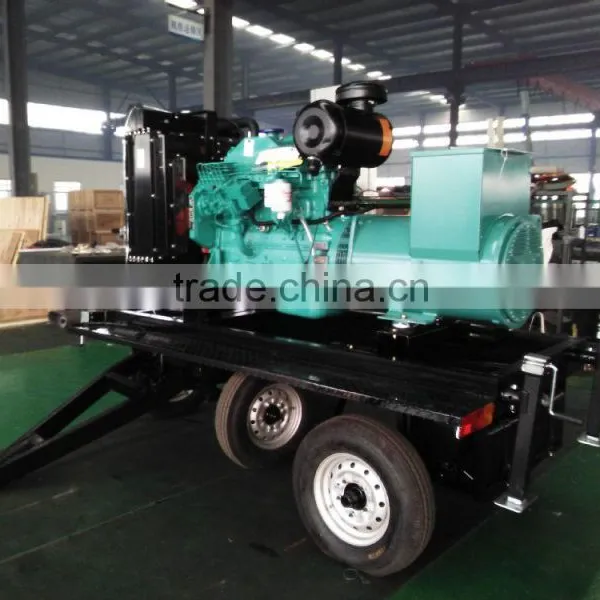

30kva generator on trailer

Genset model

SPT

Type

trailer type

Genset output power range

8kw-500kw

Rated voltage

220/380V,230/400V,240/415V,120/240V

Frequency

50/60HZ

Power factor

0.8

Rated speed

1500/1800rpm

output type

AC three phase/single phase

Motor

brushless

Frequency

<3%

Frequency at stable state:

<0.5%

Frequency deviation at instantaneous state

≤+10%

Frequency return time

≤3s

Voltage deviation at stable state

≤±1%

Voltage deviation at instantaneous state

≤+20%

Voltage return time

≤4s

Voltage modulation

≤0.3%

engine model

deutz, styre, ricardo, Lovol, volvo and so on

Cooling Method

water cooled

Rotating speed

  1500/1800rpm

Governor system

  electrical or mechanical governor

Aspiration mode

  natural aspirated or turbocharged

Starting method

  12/24V DC electric starting

Stroke

     4 stroke

Brand

Stamford, Leroy semor, Maraton etc.

Regulator

AVR automatic voltage regulating

Excite type

pret or shunt

Connecting type

3PH star, 3PH-DELTA

Steady frequency change

0-5%

No load voltage

≥95%-105

Steady voltage

≤±1

Insulation degree

H degree

Exclosure degree

IP23
