Home > Products > Components > Crydom relay panel mount ssr CWD4825P
Crydom relay panel mount ssr CWD4825P
US$ 25 - 70
/ Piece
1 Piece(Min. Order)
- Beijing
- Credit Card
You May Like
-
Crydom Solid-State Relay SSR Panel Mount SSR D06D60
-
Crydom SSR DC control CST SSR Pantel mount Relay
-
SIP SSR PCB mount Crydom solid state replay CX240D5
-
5mm Mini SIP SSR Crydom solid state relay model CN024D24
-
Din rail mount Crydom SSR ED06C5 SOLID STATE RELAY
-
DC control DIN rail mounted solid state relay CKRD2410
Product Details
| Place of Origin | Mexico | Brand Name | CRYDOM | |
| Model Number | CWD4825P | Theory | Solid State Relay | |
| Usage | General Purpose | Size | Miniature | |
| Protect Feature | Sealed | Contact Load | Low Power |
Product Description

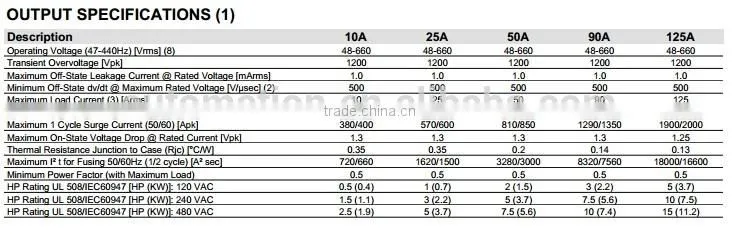

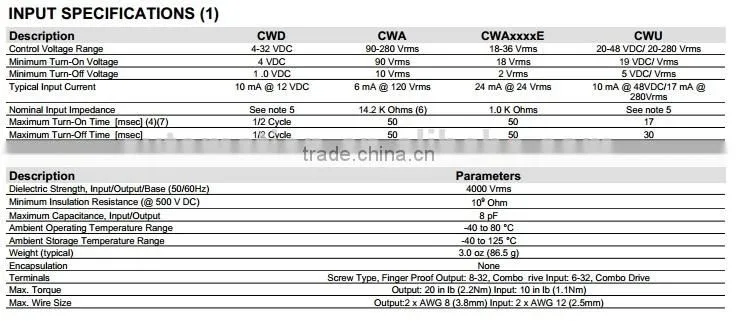

Specifications
Crydom relay CWD4825P UL approved SSR SOLID STATE RELAY panel mount ssrRatings from 10A to 125A @ 24-280 VAC and 48-660 VAC
S
Ratings from 10A to 125A @ 24-280 VAC and 48-660 VAC
SCR output for heavy industrial loads
EMC Compliant for reliable operation in harsh environments
Removable IP 20 touch-safe cover
DBC substrate for superior thermal performance
LED input status indicator
AC or DC input, and Universal AC/DC input
Zero-corssing (resistive loads) or random-fire (inductive loads) output
UL/CSA/TUV Approved, CE Compliant to EN60950-1
CWD4810,CWD4825,CWD4850,CWD4890,CWD48125
CWA4810,CWA4825,CWA4850,CWA4890,CWA48125
CWA4810E,CWA4825E,CWA4890E,CWA48125E
CWU4810,CWU4825,CWU4850,CWU4890,CWU48125
