Crydom SSR DC Control CST SSR Pantel Mount Relay

Crydom SSR DC Control CST SSR Pantel Mount Relay thumbnail-1
Crydom SSR DC Control CST SSR Pantel Mount Relay photo-1
US$ 83 - 175 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Mexico
Brand Name:
crydom
Model Number:
D1D100
Contact Supplier Request Quote Chat Now
Beijing Shuntu Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Mexico
Brand Name crydom
Model Number D1D100

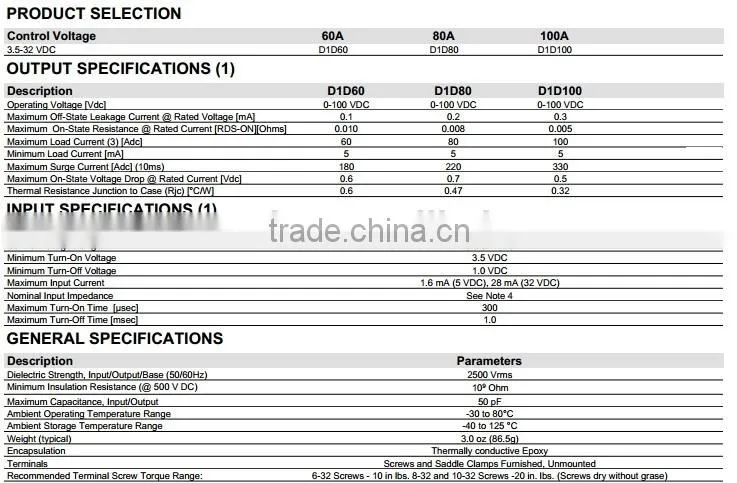

Specifications

D1D100 solid state relay Crydom SSR 100A DC Output SSR
1-DC Series MOSFET output
Control Voltage: 3.5-32 VDC ;
Ratings from

D1D100 solid state relay Crydom SSR 100A DC Output SSR
1-DC Series MOSFET output
Control Voltage: 3.5-32 VDC ;
Maximum Load Current: 100 Amps ;
Line Voltage Range: 100 VDC
- Ratings from 7A to 100A and 100 to 500 VDC
D1D to D5D series SSRs;
MOSFET output
- Ratings from 7A to 40A @ 200 VDC, and from 7A to 10A @ 500 VDC
-DC Control
-Relays are easily paralleled for higher-current applications
Part Number; Control Voltage;Maximum Load Current;Line Voltage  Range
D1D07;3.5-32 VDC; 7 Amps; 100 VDC
D1D12;3.5-32 VDC;12 Amps;100 VDC
D1D20; 3.5-32 VDC; 20 Amps; 100 VDC
D1D40; 3.5-32 VDC; 40 Amps; 100 VDC
D1D60; 3.5-32 VDC; 60 Amps; 100 VDC
D1D80; 3.5-32 VDC; 80 Amps; 100 VDC
D1D100; 3.5-32 VDC; 100 Amps; 100 VDC
D2D07; 3.5-32 VDC; 7 Amps; 200 VDC
D2D12; 3.5-32 VDC; 12 Amps; 200 VDC
D2D40; 3.5-32 VDC; 40 Amps; 200 VDC
D4D07; 3.5-32 VDC; 7 Amps; 400 VDC
D4D12; 3.5-32 VDC; 12 Amps; 400 VDC
D5D07; 3.5-32 VDC; 7 Amps; 500 VDC
D5D10; 3.5-32 VDC; 10 Amps; 500 VDC

DID100; DIDI00; D1DI00; DIDIOO; D1DI00;

Crydom SSR DC control CST SSR Pantel mount Relay
