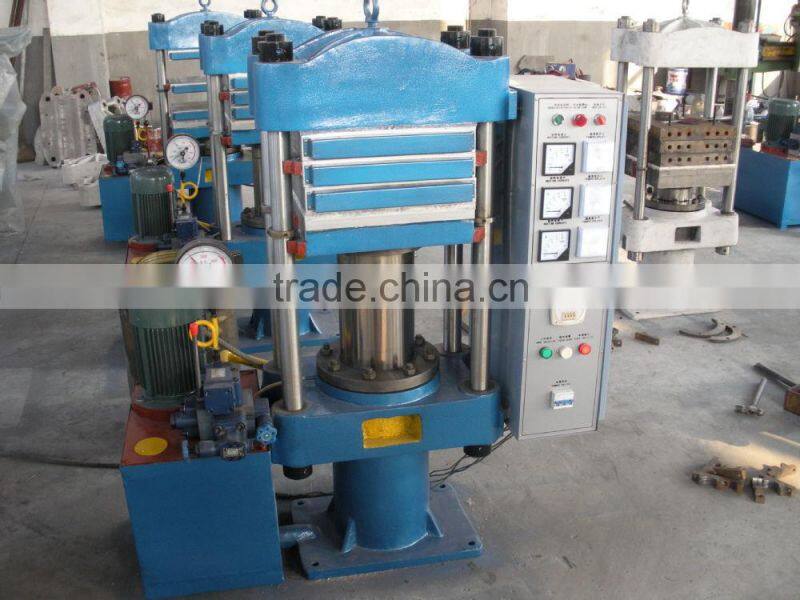

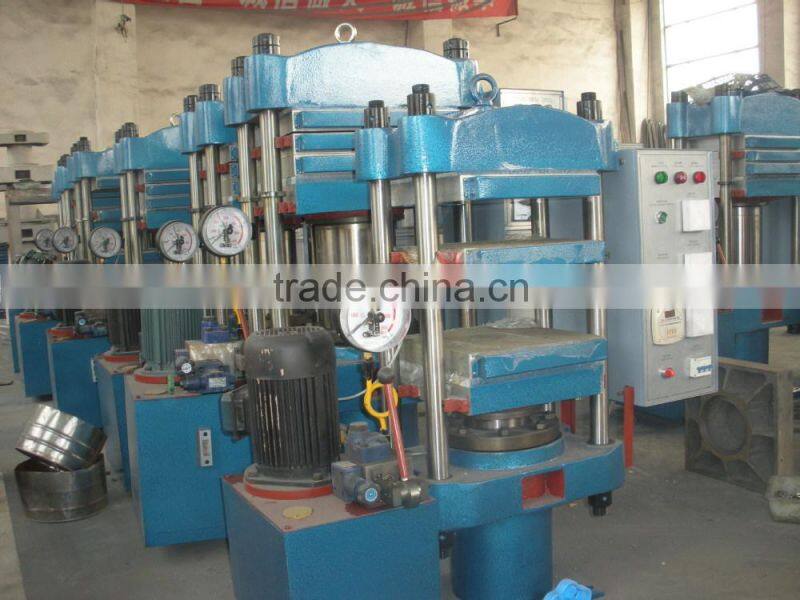

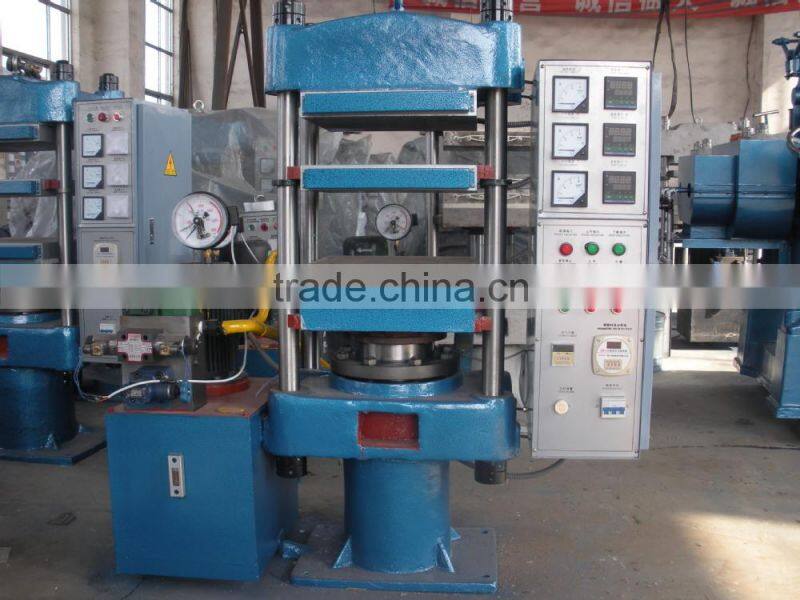

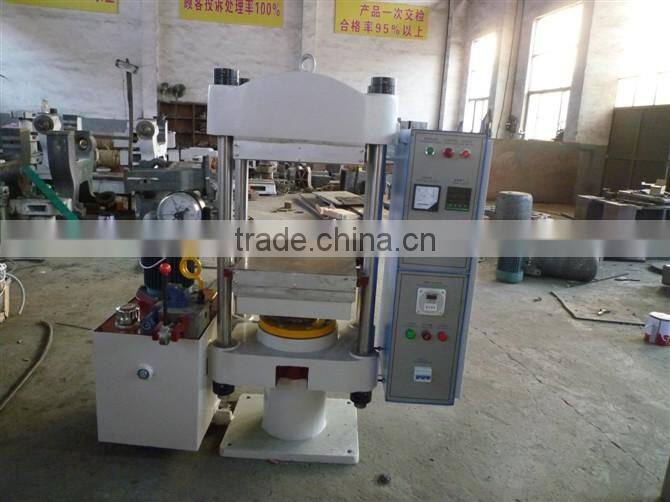

LAB RUBBER Hot PRESS MACHINE
Application : lab use ,rubber & plastic vulcanizing , rubber tiles making , rubber gasket making , conveyor belt and so on .
Features
1.Specific Pressure required per cm (or per inch) on product or platen to decide the tonnage of the press.
2.Heating Media (Steam or electrical) curing temperature, curing time sequence to decide the method of heating, cycle of operation of the press.
3.Therefore, an expert advice for selection of most appropriate press is utmost important, which you get free from here and makes Hydraulic Presses the 'Zero Error' Presses.
Introduction
| Model XLB-D | 400*400*2 | 500*500*2 | 450*450*4 |
| Nominal Mold Force(MN) | 0.80 | 0.80 | 0.63 |
| Plate Specification(mm) | 400*400 | 500*500 | 450*450 |
| Working Layer Number | 2 | 2 | 4 |
| Plunger Stroke(mm) | 250 | 300 | 250 |
| Plate Unit Pressure(Mpa) | 5.0 | 3.2 | 3.1 |
| Plate Distance(mm) | 125 | 150 | 62.5 |
| Plunger Diameter(mm) | 250 | 250 | |
| Working Fluid Pressure( Mpa) | 16.2 | 16.2 | 12.8 |
| Total Heating Power | 9 | 9 | 15.0 |
| Heating Type | Electricity | Electricity | Electricity |
| Highest Temperature | 200°C | 200°C | 200 |
| Structure Form | Pillar | Pillar | Four Column |
| Motor Power | 1.5KW,940r/min | 1.5KW,940r/min | 2.2KW,1400r/min |
| Dimension(length*width*height) | 1300×650×1400 | 1300×1400×650 | 1325*650*1670 |
Qingdao HuaTuo Machinery Co., Ltd. is one of the important backbone enterprises in rubber machinery industry in China and is the member of Shandong machinery union company.
Our company owns powerful technical strength, advanced techniques, the best design and a strict quality guarantee system, and owns a high reputation in Chinese rubber machinery industry.
The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas. All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.

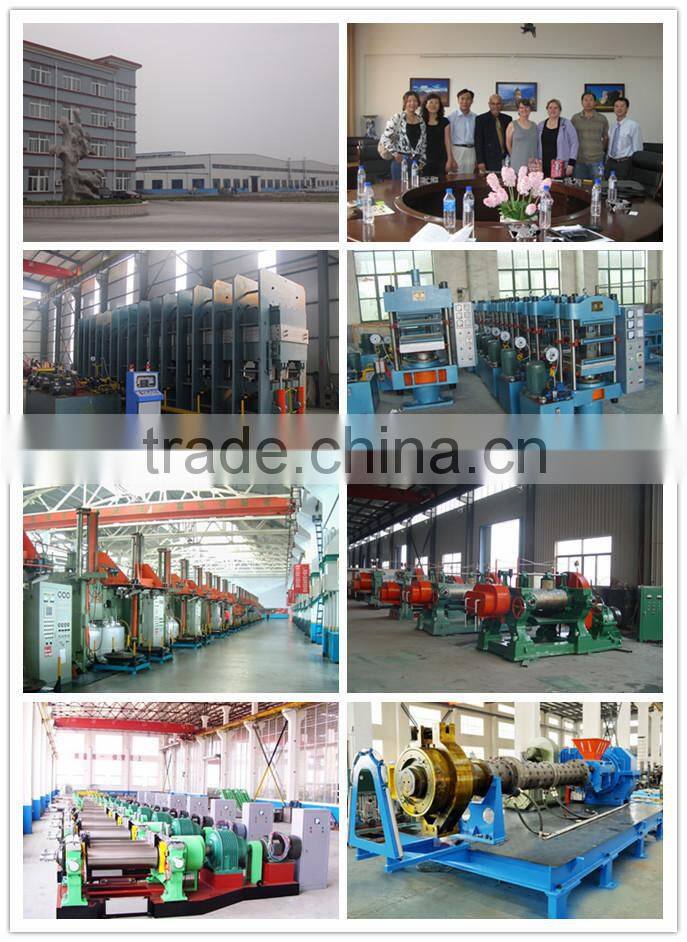

| Factory
|
|
|
|
Production capacity
|
|
main products are plate vulcanizing presses, open rubber mixing mills, Banbury intensive kneaders, extruders and rubber and reclaimed rubber machinery.
|
|
1Q:Can you provide technical support?
A: Selection to provide comprehensive technical support, and free technical training.
2Q:What if the machine are defected after we get the machine?
A: Life-long free maintenance and good after-sale service is our promise.
3Q:How long is the delivery time?
A: Normally within 25 days after confirming the order, We may promise that we can try our best to finish all of your orders within the shortest time.For more information,
please contact us directly.
4Q:More information about payment terms?
A:We can accept Paypal,T/T and Western Union for money transfer and cash.
The combination of three-dimension CAD system and Internet guarantees the synchronization with international advanced technology. The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture. At the same time, our company keeps good contact with several universities and research institutes.
Our company takes "To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time" as management idea, and insists on the principle of "Quality is the first, Reputation is first, Client is the first". We will provide you with the best service.
