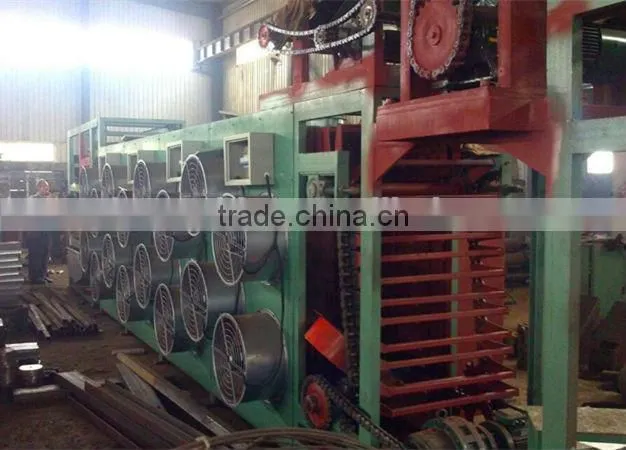

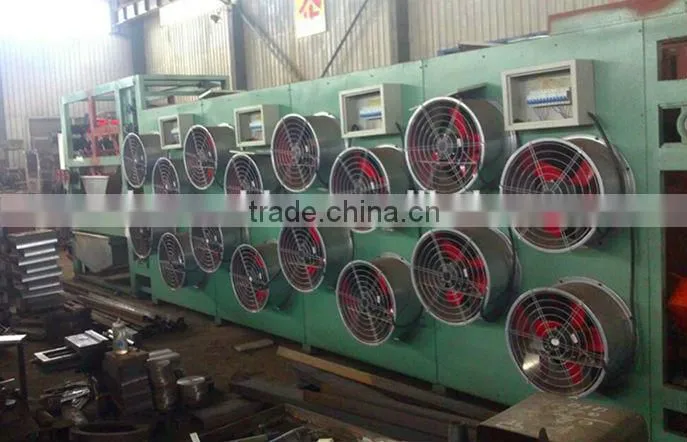

High Efficiency 16-32 Fan Wind Cooling or Water Cooling Rubber Film Cooling Machine

High Efficiency 16-32 Fan Wind Cooling or Water Cooling Rubber Film Cooling Machine thumbnail-1
High Efficiency 16-32 Fan Wind Cooling or Water Cooling Rubber Film Cooling Machine photo-1
US$ 29,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, film cooling line
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Qingdao Huatuo Mechanical Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, film cooling line
Place of Origin Shandong, China
Brand Name CN HUATUO
Model Number XPG-600-700
Voltage 380V or different
Power(W) 0.37KW
Dimension(L*W*H) models varies
Weight 11tons to 30tons
Certification CE and ISO
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Rubber Film Cooling Machine
Easy operation, fully-automatic driving.
Stainless steel material for the feeding strip
CE stan

 New Technology 16-32 fans Wind Cooling or Water Cooling Rubber Film Cooling Line



1.Main uses

This is the downstream auxiliary to Rubber Mixing mill and is designed to perform continuous operations of rubber slab conveying, coating separant, air cooling, drying, cutting and wig-wag stacking.





2.Structure features



a.      The operations of separate applying, air cooling, drying, cutting and wig-wag stacking are performed in a single machine, forming continuous production at high efficiency.
b.      Rubber slabs are soaked thus applied with the separant so that the coating is even without pollution to the environment.
c.      A long tim is set for air cooling of rubber slabs so that the cooling effect is good.
d.      Slabs can be cut to length during operation and the length is adjustable.

e.      Use of PLC control and the frequency-control speed regulatioin makes it possible to control the whole process.





3.Technical parameters of film cooling machine

Parameters/ Version

XPG-600-700

 XPG-800-900

Film specification

 (4-12)*600-700mm

 (4-12) *800-900 mm

Front take-way coneyor belt max linear velocity

  400m / min

    400m/min

Rubber strip hanging barwoving speed

0.117-2.2 m/min

  400m/ min

Axial Fan

  0.37kw 5760 cubic meter/ h

 0.37kw 5760 cubic meter/ h

Swing range and frequency

 1.3m 10-16times/ min

  1.3m 10-16 times/ min

Rubber strip temperature after cooling

No higher than 5 above room temperature

No higher than 5 above room temperature

Speed-adjusting frequency motor of  lifting swing device

XWD 1.5-3-1/11

XWD7.5-7-1/43

Speed-adjusting frequency motor or rubber swing edvice

XWD 1.1-5-1/87

 XWD 1.1-5-1/87

Rubber bar pitch

160 or 101.6

 160 or 101.6

Max hanging height of rubber strip

1400mm

1400mm

High Efficiency 16-32 Fan Wind Cooling or Water Cooling Rubber Film Cooling Machine





High Efficiency 16-32 Fan Wind Cooling or Water Cooling Rubber Film Cooling MachineHigh Efficiency 16-32 Fan Wind Cooling or Water Cooling Rubber Film Cooling Machine
