Help CenterNatural Gas Generator 200KW by Sinotruck Steyr Engine With CHP System
Related Products
-
375kva Natuarl Gas Generator CE Approved for SaleUS$ 48,700 - 53,000MOQ: 1 Set -
Hot Sale Standby 88KW Natural Gas Generator With Cummins EngineUS$ 13,000 - 15,000MOQ: 1 Set
-
1250kva Natural Gas Generator From Supermaly Power With Low SpeedUS$ 305,000 - 386,000MOQ: 1 Set
-
1MW Gas Generator From Supermaly PowerUS$ 305,000 - 368,000MOQ: 1 Set
-
1MW Natural Gas Generator From Supermaly Power With Low SpeedUS$ 305,000 - 386,000MOQ: 1 Set
Applications: CNG Station, factory, school, market, building, oil filed, playgroud, filed construction, etc.
1. natural gas generator 200kw feature
1) natural gas generator 200KW gas consumption: 0.28Nm³/kw.h and the running cost lower.
2) We can installed the generator on your site.
4) We supply you spare parts during the whole service life.
5) natural gas generator 200KW adopt Cummins engine block or Steyr engine, the quality is very good. Also it is easy for customer to get maintenance spare parts.
6) natural gas generator 200KW adopt advanced Hall ignition sensor and highly quality USA Altronic ignition system, the engine ignition will be more reliable and easier to start. Besides,there is Top End Center mark on the engine,it is easy for users to adjust the top end certer when commissioning generator set.

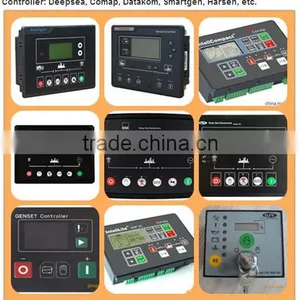

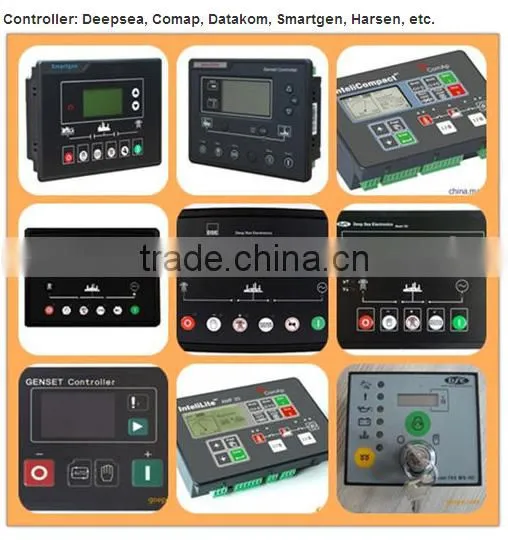

7) natural gas generator 200KW adopt ComAp or Deepsea Interligen/Interlisys controller to make synchronization for generator set, all the parameters can be set in the program and can realize the remote controlling through cell phone or computer.
8) The gas inlet pressure for natural gas generator 200KW is 2~7kPA.
9) natural gas generator 200KW with electrical mixer. The mixer guarantees optimum air-fuel ratio to improve efficiency and reduce NOx emission. Unique air-fuel ratio adjusting system is suitable for 30%~90% methane concentration.
2. Natural gas generator 200kw specification
Model of generating sets |
SP200GF-T |
Model of engine |
WT12.42 |
Rated power |
200KW |
Standby power |
220KW |
Rated speed RPM |
1500 |
Rated voltage V |
400/230 |
Rated frequency Hz |
50 |
Rated power factor |
0.8 |
Gas consumption |
0.3Nm3/kw.h |
Supply method |
3 phases 4 lines |
Excitation method |
brushless |
Starting method |
24V DC starter 24V |
Cooling method |
Water tank and fan |
Speed modulate method |
Electronic control |
Net weight kg (open type) |
2600 |
Overall dimension L×W×H(mm) (open type) |
3000*1350*1800 |
3. Natural gas generator 200kw electrical feature
Voltage: 400/230V, 220/127V,440/254V, 480/277V, etc |
Frequency: 50Hz/ 60Hz Speed: 1500r.p.m / 1800 r.p.m |
Power Factor: 0.8(lagging) |
Protection Standard: IP23 |
Model of Connection: 3 phase 4 lines /1 phase |
Insulation Grade: H |
Frequency Drop(%): ≤ 0.5 |
Transient state frequency deviation(%):(advertised power ) +10~-7 |
Frequency Recovery Time(S): ≤ 3 |
Voltage Recovery Time(S): ≤4 |
Waveform Distortion(%): ≤5 |
Supply scope
Natural gas engine/ alternator/ common base/fan and radiator/ exhaust pipe and exhaust silencer / heat recovery system/ control cabinet/ spare parts/ special tools / batteries and connecting wire/ export wooden case/ documents
Our partner

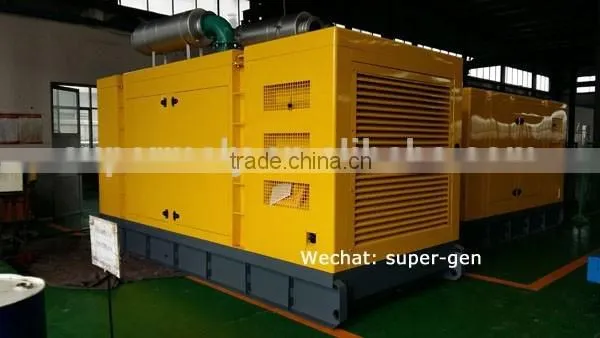

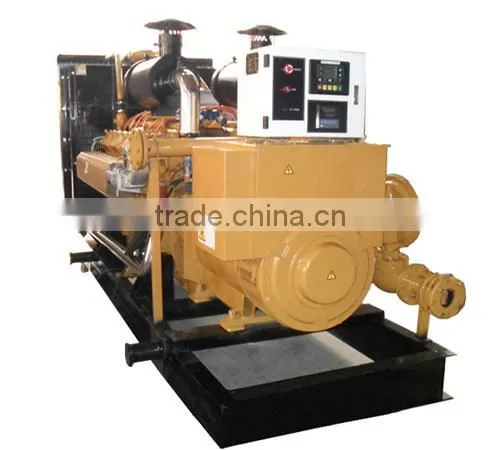

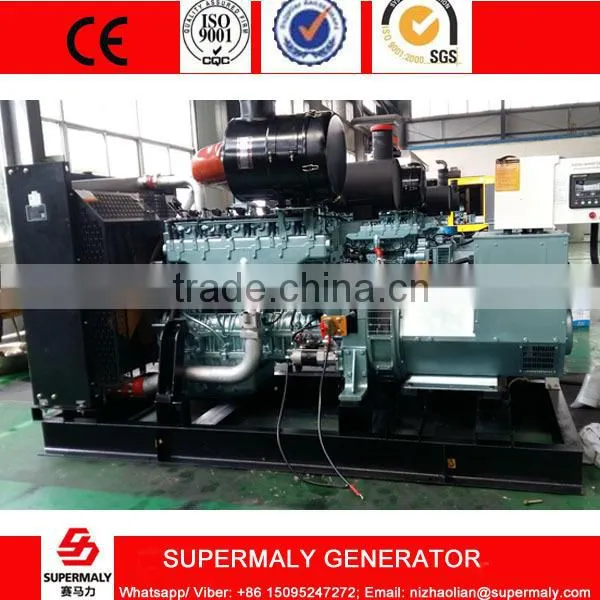

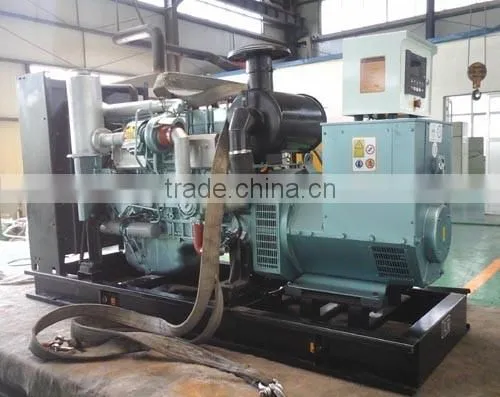

4. natural gas generator 200KW photos

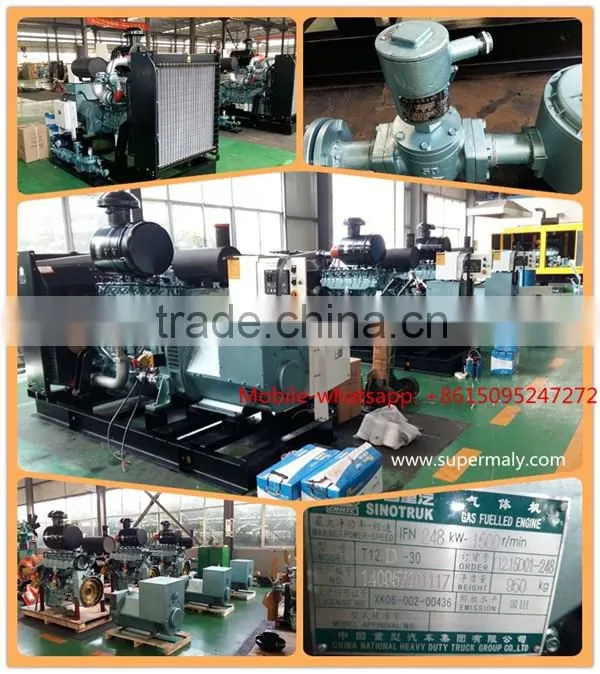

Detailed parts photo of natural gas generator 200KW

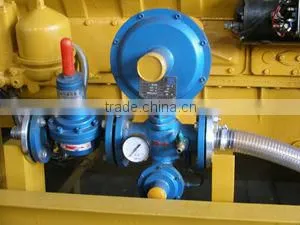

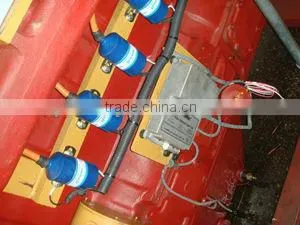

Gauge, Altronic ECU, IMPCO mixer, USA gas reducing valve
| |
|
| |
|

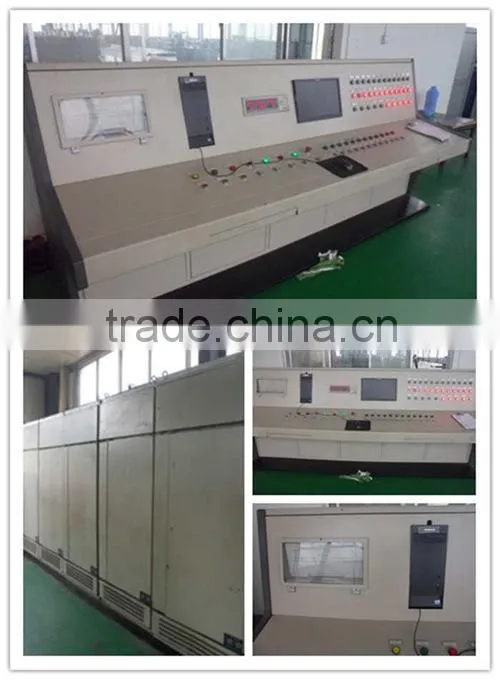

Test before delivery for natural gas generator 200KW

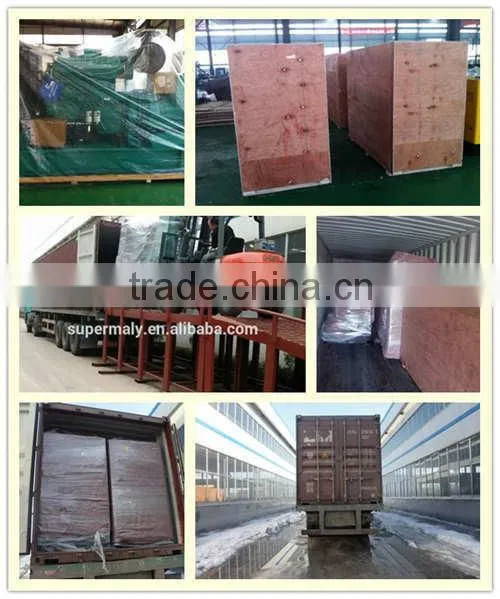

Packaging and shipping of natural gas generator 200KW

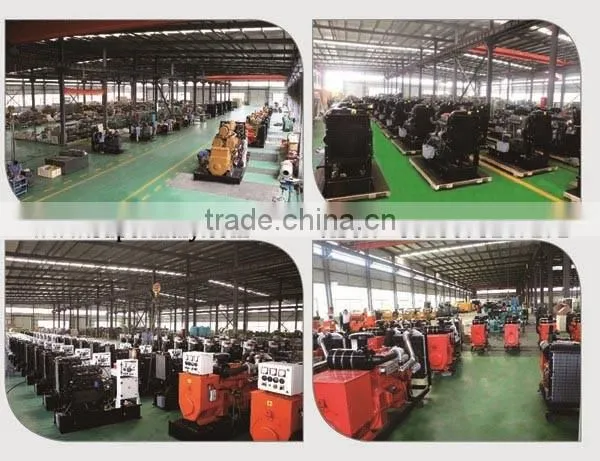

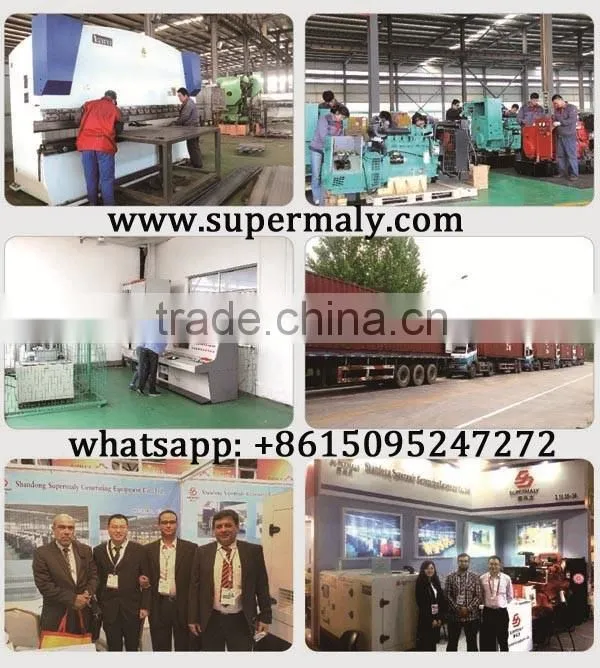

Our factory 35000 square meters.
Why choosing SUPERMALY?
1) We are professional gas generator manufacturer, with 10 years of manufacturing and exporting experience
2) We cooperate with famous engine and alternator factory, such as Perkinsengine, Cumminsengine, Doosan, Lovol, Mitsubishi, Deutz, Yuchai, Weichai, Stamford, Leroy somer, etc.
3)We supply you spare parts during the whole service life.
4) Adopt International quality standards, to meet high quality requirement. Our generators with CE, ISO, BV, SGS certifcate.
5) Good reputation for Reliable quality & Reasonable price
6) Strong technical support and advanced production line with skilled workers
Please write down your requirements. We would like to give you our best offer
