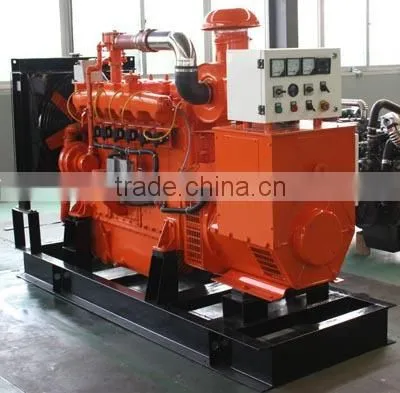

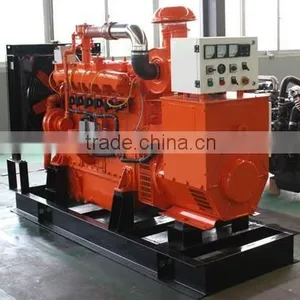

Help CenterHot Sale Standby 88KW Natural Gas Generator With Cummins Engine
Related Products
-
1250kva Natural Gas Generator From Supermaly Power With Low SpeedUS$ 305,000 - 386,000MOQ: 1 Set -
1MW Gas Generator From Supermaly PowerUS$ 305,000 - 368,000MOQ: 1 Set
-
1MW Natural Gas Generator From Supermaly Power With Low SpeedUS$ 305,000 - 386,000MOQ: 1 Set
-
1000kw Gas Generator From Supermaly Power With Low Speed Quality ChoiceUS$ 305000.00 - 305000.00MOQ: 1 Set
-
1000kw Natural Gas Generator With Low Speed High PerformanceUS$ 305000.00 - 305000.00MOQ: 1 Set
1. 88KW natural gas generator feature
1) 88KW natural gas generator gas consumption: 0.28Nm³/kw.h
2) 88KW natural gas generator running cost lower.
3) We supply you spare parts during the whole service life for 88KW Natural gas generator.
5) 88KW natural gas generator adopt Cummins engine block, the quality is very good. Also it is easy for customer to get maintenance spare parts.
6) 88KW natural gas generator adopt advanced Hall ignition sensor and highly quality USA Altronic ignition system, the engine ignition will be more reliable and easier to start. Besides,there is Top End Center mark on the engine,it is easy for users to adjust the top end certer when commissioning generator set.
7) 88kw gas generator adopt ComAp or Deepsea Interligen/Interlisys controller to make synchronization for generator set, all the parameters can be set in the program and can realize the remote controlling through cell phone or computer.
8) The gas inlet pressure for 88kw natural gas generator is 2~7kPA.
9) 88KW natural gas generator with electrical mixer. The mixer guarantees optimum air-fuel ratio to improve efficiency and reduce NOx emission. Unique air-fuel ratio adjusting system is suitable for 30%~90% methane concentration.
2. 88KW natural gas generator specification
Model of generating sets |
SPC80GF-T |
Model of engine |
SPC6CTA |
Rated power KW |
80 |
Standby power KW |
88 |
Rated speed r/min. |
1500 |
Rated voltage V |
400/230 |
Rated frequency Hz |
50 |
Rated power factor |
0.8 |
Gas pressure |
1.5-3kpa |
Gas consumption |
0.32Nm3/kw.h |
Supply method |
3 phases 4 lines |
Excitation method |
brushless |
Starting method |
24V DC starter 24V |
Cooling method |
Closed type water cooling(with water tank) |
Speed modulate method |
Electronic control |
Net weight kg |
2200 |
Overall dimension L×B×H(mm) |
2500*1000*1700 |
3. Our advantage on 88kW natural gas generator
1. Professional gas generator manufacturer, with 35000 square meters factory.
2. Decades’ years of manufacturing and exporting experience
3. Adopt International quality standards and USA technology to meet high quality requirement
4. Good reputation for Reliable quality & Reasonable price
5. Strong technical support
6. Advanced production line with skilled workers
4. 88KW Natural gas generator electrical feature
Voltage: 400/230V, 220/127V,440/254V, 480/277V, etc |
Frequency: 50Hz/ 60Hz Speed: 1500r.p.m / 1800 r.p.m |
Power Factor: 0.8(lagging) |
Protection Standard: IP23 |
Model of Connection: 3 phase 4 lines /1 phase |
Insulation Grade: H |
Frequency Drop(%): ≤ 0.5 |
Transient state frequency deviation(%):(advertised power ) +10~-7 |
Frequency Recovery Time(S): ≤ 3 |
Voltage Recovery Time(S): ≤4 |
Waveform Distortion(%): ≤5 |
Our partner for 88kw natural gas generator
5. 88kw natural gas generator photos
Detailed parts photo of 88KW natural gas generator
control panel, governor, Gauge, Altronic ECU, IMPCO mixer, USA gas reducing valve

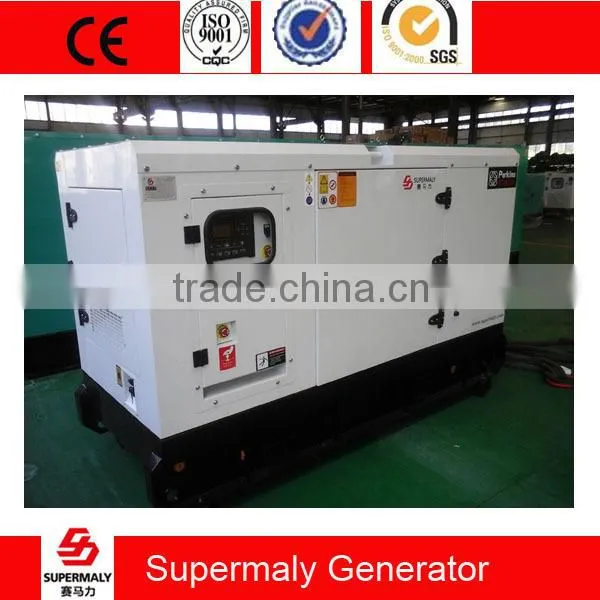

Silent type photos of 88kw natural gas generator
Test before delivery for 88kw natural gas generator
Packaging and shipping of 88kw natural gas generator
Our factory 35000 square meters, with 2 hundred million CNY registered capital.
If there is any problem, pls contact with me by email or online. Thanks.
Whatapp / viber /wechat: +86 15095247272
If you need Cummins diesel generator, please kindly check this photo for more details.
