Home > Products > Gas generator with Different Brands > Natural gas genset 380kVA for sale
Natural gas genset 380kVA for sale
- 300 Set / Sets per Month
- Qingdao
Product Details
Place of Origin: | Shandong, China | Brand Name: | Supermaly | Model Number: | NG380GF |
Output Type: | AC Three Phase | Speed: | 1500rpm | Frequency: | 50Hz |
Rated Power: | 380kVA | Rated Voltage: | 400V/230V | Rated Current: | 547.2A |
Product Description

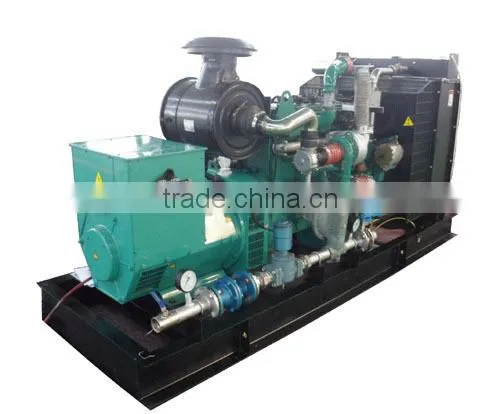

Overview of Natural gas genset 380kVA
>Main parameters
Generator Set Model | NG380GF |
Type | Open/Silent |
Genset Output Power(kVA) | 380 |
Rated Voltage(V) | 400/230 |
Frequency(Hz) | 50 |
Power factor | 0.8 |
Rated speed(rpm) | 1500 |
Output type | AC three phase/single phase |
Alternator | brushless |
Frequency | <3% |
Frequency at stable state: | <0.5% |
Frequency deviation at instantaneous state | ≤+10% |
Frequency return time | ≤3s |
Voltage deviation at stable state | ≤±1% |
Voltage deviation at instantaneous state | ≤+20% |
Voltage return time | ≤4s |
Voltage modulation | ≤0.3% |
1. Reliable engine world famous brand, air filters/oil filters included.
2. Famous alternators such as Leroysomer/Stamford/Marathon/Engga/XingNuo.
3. Anti vibration suspension absorber, Digital control panel, industry muffler, high strength steel frame.
4. Strictly tested before delivery.
5. Advantages for low gas consumption, stable performance, easy maintenance, low operation cost and low emission
Detailed description about Natural gas genset 380kVA
Engine, Alternator, Control system are the most important parts for a genset, below
you can check the details:
1> Engine
Engine brand | Supermaly |
Engine Model | BF8M1015GCP |
Rated power(kW) | 340 |
Fuel consumption(nM3/kWh) | 0.33 |
Cylinder arrangement | 6L |
Displacement(L) | 14.5 |
Cooling method | water cooled |
Inspiration | Turbocharged, inter cooled |
Rotating speed(rpm) | 1500 |
Governor | Electrical |
Ambient temperature | -10 to 40 degrees Celsius |
Starting method | 24V DC |
2> Alternator
Alternator brand | Stamford |
Alternator Model | HCI444FS |
Rated power(kW/kVA) | 304/380 |
Type | brushless, self excited |
Frequency(Hz) | 50 |
Regulator | AVR |
Steady frequency change | 0-5% |
No load voltage | 95-105% |
Steady voltage | ≤±1% |
3> Control panel
Control unit brand | Deepsea/ComAp/Harsen/Smartgen |
Controller Model | ComAp MRS16 |
Language | English/Chinese |
LCD warming and timer display | yes |
AMF | no |
Communication interface | RS485/232 |
Engine and Alternator data display | yes |
Over speed protection | yes |
High water temperature protection | yes |
Over current protection | yes |
Low oil pressure protection | yes |
Installlation position | to the alternator's side |
Packaging&Shipping, Supply scope of Natural gas genset 380kVA
1)Packaging&shipping:
Packed with wrapped film or polywood box;
When we finished the test of Gas generator,our transporation department then will take charge
of sending the generator to the container at port of loading,with help of our excellent forwarder,
we send our generators to our customers successfully without any damage.
2)Standard supply scope:
Generator set included: Gas Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame .
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
As a more than 10 years generator supplier, we have advantages as follow:
1) Professional gas generator manufacturer, not trader.
2) Decades’ years of manufacturing and exporting experience.
3) Adopt International quality standards, to meet high quality requirement.
4) Good reputation for Reliable quality & Reasonable price.
5) Strong technical support.
6) Advanced production line with skilled workers.
We have built cooperation with world famous engine maker and alternator makers:
We attend famous trade shows every year:
Some generators for your reference:
Our services about
1) Warranty
Guarantee for one year or 1500 hours whichever reach first from ex-factory date.
During the guarantee period, we will provide the free easy-damageable
spare parts of engine caused by our quality of production or raw material.
After expiration, we provides cost spare parts maintenance of gensets
2) OEM Service
We can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customers requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to
customer requirement.
4. Full warranty cover to support customers.
