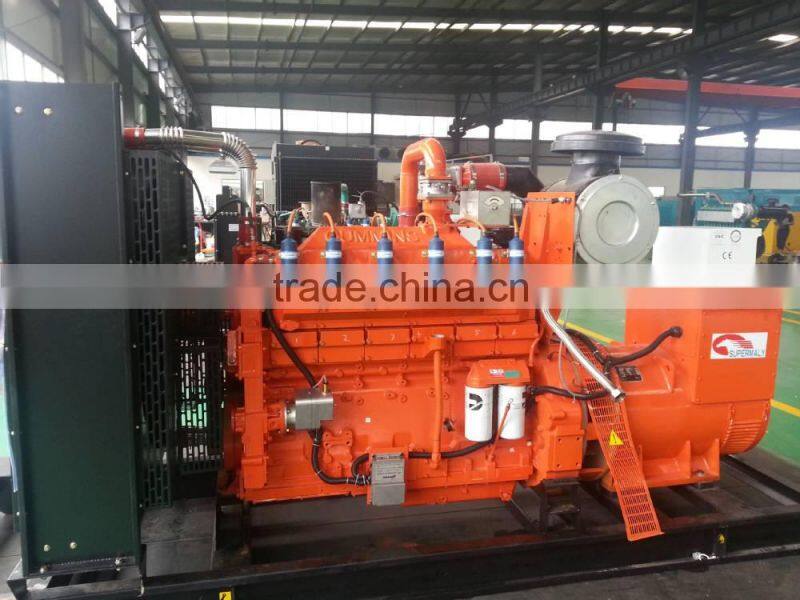

400kVA natural gas generator by famous engine
General features of 400kVA natural gas generator:
1) Our engineer will install the nature gas generator on your site
2) Gas consumption: less than 0.28cbm/kWh
3) We supply you spare parts during the whole service life.
4) Nature gas generator powered by famous &good quality engine and alternator, such as Cummins, Deutz.
5) Nature gas generator with longer life: nature gas engine has a life of over several years if it is properly operated and maintained
6) Low operation cost of nature gas generator: nature gas has a rich reserve with low cost and a high rate of return
7) High profit of nature gas generator: low operation&maintenance cost, supply of electricity and thermal power at the same time.
8) Nature gas generator coupled with brushless alternators .
9) Well performed control system, high quality monitor instrument, with sound and light alarm devices, auto shutdown when main power on, auto start when main power off.
10) Protection function: over-current, under-voltage, auto-regulate voltage, reverse power
11) Monitor function: speed, water temperature, lub-oil temperature, lube-oil pressure, exhaust temperature
12) Supply connection: 3 phase, 4 lines
14) Rated frequency: 50Hz / 60Hz
15) Rated power factor: 0.8
16) Exciting way: brushless
17) Starting mode: 24V DC electric starting system
18) Cooling mode: closed-circuit cooling system
Parameters of 400kVA natural gas generator:
Advertised Voltage: 400/230V, 220/127V,440/254V, 480/277V, etc |
Frequency: 50Hz/ 60Hz Speed: 1500r.p.m / 1800 r.p.m |
Power Factor: 0.8(lagging) |
Protection Standard: IP23 |
Model of Connection: 3 phase 4 lines /1 phase |
Insulation Grade: H |
Frequency Drop(%): ≤ 0.5 |
Transient state frequency deviation(%):(advertised power ) +10~-7 |
Frequency Recovery Time(S): ≤ 3 |
Voltage Recovery Time(S): ≤4 |
Waveform Distortion(%): ≤5 |
Engine brand | Supermaly |
Engine Model | SPT-K19 |
Rated power(kW) | 360 |
Fuel consumption(nm3/kWh) | 0.36 |
Cylinder arrangement | 6L |
Displacement(L) | 19 |
Cooling method | water cooled |
Inspiration | Turbocharged, inter cooled |
Rotating speed(rpm) | 1500 |
Governor | Electrical |
Ambient temperature | -10 to 40 degrees Celsius |
Starting method | 24V DC |
Alternator brand | XingNuo |
Alternator Model | XN4FG |
Rated power(kVA) | 400 |
Type | brushless, self excited |
Frequency(Hz) | 50 |
Regulator | AVR |
Steady frequency change | 0-5% |
No load voltage | 95-105% |
Steady voltage | ≤±1% |
Pictures of 400kVA natural gas generator:
Warranty of 400kVA natural gas generator:
Guarantee for one year or 1500 hours whichever reach first from ex-factory date.
During the guarantee period, we will provide the free easy-damageable
spare parts of diesel engine caused by our quality of production or raw material.
After expiration, we provides cost spare parts maintenance of gensets
OEM services of 400kVA natural gas generator:
We can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customers requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to
customer requirement.
4. Full warranty cover to support customers
FAQ:
1. What is your warranty period?
--1 year or 1500 running hours as standard warranty.
2. Does your generator have global warranty?
--Yes, most of our products like Cummins, Perkins, Doosan, Yuchai, Deutz, Volvo power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
3. Can you accept OEM?
--Yes.
4. What is your payment terms?
--We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
5. What is your delivery time?
--Our normal delivery time is 15-20 days. But if your order is some special engine and alternator, then the delivery time is longer.
