200kw natural gas generator from supermaly power gold supplier

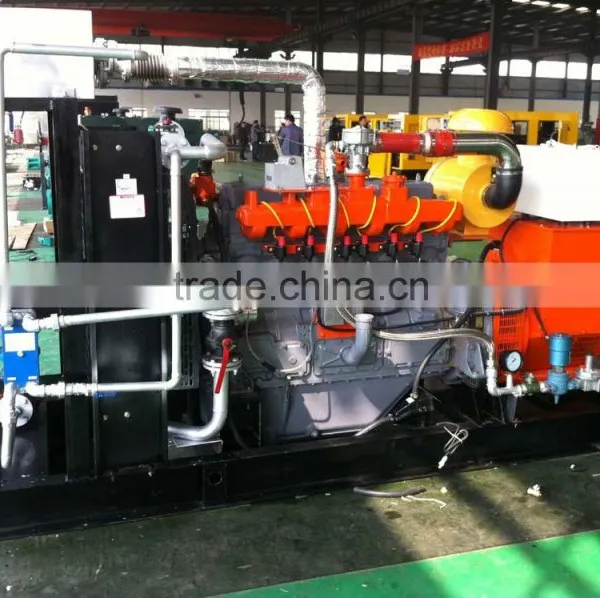

200kw Natural gas generator

SPT200GF

Rated Frequency

50HZ/60HZ

Rated Voltage

220/240/380/400/415/480, 3 phases 4 Wires

Power Factor (Cosφ)

0.8

Genset Rated Power

200/250

(kW/kVa)

Suggested Continuous Power

160~180

(24 working hours per day, kW)

Engine Model

NTAA855-G

No. of Cylinders and Type

6 in Line

Bore*Stroke (mm)

140*152

Displacement (L)

14

Electrical Efficiency

36%

Rotation Speed (RPM)

1500 (50HZ)/1800 (60HZ)

Applicable Fuel

Natural Gas, CNG, PNG, LNG, Shale Gas, Oil field gas, Marsh Gas, Coalmine Gas and other methane gases

Gas Consumption (m3/kw.h)

0.25~0.3

Alternator Model

Leroy Somer LSA Series, Siemens IFC Series or Equal

Cooling System

Radiator

Governor/Actuator

USA Woodward or Equal

Ignition System

USA Altronic or Equal

Mixer

USA Impco or Equal

Control System

Standard Control System: with functions including manual keys, alarms, protections, auto start and shut down, showing running parameters in LCD Display

Sound Level

With Silencer 82db, With soundproof canopy 70db

Genset Overall Size (mm)

2900×1200×1850

Gross Weight (kg)

2200

Optional Equipments

1).Soundproof Canopy, Synchronization Panel, Parallel Panel, Remote Monitoring System.

2). CHP/Heat Recovery System from Exhaust Gas and Jacke Water

3).High Voltage Alternator 6.3KV, 10.5KV and 13.8KV are available as options
