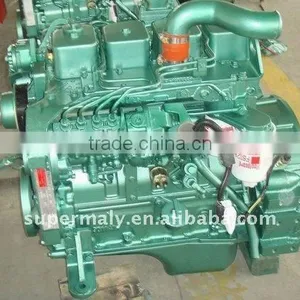

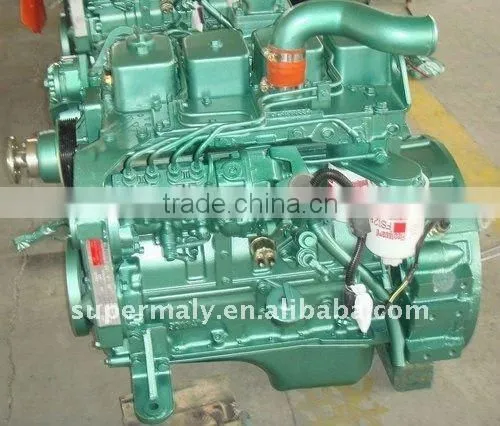

best quality Low fuel consumption yanmar engine

Specifications

1)water cooled yanmar engine
2)AVR alternator
3)8-24 hous base fuel tank
4)low fuel consumption
5)electric governo

The specification of   yanmar engineyanmar engine:



Diesel Generator powered by Cummins diesel engines (32-275KVA; B/C/L series) and  (250-1340KVA; N/M/K series) respectively in China. Equipped with famous alternators (Marathon,Stamford, etc.)and the control units. The Generator set operation with perfect protection units of oil temperature,oil pressure,water temperature,and the speed etc.Highlighted excellent performances such as turbo system, automatic voltage & speed regulation,stable frequency,high efficiency,perfect reliability, and long life for service, etc. We can equip the generator sets with power transfer panel(ATS) also.



General Technical Data:

1. Output range: 18-1000kw prime

2. Frequency: 50 & 60Hz

3. Speed: 1500 or 1800rpm

4. Phase: 3 Phase 4 Wire & 1 Phase 2 Wire

5. Voltage: 220/380V, 230/400V, 240/415V, etc

6. Automatic digital control panel, auto start with AMF function

Genset Features:

1. Cummins industrial diesel engine

2. Radiator 40°C max,fans are driven by belt, with safety guard

3. Leroy Somer, Stamford, Marathon

4. Choice of manual/auto and AMF control panels and protection systems

5. Digital auto-start panel

6. Anti Vibration Suspension Absorber

7. Dry type air filter, fuel filter, oil filter

8. 10-hour operation base tank

9. Mould case circuit breaker

10. 24V DC start motor and storage battery

11. 24V charge alternator

12. 24V batteries, rack and cable

13. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler

14. Comply with ISO and CE standards.

15. All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)



diesel genset			diesel engine		alternator
model	power(kW)	power(kVA)	model	power(kW)	model	power(kW)
SC22GF	17.6	22	4B3.9-G1	24	PI144D	16
SC28GF	22	27.5	4B3.9-G1	24	PI144E	20
SC31GF	24.2	30.25	4B3.9-G1	24	PI144F	22
SC33GF	26.4	33	4BT3.9-G1	36	PI144G	24
SC39GF	30.8	38.5	4BT3.9-G1	36	PI144H	28
SC44GF	35.2	44	4BT3.9-G1	36	PI144J	32
SC47GF	37.4	46.75	4BT3.9-G1	36	PI144K	34
SC55GF	44	55	4BTA3.9-G2	50	UCI 224D	40
SC66GF	52.8	66	4BTA3.9-G2	50	UCI 224E	48
SC80GF	63.8	79.75	6BT5.9-G1	92	UCI 224F	58
SC94GF	74.8	93.5	6BT5.9-G1	92	UCI 224G	68
SC110GF	88	110	6BT5.9-G1	92	UCI 274C	80
SC132GF	105.6	132	6BTA5.9-G2	110	UCI 274D	96
SC154GF	123.2	154	6BTAA5.9-G2	120	UCI 274E	112
SC176GF	140.8	176	6CTA8.3-G2	163	UCI 274F	128
SC198GF	158.4	198	6CTA8.3-G2	163	UCI 274G	144
SC220GF	176	220	6CTAA8.3-G2	183	UCI 274H	160
SC253GF	202.4	253	6LTAA8.9-G2	220	UCI 274J	184
SC275GF	220	275	6LTAA8.9-G2	220	UCI 274K	200
SC330GF	264	330	NTA855-G1A	261	HCI 444D	240
SC358GF	286	357.5	NTA855-G1B	283	HCI444ES	260
SC385GF	308	385	NTA855-G2A	313	HCI 444E	280
SC418GF	334.4	418	NTAA855-G7	343	HCI444FS	304
SC440GF	352	440	NTAA855-G7A	370	HCI444F	320
SC495GF	440	550	KTA19-G3	407	HCI 544C	400
SC550GF	440	550	KTA19-G4	457	HCI 544C	400
SC619GF	495	618.75	KTAA19-G5	470	HCI544D	440
SC688GF	550	687.5	KTAA19-G6A	554	HCI544FS	500
SC825GF	660	825	KTA38-G2	664	LVI634B	600
SC880GF	704	880	KTA38-G2	664	HCI634G	640
SC990GF	792	990	KTA38-G2A	813	HCI634H	752
SC1100GF	880	1100	KTA38-G5	880	HCI634J	824
SC1238GF	990	1237.5	KTA38-G9	990	HCI634K	900
SC1375GF	1100	1375	KTA50-G3	1115	PI734A	1,008
SC1650GF	1320	1650	KTA50-G8	1299	PI734C	1,240



Optional:

1. Trailer type

2. Soundproof / water proof

3. ATS (automatic transfer switch)

4. Parallel system

5. Remote system
