Water Cooled 3000rpm Diesel Engine for Fighting Pump
US$ 700 - 100,000
/ Set
1 Set(Min. Order)
- Qingdao port
- T/T
You May Like
Product Details
| Condition | New | Usage | Other, pump,generator,machine etc | |
| Fuel | Diesel | Stroke | 4 Stroke | |
| Cylinder | Multi-cylinder | Cold Style | Other, Water-cooled | |
| Start | Electric Start | Place of Origin | Shandong, China | |
| Brand Name | supermaly | Model Number | SP10-SP300 | |
| Dimension(L*W*H) | 1000*600*840MM | Weight | 450KG | |
| Certification | CE,ISO,EPA etc | Warranty | 1 year or 1500 running hours | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
water cooled 3000rpm diesel engine for fighting pump
Product Description
Specifications of the diesel engine:
| ENGINE MODEL | R4105ZD | R6105ZD | R6105AZLD | |
| TYPE | IN-LINE,WATER COOLED,4-STROKE,DIRECT INJECTION | IN-LINE,WATER COOLED,4-STROKE,DIRECT INJECTION | ||
| RATED OUTPUT (kW/kVA) | 56/70 | 90/112.5 | 110/137 | |
| STANDBY OUTPUT (kW/kVA) | 61.6/77 | 101/126.25 | 121/151 | |
| ASPIRATION | TURBOCHARGED | TURBOCHARGED | TURBOCHARGED INTERCOOLED | |
| NO OF CYL | 4 | 6 | 6 | |
| BORE(mm) X STROKE(mm) | 105X125 | 105X125 | 105X125 | |
| DISPLACEMENT(Liters) | 4.33 | 6.49 | 6.49 | |
| COMPRESSION | 16:01 | 16:01 | 16:01 | |
| SPEED RATED(r/min) | 1500 | 1500 | 1500 | |
| GOVERNOR | MECHANICAL OR ELECTRONIC | |||
| STEADY GOVERNING | ≤5%(MECHANICAL);≤1%(ELECTRONIC) | |||
| SPEED REGULATION | ≤0.5%(MECHANICAL)≤0.25%(ELECTRONIC) | |||
| FUEL CONSUMPTION(g/kw.h) | 231 | 231 | 224 | |
| OIL CONSUMPTION(g/kw.h) | ≤1.63 | ≤1.63 | ≤1.63 | |
| OIL SUMP(L) | 13 | 16 | 16 | |
| MEAN EFFECTIVE(kpa) | 1034 | 1035 | 1350 | |
| EXHAUST GAS TEMPERATURE (°C) | ≤600 | ≤600 | ≤600 | |
| EXHAUST GAS(m3/h) | 838 | 1110 | 1218 | |
| EXHAUST GAS BACK PRESSURE MAX PERMISSIBLE (kpa) | 7 | 7 | 6.5 | |
| COOLING AIR REGUIREMENTS FOR FAN-COOLED RADIATOR(m3/h) | 5100 | 10800 | 10800 | |
| AIR FOR COMBUSTION(m3/h) | 286 | 396 | 402 | |
| COOLING WATER(L) | 16 | 23 | 23 | |
| POWER INPUT FOR FAN(kw) | 2 | 2.6 | 3.6 | |
| STARTER MOTOR | 12V3.7KW | 24V5.2KW | 24V5.2KW | |
| CHARGING ALTERNATOR | 14V50A | 28V12.5A | 28V12.5A | |
| FLYWHEEL # | SAE3# | |||
| FLYWHEEL MEASUREMENT | SAE3#---11.5 | |||
| FIRING ORDER | 1-3-4-2 | 1-5-3-6-2-4 | 1-5-3-6-2-4 | |
| NET WEIGHT(kg) | 435 | 580 | 680 | |
| DIMENSION(mm) | (L) | 930 | 1167 | 1265 |
| (W) | 619 | 619 | 762 | |
| (H) | 1118 | 1118 | 1274 | |

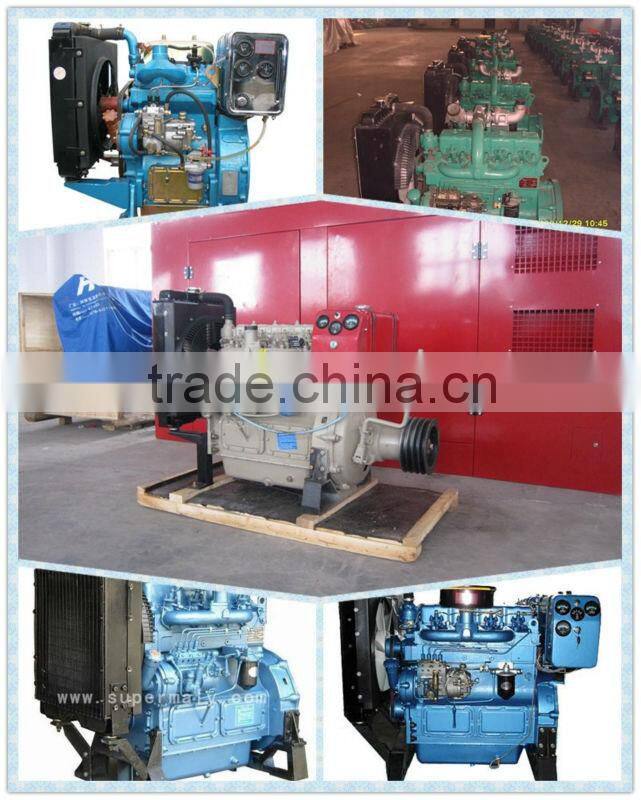

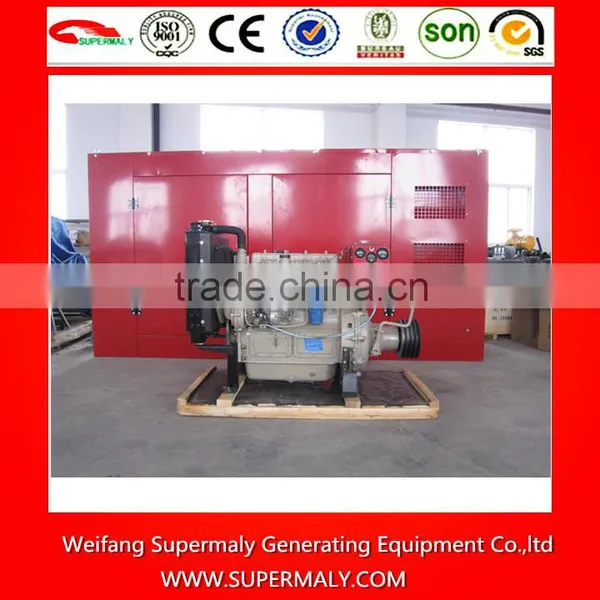

Photo of diesel engine:
