Natural gas generator feature, specification, price and photos.
1. Natural gas generator feature
1) Our engineer will install the natural gas generator on your site.
2) Natural gas generator gas consumption: less than 0.28cbm/kWh
3) We supply you spare parts during the whole service life.
4) natural gas generator powered by famous and good quality gas engine such as Cummins engine, Deutz engine, Steyr engine, or China engine. and alternator by Stamford, Leroy Somer, etc.
5) Longer life: natural gas engine has a life of decade years if it is properly operated and maintained
6) Low operation cost: natural gas has a rich reserve with low cost and a high rate of return
7) High profit: low operation and maintenance cost, supply of electricity and thermal power at the same time
8) Natural gas generator coupled with brushless alternators of Leroy Somer / Engga
9) Well performed control system, high quality monitor instrument, with sound and light alarm devices
10) Protection function: over-current, under-voltage, auto-regulate voltage, reverse power
11) Monitor function: speed, water temperature, lub-oil temperature, lub-oil pressure, exhaust temperature
13) Supply connection: 3 phase, 4 lines
14) Rated frequency: 50Hz / 60Hz
15) Rated power factor: 0.8
16) Exciting way: brushless
17) Starting mode: 24V DC electric starting system
18) Cooling mode: closed-circuit cooling system

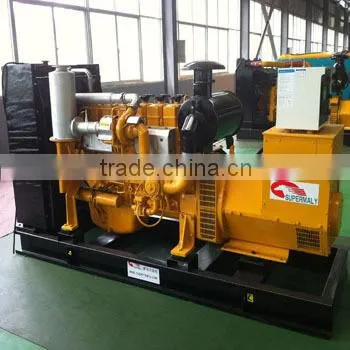

Photo of natural gas generator
2. Natural gas generator specification
| Natural gas generator set | Gas-Engine | Alternator | Overall Size (mm) | Net Weight (kg) | ||
| Model | Rated Power (kW/kVA) | Rated Current (A) | Model | Model | ||
| SPT10GF | 10/12.5 | 18 | SP2100DT | 164C | 1600X650X1250 | 470 |
| SPT20GF | 20/25 | 36 | SP4100DT | 184EF | 2000X730X1320 | 620 |
| SPT30GF | 30/37.5 | 54 | SP4105DT | 184H | 2100X730X1320 | 760 |
| SPT40GF | 40/50 | 72 | SP6105DT | 224D | 2480X800X1320 | 1200 |
| SPT50GF | 50/62.5 | 90 | SP6105DT | 224E | 2500X800X1320 | 1250 |
| SPT70GF | 70/87.5 | 126 | SP6135DT | 224G | 2550X1010X1430 | 2410 |
| SPT90GF | 90/112.5 | 162 | SP6135ADT | 274D | 2550X1010X1470 | 2530 |
| SPT120GF | 120/150 | 216 | SP6140ADT | 274F | 2700X1010X1470 | 2600 |
| SPT160GF | 160/200 | 288 | SP12V135DT | 274H | 3060X1350X1790 | 3200 |
| SPT200GF | 200/250 | 360 | SP12V138DT | 4C | 3060X1350X1790 | 3300 |
| SPT400GF | 400/500 | 720 | SP12V190DT | 5D | 4600X2040X2210 | 10700 |
| SPT500GF | 500/625 | 900 | SP12V190ZDT | 5FS | 4820X2040X2780 | 12000 |
| SPT700GF | 700/875 | 1260 | SPG12V190ZLDT | 6D | 5120X2040X2250 | 11800 |
| SPT800GF | 800/1000 | 1440 | SPA12V190ZLDT | 6E | 6190*2110*2800 | 12000 |
| SPT1000GF | 1000/1250 | 1800 | SPAD12V192ZLT2 | 6G | 6710*2950*3000 | 32000 |
|
|
3. Natural gas generator on site
Packing and delivery of natural gas generator
After sales promise for natural gas generator
1. Since the natural gas generator reached the agreed destination, its main parts will be guaranteed
within 12 months or 1500 hours.
2. We give technical guide all the service life. In the warranty days, we send spare parts for free. After warranty, we take the spare parts cost.
3. Daily consumed components, wrong operating, lack of maintenance are not included in the quality guarantee.
4. We can go to the user place and install the natural gas generator on the site.
We supply spare parts during the whole service life, generally the spare parts will be provide within 3 working days. And we will give technical guide within 2hrs after your feedback.
Our factory: 35000 square meters
Test before delivery for natural gas generator
FAQ:
1. The gas comsumption: 0.3Nm³/kw.h
2. We need to know the exact gas pressure. We can equip the right gas adjusting valve on the genset. So the gas pressure must be right.
3. Pls let us know will you use it as main power or standby power, then we can suggest the suitable engine.
