1. 250kw gas generator feature
1) 250kw gas generator with fuel: natural gas, biogas, dual fuel(natural gas-diesel)
2) Our engineer will install 250kw gas generator on your site.
3) We supply you spare parts during the whole service life.
4) 250kw gas generator powered by famous and good quality gas engine and alternator
5) 250kw gas generator with longer life: it adopt Cummins engine, Deutz engine, or China realiable engine.
6) 250kw gas generator with low operation cost: natural gas has a rich reserve with low cost and a high rate of return
7) High profit: low operation cost, supply of electricity and thermal power at the same time, low maintenance cost
8) 250kw gas generator coupled with brushless alternators of Leroy Somer / Engga
9) 250kw gas generator with well performed control system, high quality monitor instrument, with sound and light alarm devices, auto shutdown
10) 250kw gas generator control panel with protection function: over-current, under-voltage, auto-regulate voltage, reverse power
11) 250kw gas generator control panel with monitor function: speed, water temperature, lube-oil temperature, lube-oil pressure, exhaust temperature
12) 250kw gas generator gas consumption: less than 0.33cbm/kWh
13) Supply connection: 3 phase, 4 lines
14) Rated frequency: 50Hz / 60Hz
15) Rated power factor: 0.8
16) Exciting way: brushless
17) Starting mode: 24V DC electric starting system
18) Cooling mode: closed-circuit cooling system
2. 250KW gas generator specification
| 250kw Natural gas Generator | |||
| Genset Model | Open Type | SPT250GF | |
| Prime Power (kW) | 250 | ||
| Standby Power (kW) | 275 | ||
| Rated current (A) | 450 | ||
| Overall Size(mm) | Length(mm) | 3220 | |
| Width(mm) | 1480 | ||
| Height(mm) | 1950 | ||
| Gross Weight(kg) | 3300 | ||
| Gas Engine | Model | SP12V138ZLDT | |
| Type | water-cooled, 4-stroke, spark plug ignition | ||
| Rated Power(kW) | 280 | ||
| Intake Type | Turbocharged intercooling | ||
| No.of Cylinder | 12.V | ||
| Rated speed(RPM) | 1500 | ||
| Bore x Stroke(mm) | 138*160 | ||
| Displacement (L) | 14.5 | ||
| Lub oil Consumption(g/kw.h) | ≤1.6 | ||
| Gas consumption | 0.3Nm³/kw.h | ||
| Starting method | DC 24V Electric starter | ||
| Governing Type | Electric governor | ||
| Alternator | Model | 4ES | |
| Brand | Stamford technology alternator | ||
| Rated Power(kW) | 250 | ||
| Power Efficiency | 92.90% | ||
| Voltage Regulation | automatic | ||
| Excitation Type | Brushless | ||
| Insulation Class | H | ||
250kw gas generator Supply scope:
a) gas engine with all accessories, 2 filters, electric systems, ignition system
b) Alternator
c) Steel structure
d) Fan and water tank cooling system
e) Flange connector
f) 24V starting motor and charge dynamo
g) Air filter, oil filter
h) On-board control panel
i) MCCB air conservation switch
j) Battery and battery connecting wire
k) Set shock absorber
l) High-efficient silencer
m)magnetic valve, back-fire relief valve, gas reducing valve, etc

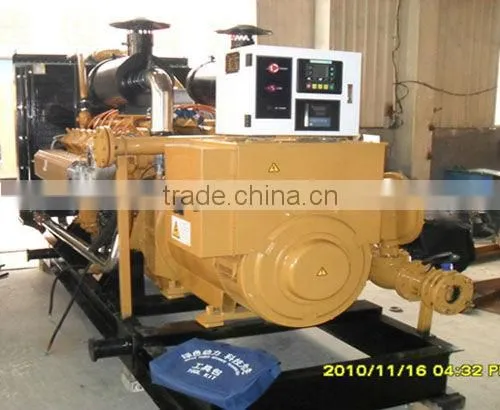

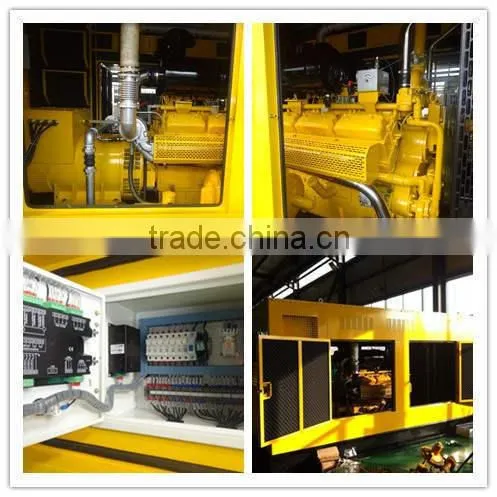

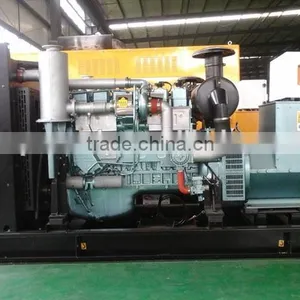

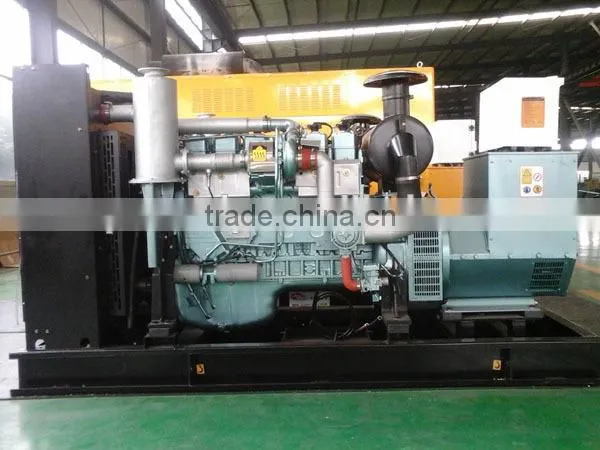

3.250kw gas generator photos
|
|
|
|
|
|
250KW gas generator certificate
Packing and delivery of 250kw gas generator
our factory
