Specifications

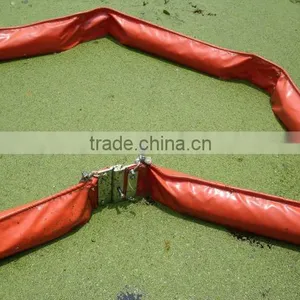

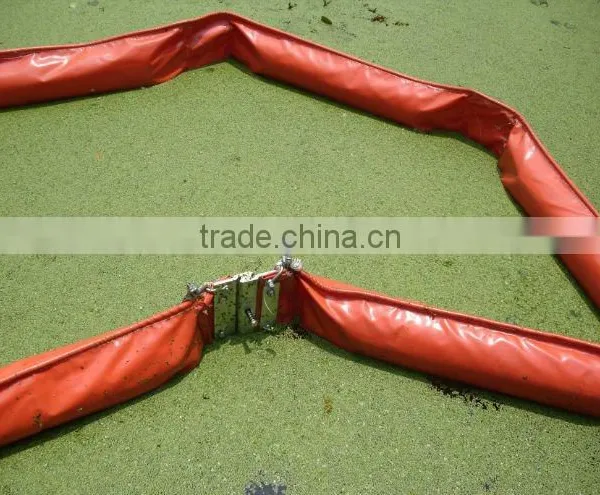

1. it is an important equipment for spill and other floaters on water;2. prevent oil from spreading
3 can be reuesd
It has been widely used on rivers,harbors,lakes,offshore oil platfrms and other waters due to its quick deployment and convenient operation.
Features
- Fabricated with double-sided bright-colored high-strength PVC cloth with good resistance to oil,sunlight and a long service time.
-Pulling cable,strengthening ribbons and tensile ballast chain on the upper,middle and lower parts of each boom body used as longitudinal structural elements to withstand forces,thus increasing its tensile strength.
- Smooth external surface,good for oil guiding and cleaning.
-Solid floats with greater reserve of buoyancy,good wave riding,vertical stability and oil retention ability.
Item |
WGV600 |
WGV700 |
WGV800 |
WGV900 |
WGV1000 |
WGV1100 |
Overall Height (mm) |
600 |
700 |
800 |
900 |
1000 |
1100 |
Freeboard (mm) |
180 |
260 |
250 |
330 |
325 |
320 |
Draft (mm) |
320 |
400 |
410 |
540 |
650 |
770 |
Standard Section Length (m) |
20,15,10 |
|||||
Max. Tensile Strength (KN) |
20 |
40 |
55 |
65 |
75 |
85 |
Weight (kg/m) |
3.7 |
6.2 |
7.1 |
8.4 |
9.3 |
9.5 |
Buoyancy to Weight Ratio |
3.9 |
5.6 |
4.9 |
6.2 |
5.6 |
5.5 |
Efficient in Wave up to (m) |
0.5 |
1 |
1.5 |
1.8 |
2 |
2 |
Survival Condition (m/s) |
10 |
15 |
15 |
18 |
18 |
20 |
Stable in Current up to (Kn) |
1 |
1.5 |
2 |
2 |
2.5 |
2.5 |
20m Packing Size (m) |
1×1×0.6 |
12×1×1 |
1.3×1.1×1.1 |
1.4×1.5×1.2 |
1.4×1.6×1.3 |
1.4×1.7×1.4 |
