250KVA silent type diesel generaotr with Deutz,Ricardo ,Lovol engine ... features
l Engine(Ricardo/Cummines brand/yuchai/weichai/Pekins engine and ect.)
l Radiator 40°C max, fans are driven by belt ,with safety guard
l 24V charge alternator
l Alternator (STAMFORD), single bearing alternator IP23, insulation class H/H
l Absorber
l Dry type air filter ,fuel filter ,oil filter, coolant filter
l Main line circuit breaker
l Standard control panel
l Two 24V batteries, rack and cable
l Ripple flex exhaust pipe, exhaust siphone, flange, muffler.
User manual
ENGINE DATA |
Manufacturer /Model: Ricardo /Cummins brand/weichai/yuchai and ect.
Air intake System:Turbocharged
Fuel System : A type fuel Pump
Cylinder Arrangement: 6 in LINE
Bore and Stroke: 126*130 (MM)
Compression Ratio: 15:1
Rated RPM: 1500rpm
Max standby Power at Rated RPM:235KW
Governor Type: electric
Frequency Regulation ,Steady State : <±0.5%
GENERATING SET DATA |
Voltage Regulation: ³±5%
Voltage Regulation, Stead State: £±1%
Sudden Voltage Warp (100% Sudden Reduce) : £+25%
Sudden Voltage Warp (sudden Increase): £-20%
Voltage Stable Time (100% sudden Reduce): £6s
Voltage Stable Time (Sudden Increase): £6s
Frequency Reduce: £5% adjustable
Frequency Regulation, Stead State:£1.5%
Frequency waving: £0.8 %
Sudden Frequency Warp (100% Sudden Reduce) : £+12%
Sudden Frequency Warp (Sudden Increase): £-10%
Frequency Recovery Time (100% sudden Reduce): £5s
Frequency Recovery Time (Sudden Increase): £5s

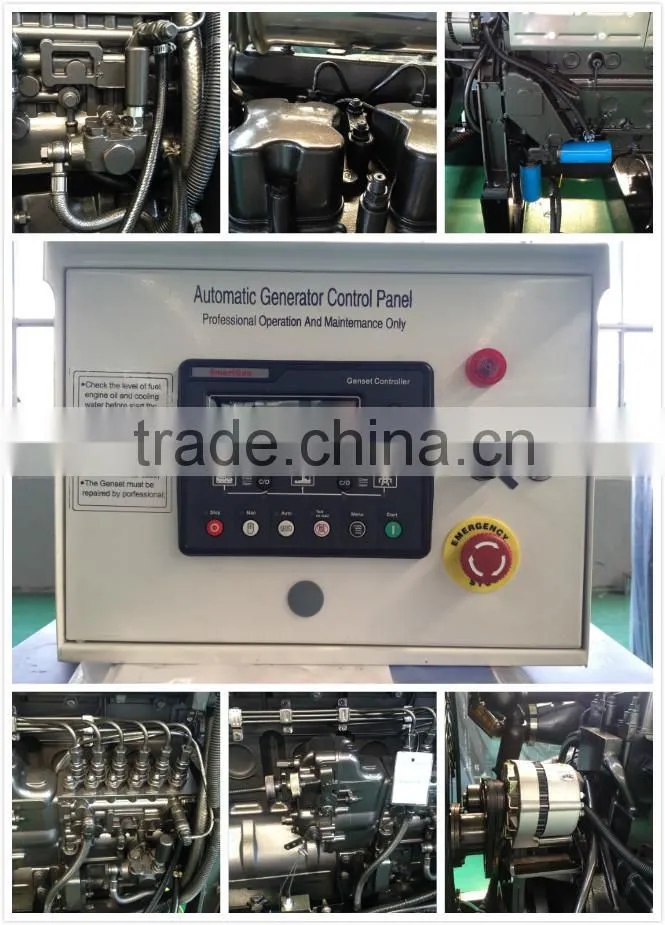

250KVA silent type diesel generaotr with Deutz,Ricardo ,Lovol engine ... Control panel
a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
Supply standard collocation of 250KVA silent type diesel generaotr with Deutz,Ricardo ,Lovol engine ...
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank cooling system
e) Flange connector
f) 12 / 24V starting motor and charge dynamo
g) Air filter, fuel filter, oil filter
h) On-board control panel
i) MCCB air conservation switch
j) Battery and battery line
k) Set shock absorber
l) High-efficient silencer
INTRODUCTION of 250KVA silent type diesel generaotr with Deutz,Ricardo ,Lovol engine ...
This series diesel generator set is powered by Ricardo series diesel engine .With the importing of technology of Ricardo Company(U.K).The engine has the feature of low fuel consumption,good power performance,safety and good reliability.This series generator set is widely used as prime or standby power supply in fieldwork,huilding,supermarket,industrial and mining factory,oil field,highway,harbour countryside and so on.
Our advantage
1. Professional diesel generator set manufacturer, not trader
2. Decades’ years of manufacturing and exporting experience
3. Adopt International quality standards, to meet high quality requirement
4. Good reputation for Reliable quality & Reasonable price
5. Strong technical support
6. Advanced production line with skilled workers
After sale promise
1. Since cummins (engine) generator set reached the agreed destination, its main parts will be guaranteed within 12 months or 1500 hours.
2. We give technical guide all the service life. In the warranty days, we send spare parts for free. After warranty, we take the spare parts cost.
3. Daily consumed components, wrong operating, lack of maintenance are not include in the quality guarantee.
