Home > Instruments & Meters > Meter for Electricity > Voltage Meter > CV58D Mini 2-Wire Blue LCD Display LED Backlight DC3.5~30V Digital Voltage Meter

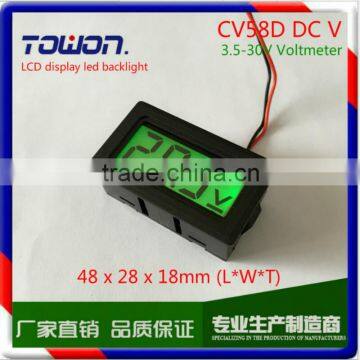

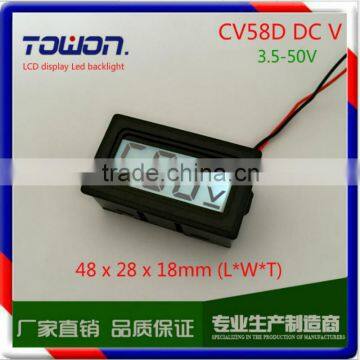

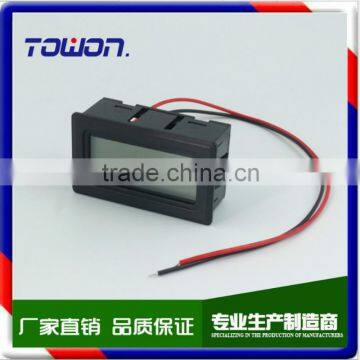

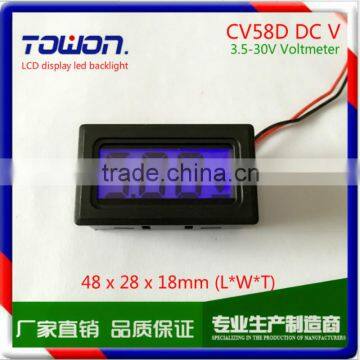

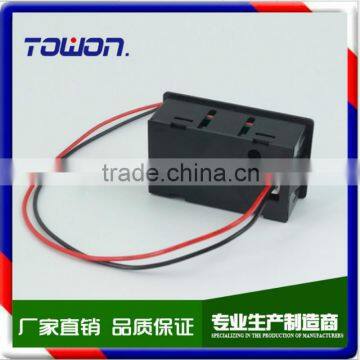

CV58D Mini 2-Wire Blue LCD Display LED Backlight DC3.5~30V Digital Voltage Meter
US$ 3.00 - 3.00
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TOWON
Model Number:
CV58D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
V38D 0.36" Mini Digital DC Voltmeter DC 0-100V Digital LED Voltmeter Red Green and Blue AvailableUS$ 1.50 - 1.50MOQ: 100 Pieces -
V38D 0.36" Digital DC Voltmeter DC 2.5-30V Digital LED Voltage Meter Red Green BlueDigital Car 12V 24V Voltmeter Measure VoltageUS$ 1.50 - 1.50MOQ: 100 Pieces
-
V42D Voltmeter DC 1.7-25V 3 Digits Red Green Blue LED Digital VoltmeterUS$ 3.00 - 3.00MOQ: 100 Pieces
-
0-50A DC Ammeter With Shunt Resistor Mini Panel Amp Meters Red/Blue/Green LEDUS$ 4.00 - 4.00MOQ: 100 Pieces
-
LED DC0-100A Digital Panel Ammeter AMP Ampere Meter With 100A/75mV ShuntUS$ 5.00 - 5.00MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
TOWON
Model Number
CV58D
Display Type
Digital Only
Measuring Range
3.5-30V
Accuracy Class
1% +1 digit
Operating Temperature
-10~60
Dimensions
48 x 28 x 18mm (L*W*T)
Features:
- The voltmeter uses LCD display, LED backlight, day and night can clearly show, is not afraid of direct sunlight.
- The voltmeter wiring simple, only need to connect two wires,needn't power supply. Within the voltmeter has reversal protection, reverse does not burn.
- The voltage measurement range of 3.5-30V, can be used in motorcycles or cars,monitor battery voltage, grasp the battery status, to avoid over-discharging the battery cause damage.It can also be used for other DC voltage measurement.
- In order to achieve optimum measurement accuracy, this voltmeter to measure the voltage according to different positions automatically move the decimal point. In measuring the voltage below 10V, display two decimal places; in measuring voltage above 10V,display one decimal place.It is able to cater for the needs of users on the measurement accuracy, but also take into account the needs of higher voltage measurement.
Technical Parameters
- Dimensions:48 x 28 x 18mm (L*W*T)
- Cutting Size: 46x26mm
- Measure range: DC3.5~30V (needn't power supply)
- Minimum input: DC3.5V (Below the minimum voltage measurement will cause inaccurate or display)
- Maximum output: DC30V
- Wire length:20CM(two wires)
- Permissible Error: 1% (+ / - 1 Digit),10V or less accurate to 0.01V, 10V more accurate to 0.1V
- Display type: LCD display, LED backlight
- Backlight Color:blue
- Refresh rate: about 200mS/times
- Current consumption: about 5-6mA,less than 10mA
- Supply power:No power required
- Operating temperature: -10 °c ~ 65 °c
