Home > Instruments & Meters > Meter for Electricity > Voltage Meter > CV58D 3-Wire DC0-100V Digital Voltmeter Blue LCD Display LED Backlight Monitor Need DC 3.8-28V Auxiliary Power Supply
CV58D 3-Wire DC0-100V Digital Voltmeter Blue LCD Display LED Backlight Monitor Need DC 3.8-28V Auxiliary Power Supply
US$ 3.00 - 3.00
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TOWON
Model Number:
CV58D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CV58D Mini 2-Wire Blue LCD Display LED Backlight DC3.5~30V Digital Voltage MeterUS$ 3.00 - 3.00MOQ: 100 Pieces -
V38D 0.36" Mini Digital DC Voltmeter DC 0-100V Digital LED Voltmeter Red Green and Blue AvailableUS$ 1.50 - 1.50MOQ: 100 Pieces
-
V38D 0.36" Digital DC Voltmeter DC 2.5-30V Digital LED Voltage Meter Red Green BlueDigital Car 12V 24V Voltmeter Measure VoltageUS$ 1.50 - 1.50MOQ: 100 Pieces
-
V42D Voltmeter DC 1.7-25V 3 Digits Red Green Blue LED Digital VoltmeterUS$ 3.00 - 3.00MOQ: 100 Pieces
-
0-50A DC Ammeter With Shunt Resistor Mini Panel Amp Meters Red/Blue/Green LEDUS$ 4.00 - 4.00MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
TOWON
Model Number
CV58D
Display Type
Digital Only
Measuring Range
0-100V
Accuracy Class
1% (+ / - 1 Digit)
Operating Temperature
-10~60
Dimensions
48 x 28 x 18mm (L*W*T)

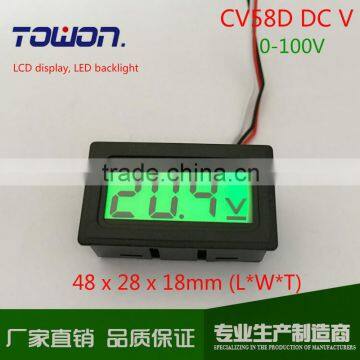

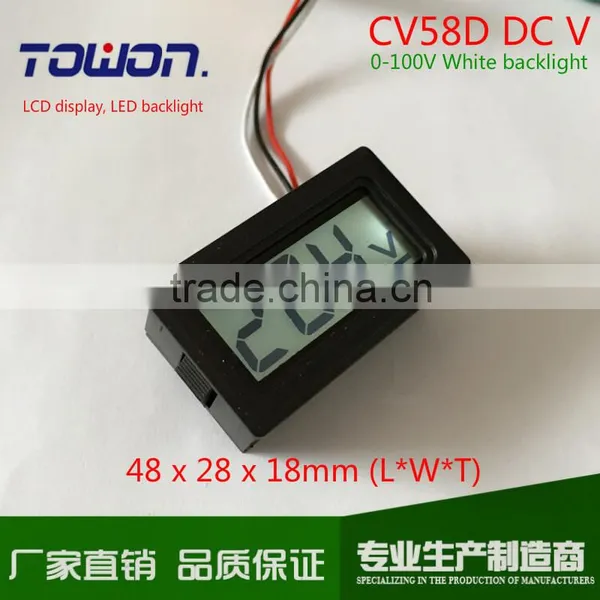

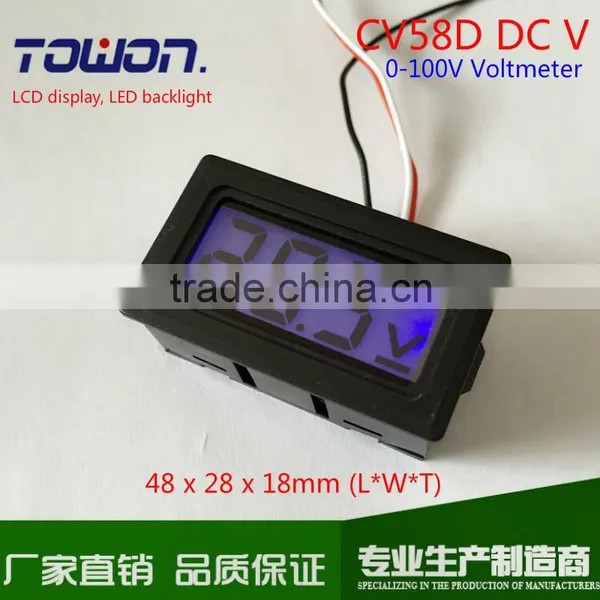

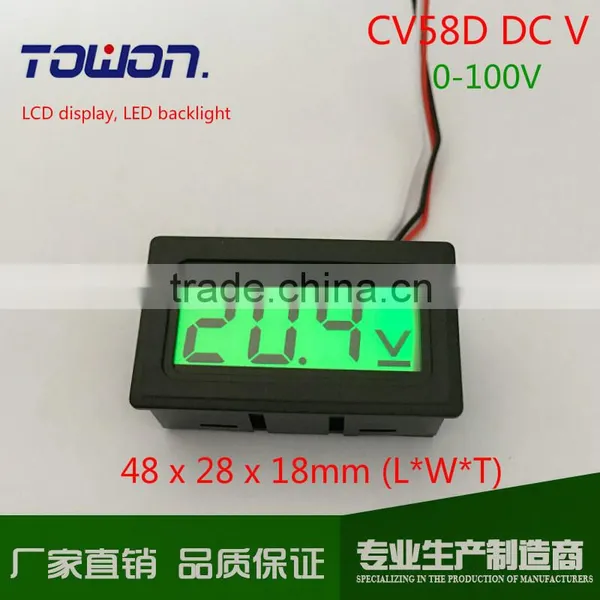

1.The voltmeter uses LCD display, LED backlight, day and night can clearly show, is not afraid of direct sunlight.
2.The voltmeter need auxiliary power to work, the power supply voltage 3.8-28V.
3.The voltmeter resolution 0.1V
Technical Parameters
- Dimensions:48 x 28 x 18mm (L*W*T)
- Cutting Size: 46x26mm
- Measure range: DC0~100V(need power supply)
- Minimum input: DC0V
- Maximum output: DC100V
- Wire length:20CM(three wires)
- Permissible Error: 1% (+ / - 1 Digit)
- Display type: LCD display, LED backlight
- Backlight Color:blue
- Refresh rate: about 200mS/times
- Supply power:DC3.8-28V
- Current consumption: about 5-6mA,less then 10mA
- Supply power:No power required
- Operating temperature: -10 °c ~ 65 °c
Connection:
- Red wire(power supply positive):3.8-28V
- White wire(measurement positive): 0-100V
- Black wire(common negative)
Note:The back of voltmeter can be error correction.
