Cartridge Filter / Melt Blown Cartridge Filter (factory)

Cartridge Filter / Melt Blown Cartridge Filter (factory) thumbnail-1
Cartridge Filter / Melt Blown Cartridge Filter (factory) thumbnail-2
Cartridge Filter / Melt Blown Cartridge Filter (factory) thumbnail-3
Cartridge Filter / Melt Blown Cartridge Filter (factory) photo-1
Cartridge Filter / Melt Blown Cartridge Filter (factory) photo-2
Cartridge Filter / Melt Blown Cartridge Filter (factory) photo-3
US$ 0.5 - 0.51 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
chiro-cartridge filter
Model Number:
cartridge filter-001
Contact Supplier Request Quote Chat Now
Anhui Chiro Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
wuhu shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Brand Name chiro-cartridge filter
Model Number cartridge filter-001

cartridge filter



Product Description

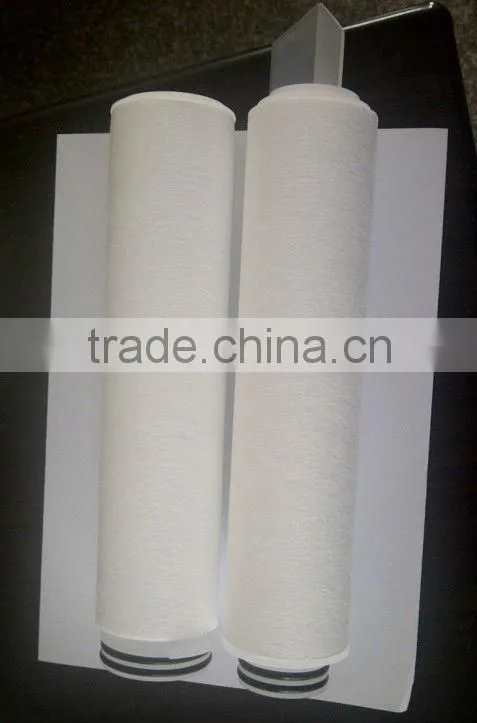

cartridge filter / melt blown cartridge filter are made of 100% polypropylene without any glue particals.

It has depth construction with three layers from inner to outer,depth filtration inside,coarse fiber in the middle,and fine fiber in the surface.The cartridge has high capacity of dirt,low pressure drop,high flow rate,good chemical resistance.It can reduce the suspended substance,particals and rust in the water effectively.

 cartridge filter / melt blown cartridge filter (factory)cartridge filter / melt blown cartridge filter (factory)

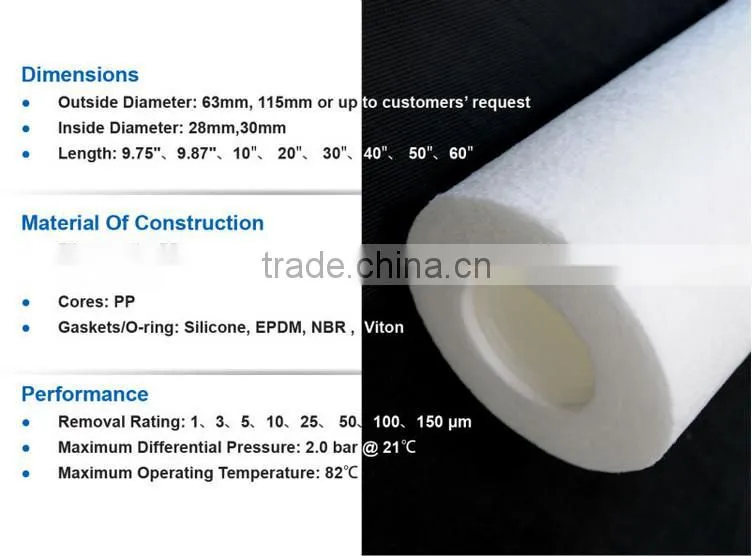

Dimension

PP-10

PP-20

PP-10B

PP-20B

H: 10inch

H: 20inch

H: 10inch

H: 20inch

ID:28mm

ID:28mm

ID:28mm

ID:28mm

OD:63mm

OD:63mm

OD:114mm

OD:114mm



Filter media:Polypropylene

Filter rate:1um,5um,10um,20um,30um,50um.75um.100um

Length:5",10",20",30",40",or any other size customer need.

Outer/Inner diameter:2.5‘,4.5",28mm,or any other size customer need

Max operating temperature:52C



Properties

Filtration Accuracy
(μm)



Start Pressure(kPa)



Filter out particles



Air flow rate (m3/h)



DOP(0.3μm)
Accuracy%

A,B,C

P

A,B,C

P

1

10.5

18.2

0.5

11.9

8.33

99.9999

2

8.4

13.3

1

13.6

9.01

99.9999

5

5.6

5.6

2.5

22.1

22.1

99.99

7

3.5

3.5

5

34

34

99.99

10

2.1

2.1

7.5

54.4

54.4

99.2

15

1.05

1.05

10

83.3

83.3

88

20

0.7

0.7

12

158.1

158.1

84.8

40

0.35

0.35

20

408

408

48.3

70

<0.35

<0.35

45

964

964

34

90

<0.35

<0.35

60

1428

1428

25







cartridge filter / melt blown cartridge filter (factory)

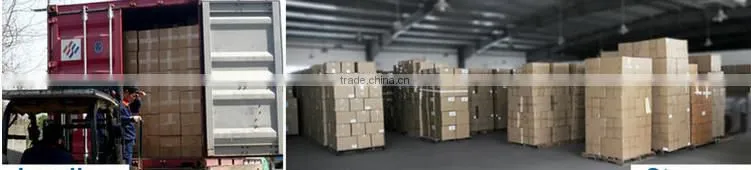

Packaging & Shipping

 box packing



cartridge filter / melt blown cartridge filter (factory)
