Specifications

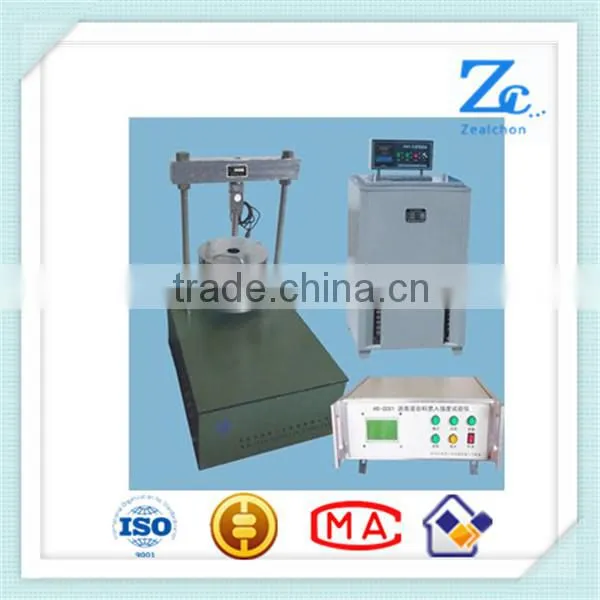

1 Asphalt Binder penetrometer ,Marshall penetromete tester penetromete tester2,maximum shear stress of pavement
It Is used for testing Asphalt Binder at a required temperature, under certain rate and force vertical penetration shear the Marshall compaction specimens to determine the maximum shear stress of asphalt concrete pavement. Equipped with special software, and computer connection can print reports and graphics.
| Technical Parameters | |
| Parameters Name | Details |
| Force sensor | 50kN accuracy of 0.1% FS |
| Test speed | 0 ~ 50mm/min speed can be set |
| Depth of penetration | 0 ~ 30mm stop when reaches a maximum peak force |
| Penetration rod | ¢ 50mm ¢ 30mm |
| Specimen | ¢ 152.4 * 95.3 ¢ 101.6 * 63.5 |
| Flume | diameter ¢ 300mm * depth200mm |
| Controller | setting test number; test speed; restoration, check the parameters and other functions. |
| Size | 380mm * 400mm * 140mm |
| Voltage | 220V 50Hz |
| Instrument Dimensions | Length 600 * W 800 * H 1170mm |
| High and low temperature water bath (optional): |
Temperature range 5 ~ 80 °C Temperature accuracy: ± 0.1 °C |
Xi’an Zealchon Electronic Technology Co.,Ltd adhering to the "professional, honest, and providing the best service" business philosophy, with the guidance of professors and researchers from the Well-known institutions in China, developed a series of leading domestic and international standards, Technology class detecting instrument for asphalt and asphalt mixture, Road, bridge deck, geotechnical, structural, etc and OEM designed 12 series more than 100 kinds of laser products with high power and long service time, some of the productsfilled the domestic and overseas blank of similar products which gained national, ministry, provincial awards.
| Packaging Detail: | This tester is packed by standard wooden case or as you require. |
| Delivery Detail: | 20 days after payment confirmed. |
1. Q: Are you a factory or trading Company?
A: We are a factory; we have manufactured many years.
2. Q: Where is your factory located? How can i visit there?
A: Our factroy is located in Xi’an city, Shaanxi Province, China; our clients are warmly
welcome to visit us no matter where are you from.
