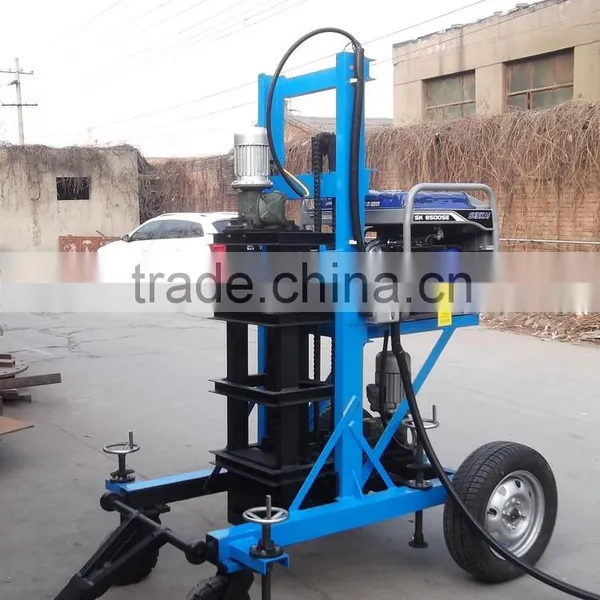

Description:
* This type instrument is measure bearing capacity of various soils.
* Can be working in outdoor any time with strong Power generation.
* Fully automatic operation, convenient and safe!
* English control panel and detail control manual in english.
* Max depth is 20M.
Parameters:

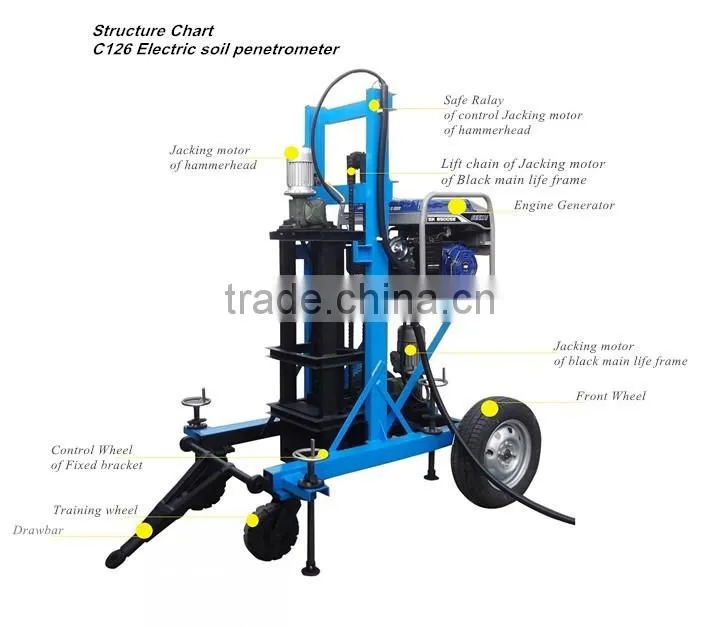

The First parts: main part
* Dimension:1.3 X 2.1 X 2.1 M
* With Motor 7.5KW SENKAI SK850 Suitable for outdoor power generation
* Speed: 15time / Minute ± 2time
* Falling distance of Hummer: 760 mm
* The size of Cone head:30°,60°,90° and 100°
* The diameter of Cone head:74mm
* The power supply:AC 380V (Three phease)
This machine can only pull out one meter at a time of use, if under any circumstances rods in ground exceeded 2 meters, then you will need an external crane, excavator or any other heavy machines to pull the rods out"

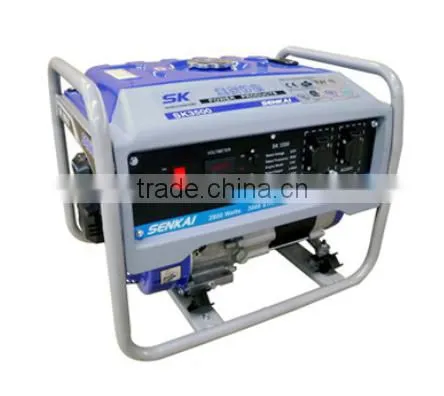

The Second parts:
Electric Generator Brand: SENKAI SK8500 SE
* Rated voltage: AC220V , AC380V
* Rated Power: 7.5 KW (Max: 8 KW)
* Starting mode: Manual start and electric start
* Output volume: 439mL
* Output horsepower: 18HP
* Max Power: 15.0/3600 kw/rpm
* Rated Power: 13.2 /3600 kw/rpm
* Max torque: 28.0/2500 Nm /rpm
* Engine oil capacity: 1.1 L
* Fuel oil capacity: 25 L

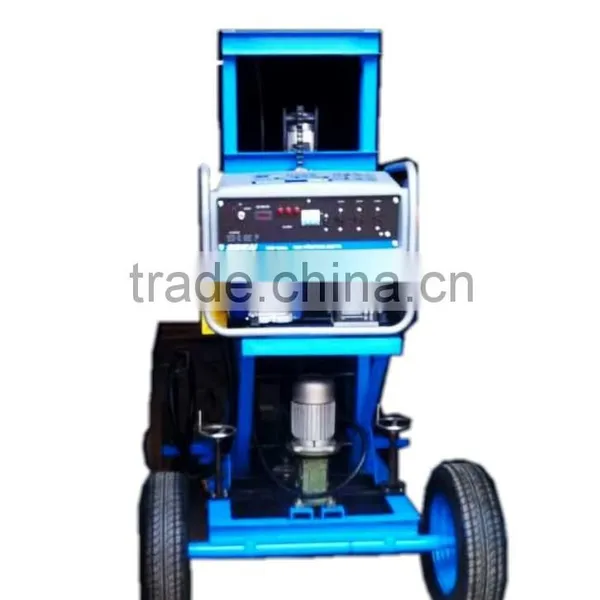

The third parts: C126 Control panel
A indicator light is power supply light of digital count meter
B indicator light is Working indicator light of instrument.
A button is General switch Power supply of instrument.
B button is working button of soil penetrometer (set count).
C button is stop working button of soil penetrometer(set count)
D button is working button of single time of soil penetrometer.

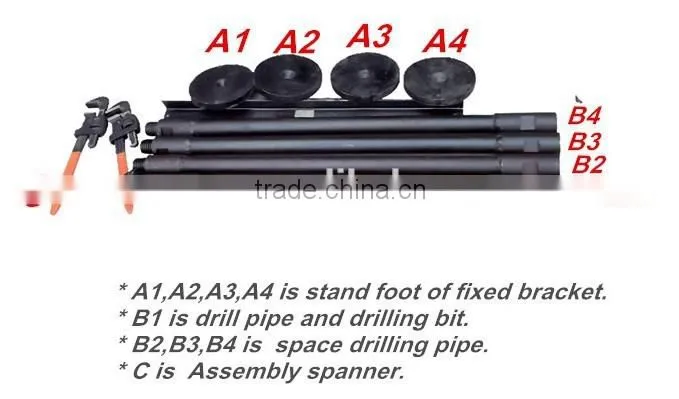

The forth parts: Accessories
* A1,A2,A3,A4 is stand foot of fixed bracket.
Make the equipment can be more stably fixed on the ground.
* B1,B2,B3,B4 is space drilling pipe. Length: 1M / PC.
We are package it by export wooden box.
Delivery date:
We can finish your ordr afte get your payment in 2 weeks.
We are delivery your order by air, by sea. and we have low and fast freigh.
Warranty:
After-sale service, we can supply one year warranty free. and Lifetime guarantee.
Our factory:
Our Lab:
Certification:
