UTP cat5e Network Cable - EC-D21004P013
Specifications | |||
Type | TWISTED PAIR CABLE | Issue No. | 13 |
Date of Issue | 05-06-2011 | Page | 1 |
Standard | Application |
ISO/IEC 11801-2Ed | 10/100BASE(TIEEE 802.3) |
ANSI TIA/EIA 568-B.2 | ATM, TP-PMD, ANSI X39T.5(TP),LSDN,TP-DDI |
EN 50173 | ETHERNET, 1000BASE-T |
EN-50288-3-1 | GIGABIT-ETHERNET |
Component | Material | Diameter(mm) |

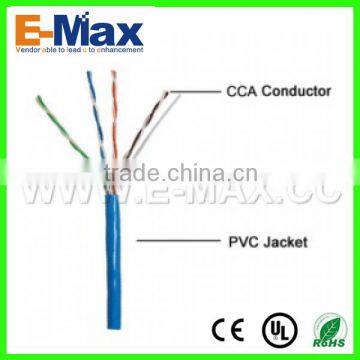

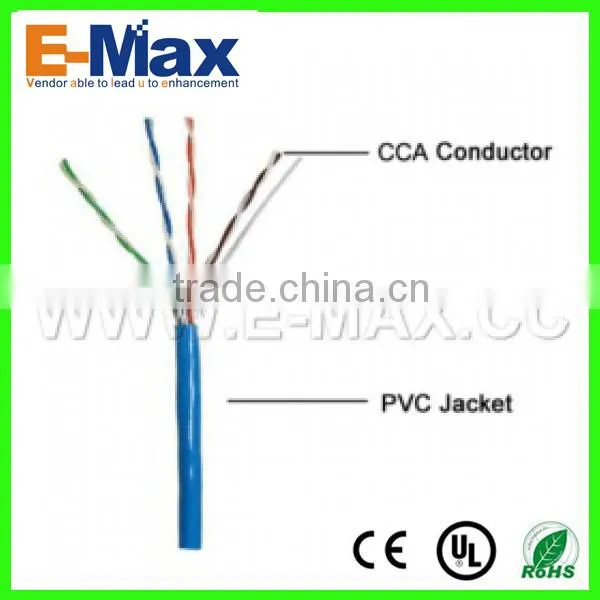

Inner Conductor | CCA | 7*0.16 |
Insulation | HDPE | 0.92 |
Jacket | PVC, grey, or customized | 5.2 |
Dielectric strength | 2.5KV dc-2seconds |
Conductor resistance | Max 9.38ohm/100M at 20℃ |
Max. mutual capacitance | 5.6nF/100M |
Max. capacity unbalance | 330pf/100M |
Standard impedance | 100±15 ohm between 1Mhz and 350Mhz |
Minimum bending radius | 50mm |
Working temperatures | -20~60℃(-4F-140F) |
WHO WE ARE
Hangzhou E-Max Industry Co., Ltd is specialized in wires & cables and related products. With our sophisticated supply chainmanagement, industry insights and expertise, we provide our customers with total solution for the wires and cable industry, including:
- Qualified wires & cables, tools and accessories for wiring &cabling
- Raw materials, machineries and testing equipments & facilities for wires and cables manufacturing
- Solutions and consultation for cabling, cable factory set up,upgrade, expansion, etc.
We stick to our mission as the Vendor Able to Lead U to Enhancement, and this is what we call “VALUE”.
