Home > Consumer Electronics > LED Display > Indoor LED Display > Full Color 4 Digits 7 Segment Led Display

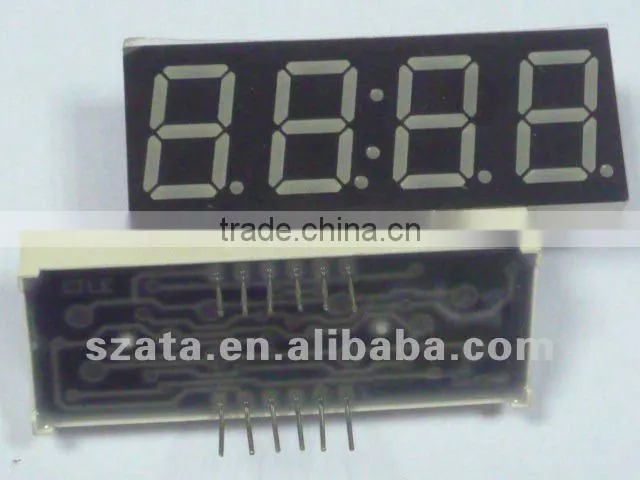

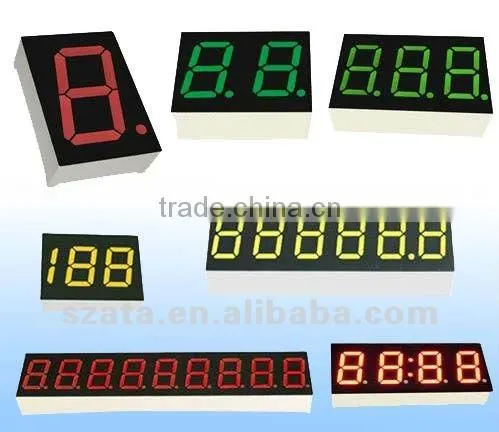

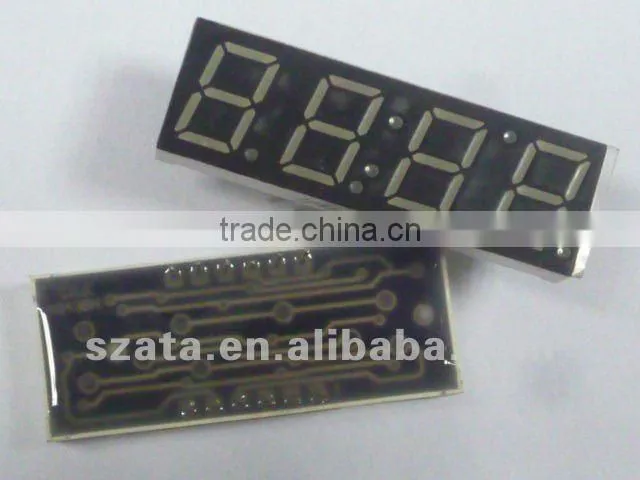

Full Color 4 Digits 7 Segment Led Display

US$ 0.2 - 0.5 MOQ: 500 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ATA

Model Number:

7 segment display

Contact Supplier Request Quote Chat Now

Aite Aiko Technology (Shenzhen) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ATA

Model Number 7 segment display

Usage Indoor

Tube Chip Color Full Color

Display Function Other, microwave oven

Pixels 20mm

Specifications

LED display:
1.Low power consumption
2. long life according to experiments
3. High efficiency
4. Industrial standard size

7 segmen display:

Features: 1. fixed light sources

2. Not contain mercury

3. High light

4. Low consumption

5. Long lifetime

Absolute Maximum Ratings ( Suggest to test the item by drive,thank you very much!)

Type YELLOW

Parameter	Symbol	Maximum Rating	Unit
Power Dissipation	Pd	40	mW
Peak Forward Current	Ifp	60	mA
Continuous Forward Current(Forward )Current	Ifm	30	mA
Reverse Voltage	VR	5	V
Operating Temperature Range	Topr	-20→ +65	°C
Storage Temperature Range	Tstg	-20→ +70	°C
Static Voltage	Var	500	V

Type GREEN

Parameter	Symbol	Maximum Rating	Unit
Power Dissipation	Pd	46	mW
Peak Forward Current	Ifp	60	mA
Continuous Forward Current( Forward )Current	Ifm	30	mA
Reverse Voltage	VR	5	V
Operating Temperature Range	Topr	-20→ +65	°C
Storage Temperature Range	Tstg	-20→ +70	°C
Static Voltage	Var	500	V

Type RED

Parameter	Symbol	Maximum Rating	Unit
Power Dissipation	Pd	38	mW
Peak Forward Current	Ifp	60	mA
Continuous Forward Current( Forward )Current	Ifm	30	mA
Reverse Voltage	VR	5	V
Operating Temperature Range	Topr	-20→ +65	°C
Storage Temperature Range	Tstg	-20→ +70	°C
Static Voltage	Var	500	V

Lead Sodering Temperature ,260°C for 3 seconds

For operation above 25°C, The Ifm Ifp & Pd must be derated, the Curent derating is –0.36mA/°Cfor DC

drive and -0.86mA/°Cfor Pulse drive, the power dissipation is -0.75mW/°C. The product working current

must not more than the 60% of the Ifm or Ifp according to the working temperature.

Application:Household appliances Such as Ammeter,LED Digit diplay screen,Apparatus,Instrument.Also,We can offer the item designed by customer

Our company specialized in LED diode, nixie tubes, dot matrix modules, clock plate, back plate, and all kinds of internal and external LED display screen with single or dual color etc.

Our products is selling well with uniform brightness and great reputation in China . Products has derease less than 1% brightness within 1 year. With many years experience in production and management, We can offer customers with reliable quality, favorable price LED display.

Our belief "to pursuit excellence on the basis of good faith". the purpose and dedication is to provide our customers the best quality and service. Welcome to visit our company.one of my hobby is to making friends with my customers,you will get a surprise when you enter into business with me!
