Specifications

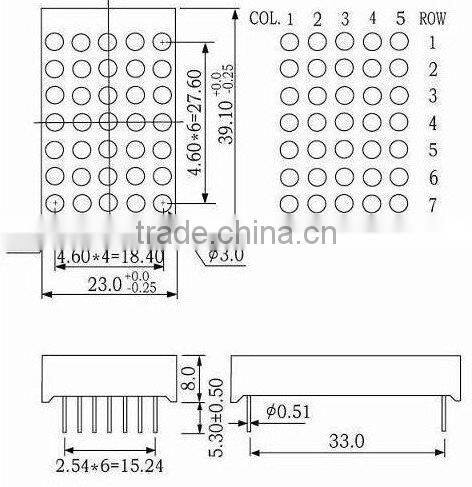

decorative led dot matrix1.Newest model+best price+high quality
2.ISO9001 ROHS CE compliance
3.Long life with enviromental
decorative led dot mrix
1) Material: environmental
2) ROHS+CE+ISO
3) Working time: Above 100,000 hours
4) Low energy consumption
5) Accept customization
Absolute Maximum Ratings
Parameter | Symbol | Maximum Ratings | Unit |
Power Dissipation | Pd | 57 | mw |
Peak Forward Current | Ifp | 60 | mA |
Continous Forward Current | Ifm | 20 | mA |
Reserve Voltage | Vr | 5 | V |
Operating Temperature | Topr | -20 +85 | Deg |
Storage Temperature Range | Tstg | -20 +85 | Deg |
Optical Electrical Characteristics
Parameter | Test Condition | Symbol | Min-Type-Max | Min-Type-Max | Min-Max | Min-Max | Min-Max | Unit |
red | yellow | gren | blue | pure green | ||||
luminous Intensity | If=20mA | Iv | 19-22/31-38 | 58-61 | 40-50 | 60-65.5-70 | 200-220 | mcd |
Forward Voltage | If=20mA | Vf | 1.8-2.3 | 1.8-2.3 | 1.8-2.3 | 2.7-3.5 | 3.2-3.27-3.4 | V |
Reserve Current | Vr=5V | Ir | 100 | 100 | 100 | 100 | 80 | uA |
Peak Wavelength | If=20mA | λp | 630-639 | 585-588.1-590 | 569-572 | 462.6-464.1-465 | 521.3-522.5 | nm |
View Angel | If=20mA | 2θ1/2 | 60 | 60 | 60 | 60 | 60 | Deg |
