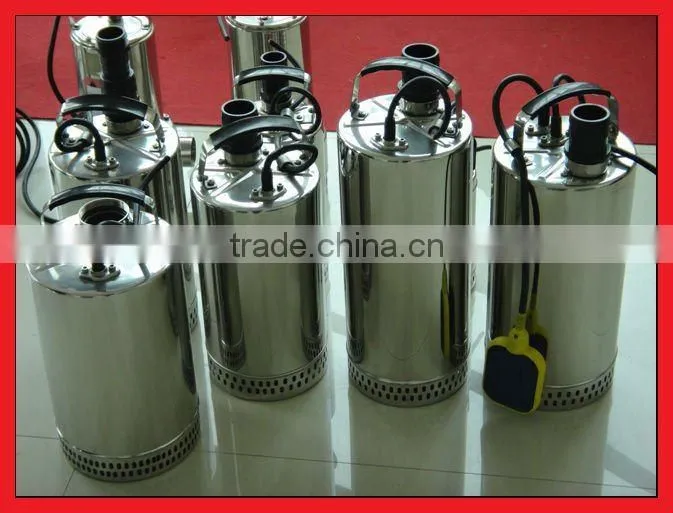

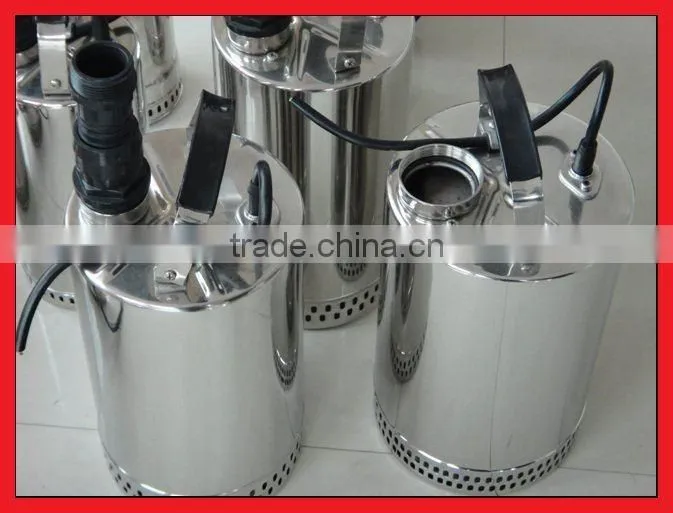

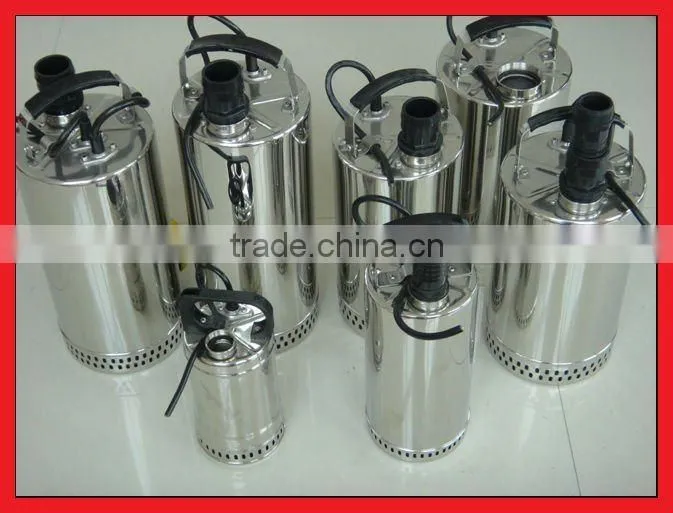

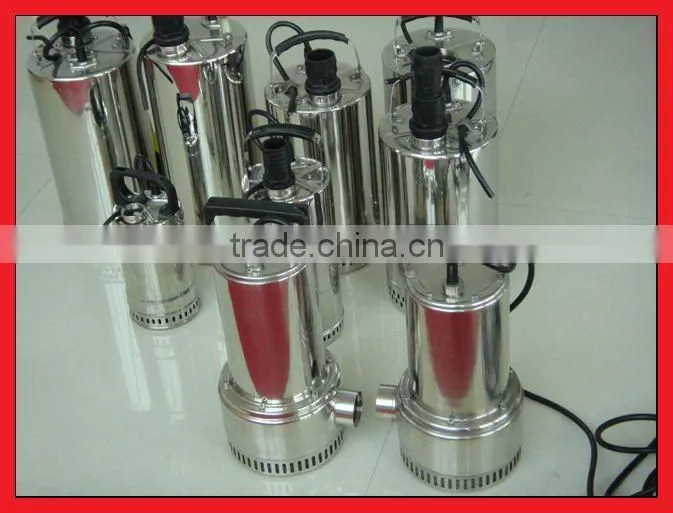

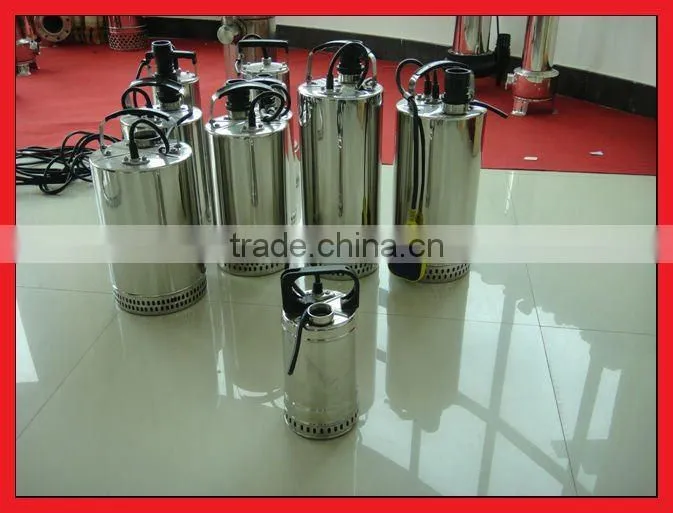

Multi-stage Self-priming and Centrifugal Electropump Portable Garden Inox
Negotiable
MOQ: 200 Cases (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
chaoqian
Model Number:
cq
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single Phase 5" Multi-stage Submersible Electric PumpNegotiableMOQ: 200 Boxes -
Hi-pressure Submersible Water PumpNegotiableMOQ: 100 Units
-
Stainless Steel Submersible Multistage PumpsNegotiableMOQ: 100 Units
-
CE List High Pressure Pump Submersible Multistage Pump PumpaNegotiableMOQ: 100 Boxes
-
Diver 100 Single Phase 5" Multi-stage Submersible Borehole PumpNegotiableMOQ: 100 Units
Place of Origin
Zhejiang, China
Brand Name
chaoqian
Model Number
cq
Theory
Electromagnetic Pump
Structure
Diaphragm Pump
Usage
Oil
Power
Hydraulic
Standard or Nonstandard
Standard
Fuel
Diesel
Pressure
High Pressure
Application
Submersible
Characteristics&use range:
stainless steel structure.
sing(three)phase power source.
rust&corrosion resistance.
made of AISI 304 (PH VALUE4-10)
AISI 316L (PH VALUE0-12)
Feature:
SS pump casing
SS shaft
Mechanical seal: graphite to ceramic and silicon carbide to silicon carbide
Thermal overload protector in single phase motor
| Technical Data | ||||||||
| Model | Head m |
Capacity m3/min |
Voltage,Frequency V,Hz |
Output Power KW/HP |
Discharge Size mm |
Packing Size mm |
G.W KG |
QTY/20"GP Unit |
| QDN25-6-0.75KW |
25 MAX:33 |
6 MAX:10 |
220V/50Hz,220V/60Hz 380V/50Hz,110V/60Hz |
0.75KW (1HP) |
50 | 220x220x460 | 13.3 | 1300 |
| QDN15-14-1.1KW |
15 MAX:20 |
14 MAX:17 |
220V/50Hz,220V/60Hz 380V/50Hz,110V/60Hz |
1.1KW (1.5HP) |
25 | 140x140x335 | 5.2 | 3461 |
| QDN25-9-1.1KW |
25 MAX:40 |
9 MAX:12 |
220V/50Hz,220V/60Hz 380V/50Hz,110V/60Hz |
1.1KW (1.5HP) |
25 | 140x140x380 | 6.5 | 2769 |
| QDN40-6-1.1KW |
40 MAX:50 |
6 MAX:10 |
220V/50Hz,220V/60Hz 380V/50Hz,110V/60Hz |
1.1KW (1.5HP) |
40 | 165*165x375 | 7.6 | 2368 |
| QDN3-25-0.55KW | 3 Max:11 |
25 Max:27 |
220V/50Hz,115V/60Hz 380V/60Hz,127V/60Hz |
0.55KW (3/4HP) |
40 | 165x165x380 | 8.5 | 2117 |
| QDN3-30-0.75KW | 3 Max:12 |
30 Max:33 |
220V/50Hz,220V/60Hz 380V/50Hz,110V/60Hz |
0.75KW (1HP) |
50 | 220x220x445 | 12.3 | 1300 |
| QDN3-35-11KW | 3 |
35 |
220V/50Hz,220V/60Hz 380V/50Hz,110V/60Hz |
1.1KW (1.5HP) |
50 | 220*220*445 | 12.9 | 1300 |
| QDN6-24-1.1KW | 6 Max:20 |
24 Max:28 |
220V/50Hz,220V/60Hz 380V/50Hz,110V/60Hz |
1.1KW (1.5HP) |
50 | 220*220*485 | 16 | 1300 |
| QDN8-20-1.1KW | 8 Max:20 |
20 Max:25 |
220V/50Hz,220V/60Hz 380V/50Hz,110V/60Hz |
1.1KW (1.5HP) |
50 | 220*220*485 | 16 | 1300 |
| QDN6-30-1.5KW | 6 MAX:16 |
30 MAX:33 |
220V/50Hz,220V/60Hz 380V/50Hz,110V/60Hz |
1.5KW (2HP) |
50 | 220*220*530 | 17 | 1058 |
| QDN10-20-1.5KW |
10 MAX:25 |
20 MAX:25 |
220V/50Hz,220V/60Hz 380V/50Hz,110V/60Hz |
1.5KW (2HP) |
50 | 220*220*530 | 17 | 1058 |
| QN10-32-2.2KW |
10 MAX:30 |
32 MAX:38 |
380V/50Hz |
2.2KW (3HP) |
65 | 200*240*640 | 28 | 642 |
| QN15-34-3KW |
15 MAX:33 |
34 MAX:38 |
380V/50Hz, |
3KW (4HP) |
65 | 200*240*660 | 30 | 600 |
