Specifications
2014 new china led display for mp31.Not include Hg
2.fully CE ROHS ISO9001 Approved
3.Material:enviromental

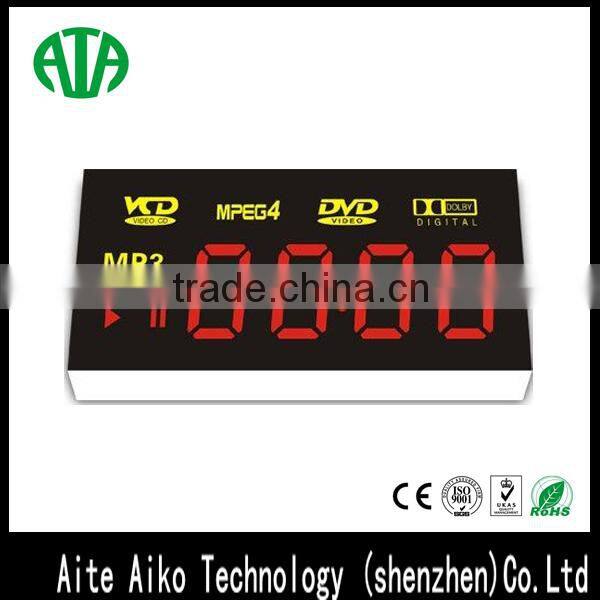

2014 new china led display for mp3
About product
1.Electrical optical charactertistics(Ta25°C)
Parameter |
Symbol |
Min |
Type |
Max |
Unit |
Test Condition |
Luminous Intensity |
IV |
165 |
182 |
185 |
mcd |
IF=20mA |
Peak Wavelength |
λp |
|
|
|
nm |
IF=20mA |
Dominant Wavelength |
λd |
510 |
511 |
512 |
nm |
IF=20mA |
Forward Voltage |
Vf |
3.0 |
3.2 |
3.5 |
V |
IF=20mA |
Reverse Current |
IR |
|
|
50 |
uA |
VR=5V |
Suggestion Forward Current |
IF |
3 |
5-10 |
20 |
mA |
IF=20mA |
2.Absolute Maximum Ratings (Ta=25°C):
Parameter |
Rating |
Unit |
Reverse Voltage |
5 |
V |
Power Dissipation,Per Dice |
50 |
mW/chip |
Operating Temperature Ranger |
-48~+85 |
°C |
Storage Humidity |
45%~85% |
°F |
Storage Temperature Ranger |
-40~+90 |
°C |
Soldering Temperature |
260°C For 3 Seconds |
|
Peak IF(ma) (1/10Duty Cycle 0.1ms Pulse Width) |
100 |
mA/chip |
Continuous Forward Current |
20 |
mA/chip |
Attention:
Lead Sodering Temperature 260°C for 3 seconds
For operation above 25°C, The Ifm Ifp & Pd must be derated, the Curent derating is –0.36mA/°Cfor DC
drive and -0.86mA/°Cfor Pulse drive, the power dissipation is -0.75mW/°C. The product working current .must not more than the 60% of the Ifm or Ifp according to the working temperature.
Application:
Household appliances Such as Ammeter,LED Digit diplay screen,Instrument panels.Also,We can offer the item designed by customer(just provide us the requirements)
Product
Digit size |
customized U need |
| Dimension | customized |
| Digit height | customized |
| surface color | Black/gray/white |
| Emitted color | full color |
| Polarity | common anode/common cathode |
Delivery time:
1-10pcs 2-3 working days
1-100pcs 3-5working days
101pcs-500pcs 5-8working days
500-1000pcs 8-12working days
more than 1000pcs 12-18 working days
if you need new modle customized,usally need more working days
Other items
Other customized product:
About us
SHENZHEN AITEAI TECHNOLOGY CO.,LTD.
Our company specialized in LED diode, nixie tubes, dot matrix modules, clock plate, back plate, and all kinds of internal and external LED display screen with single or dual color etc.
Our products is selling well with uniform brightness and great reputation in China . Products has derease less than 1% brightness within 1 year. With many years experience in production and management, We can offer customers with reliable quality, favorable price LED display.
Our belief "to pursuit excellence on the basis of good faith". the purpose and dedication is to provide our customers the best quality and service.We have full experience in cooperating with some big companied such as TCL,Desay etc.
one of my hobby is to making friends with my customers,you will get a surprise when you enter into business with me!
Our service:
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Experienced staffs to answer all your enquires in fluent English.
3. We are doing the OEM and ODM service for more than 10 years.
4. Protection of your sales area, ideas of design and all your private information.
5. No matter big order or small order , we will provide all the best quality , best service
6. Advanced equipments and good materials: ASM machine, good chips and epoxy resin.
7. Our products using life: 50000 hours. High brightness and low power consumption
8. If our products have any problem , we will send free in the next order if it is our mistake.
welcome to inquiry~
