Gabion ASTM A975/EN10224(factory)

Specifications

gabion/gabion box/gabion basket/gabion mattress/reno mattress
Material:heavy and hot dipped galvanized/galfan(Zn 5%Al)/Zn 10%Al

Gabion/gabion box/gabion basket/hexagonal wire mesh



Why chose Jiangyin Jinlida Gabions for your projects?

1. Jinlida is the earliest and largest manufacturer of gabion structures in China.

2. Member of Chinese Hydraulic Engineering Society(CHES).

3. Member of China Institute of Water Resources.

4. Editor unit of China gabion engineering and technology standard.

5. The only one enterprise recommended by China Ministry of Water Resources in the field of gabion structures.

6.Strictly implement and meet international standard ASTM STANDARD or BS EN STANDARD and pass ISO & SGS quality certificate system, 3000hs Salt Spray Test.



Popular Gabion Specifications:

(special wire gauges and box sizes available on request)

GABION SIZE
Mesh opening	60x80mm, 80 x 100 mm, 100x120mm
Wire size	2.0mm, 2.2mm, 2.4mm, 2,7 mm, 3.0mm, 3.2mm, 3.4mm,etc.
Tolerance
Lenght	± 3%
Width	± 5%
Height	± 5%
Gabion Materials
Heavy and hot dipped galvanized low carbon steel wires, galfan(Zn 5%Al), Zn 10% Al, pvc coated
Zinc/galfan/ Zn 10%Al coating 2.2mm/2.4mm≥270gsm 2.7mm/3.0mm/3.4mm≥300gsm
Thickness of pvc coating: 0.5mm



Gabion box installation:

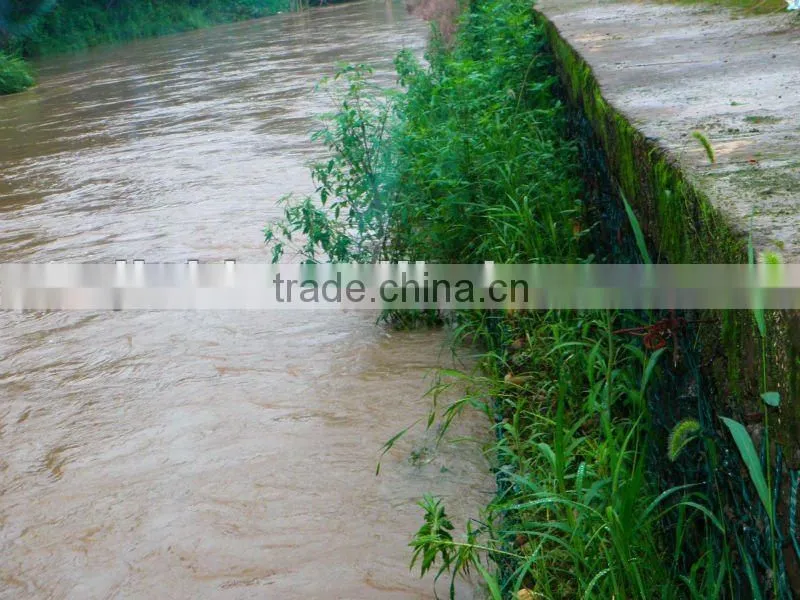

Gabion box looks as good as new after more than ten years in Zhejiang's project
