Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Energy System > Combiner Box With Intelligent Monitoring dc

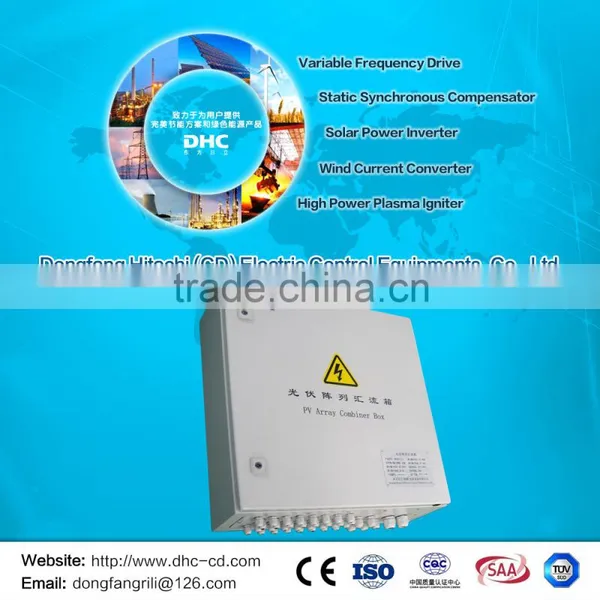

Combiner Box With Intelligent Monitoring dc

Negotiable MOQ: 100 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

DHC

Model Number:

DHSPCB

Contact Supplier Request Quote Chat Now

Dongfang Hitachi (CD) Electric Control Equipments Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin/ Shanghai/Shenzhen China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name DHC

Model Number DHSPCB

Key Features

Reliable

We select the well-known brands for the main components such as DC circuit breaker, lightning arrester, fuse and so on, and work with our providers closely to ensure high reliability of our products. In addition, the ingress protection grade of the combiner box is up to 65 to meet the harsh operating requirements in the outdoor environment.

Intelligent

The monitor can record the current, voltage, and power of each line, detect the faults such as open-circuit, short-circuit, and broken-circuit etc., collect status information of fuse, DC circuit breaker and lightning arrester.

Flexible

Offers different ways of connection to the module including MC4 terminals, waterproof plugs and so on.

Technical Specifications

Max. PV input voltage:	1000Vdc
Operating power supply:	24Vdc
Operating power consumption:	50W
Number of inputs:	6~16 inlets optional
Number of outputs:	1
Input connection:	MC4/Plug type
Communication interface:	CAN/RS485
Ingress Protection:	IP65
Max. PV input current per line:	10/15A
Operating temperature:	-35~60℃
Dimension (WHD)	600670210
Weight	35kg
