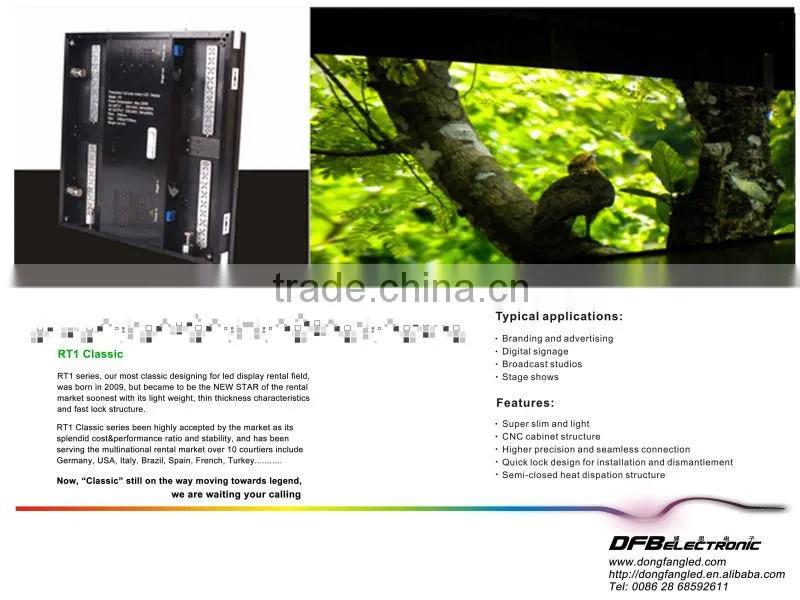

p6 newest tech led screen display
Solution for fast install/dismantle rental led display
p6 newest tech led screen displayspecifications
Viewing distance: 25-500m
Recommend Minimum Screen size: 18-32 M2
| p6 newest tech led screen display Pixel pitch | 4.5mm | 5.14mm | 6mm | 7.2mm | 9mm |
| p6 newest tech led screen display LED Configuration | SMD2020 | SMD3528 | SMD3528 | SMD3528 | SMD3528 |
| p6 newest tech led screen display LED density/sqm | 49380pixel | 37850pixel | 27777pixel | 19290pixel | 12345pixel |
| p6 newest tech led screen display Module Size | 288*288mm | 288*288mm | 288*288mm | 288*288mm | 288*288mm |
| p6 newest tech led screen display Module Resolution | 64*64pixels | 56*56pixels | 48*48pixels | 40*40pixels | 32*32pixels |
| p6 newest tech led screen display LED cabinet size | 576*576mm | 576*576mm | 576*576mm | 576*576mm | 576*576mm |
| p6 newest tech led screen display LED cabinet Resolutions | 128*128 | 112*112 | 96*96 | 80*80 | 64*64 |
| p6 newest tech led screen display Brightness | 2800nits | 2500nits | 2300nits | 2000nits | 1800nits |
| p6 newest tech led screen display Weight | 10KG/cabinet | 9KG/cabinet | 8.5KG/cabinet | 8KG/cabinet | 7KG/cabinet |
| p6 newest tech led screen display Scan Mode | 1/8 | 1/7 | 1/8 | 1/10 | 1/8 |
| p6 newest tech led screen display LEDs Source | Epistar/CREE | ||||
| p6 newest tech led screen display Freq. | ≥1200Hz | ||||
| p6 newest tech led screen display Grey Scale | ≥12bits | ||||
p6 newest tech led screen display features
1. CNC+Die Casting Aluminum cabinets
The flatness of led panel surface is greatly improved by its CNC+Die Casting molding process (precision up to 0.05mm), thus it ensures the full screen’s seamless and precise installation.
2. Wide range pixel pitch avaible
We designed this renT series display to be full pixel, available pitch 4.5mm, pitch 5.14mm, pitch 6mm, pitch 7.2mm, pitch 9mm, so to satify the your different Class level with just one STYLE!
3. Super Slim
the thickness is 100mm. This saves your installation space and packing size, it ensures the greatly fast movement and installation.
4. Light Weight
The weight of full panel is only 13.5KG, can be easily hanging up by one person, with only two person can finish 12sqm led screen installation in 30minutes, it saves your time and labor cost.
5. Convenient and fast installation
We adapted Plug and play designing for this series, the power and signal connector is quite easy and fast for in&out operation; and the signal connection can be in horizontal and vertical ways, it satisfied the rental application in any cases.
6. Super wide viewing angle (140 Degree)
The SMT technology and one line chip encapsulation optimized the viewing performance even at wide viewing angle up to 120-140 degree, the gorgeous color uniform will satisfy the nitpicker's eyes.
7. Easy maintenance
All electrical parts was connected by a driving board inside the aluminum panel, it helps to decide which part faults when problem comes out and can be replaced quickly.
8. High refresh rates and color contrast(16bits original)
In consider of the full range rental application even for the high end TV shows or Talks, we improved the base material supplying with all pure black color ones, it enhances the white/black color contrast greatly, further and more, we raise the refresh rates up to 2000Hz, you'll not worry about the scanning lines be watched by your living camera.

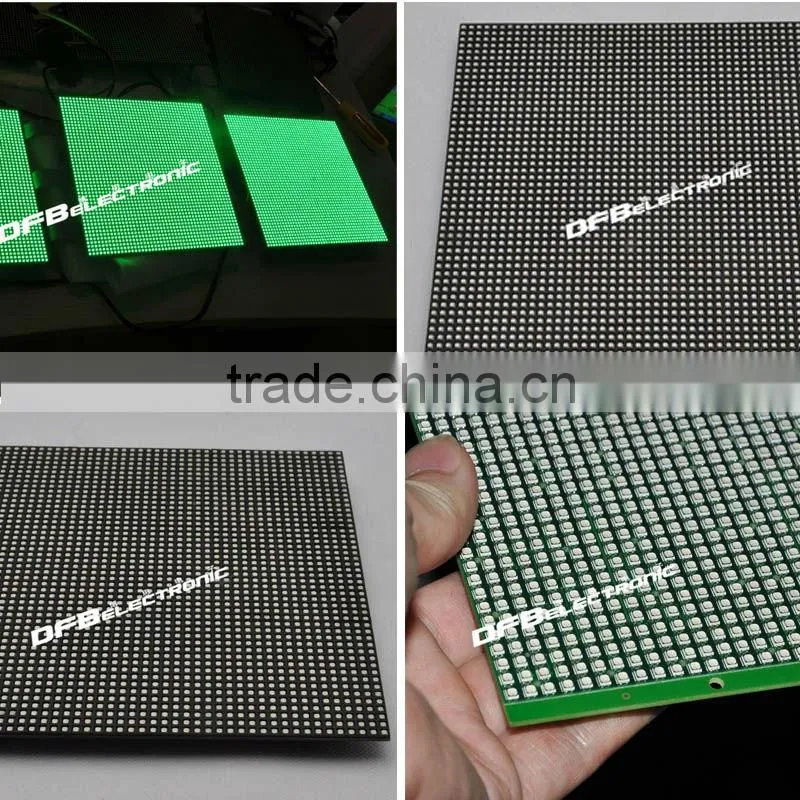

p6 newest tech led screen display module

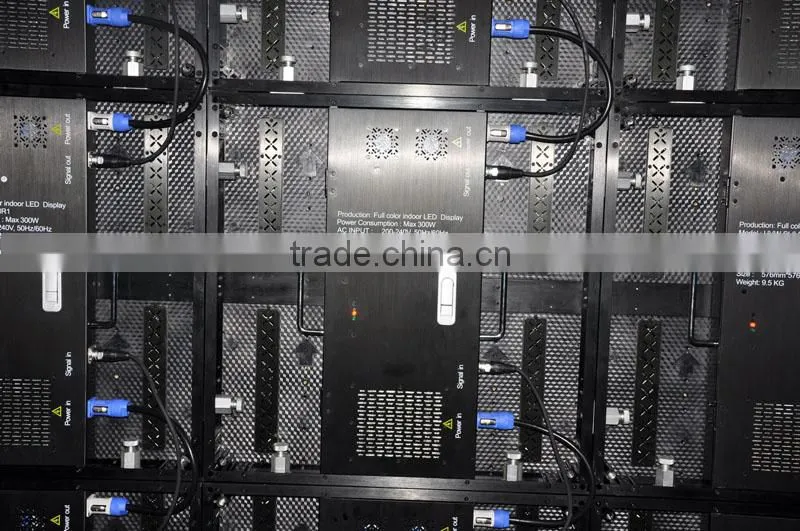

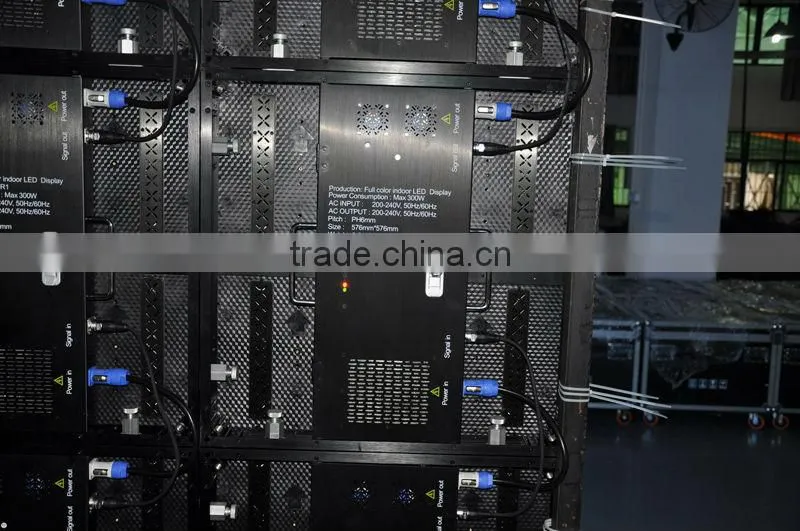

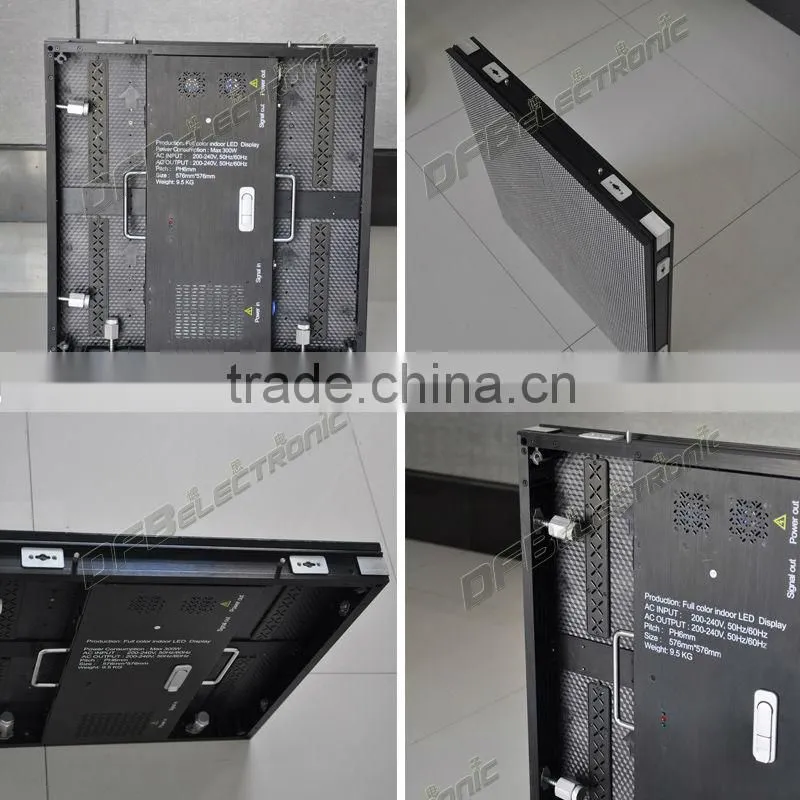

p6 newest tech led screen display cabinets

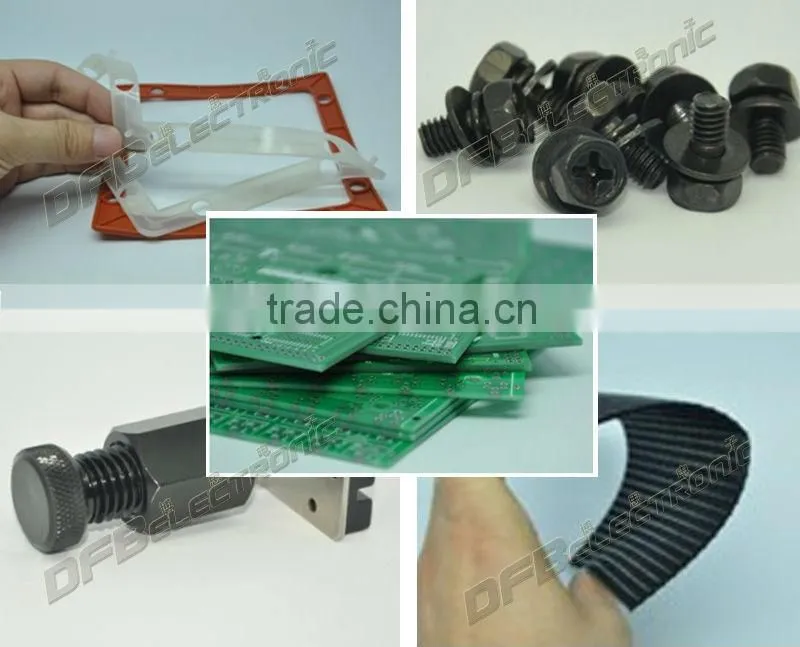

p6 newest tech led screen display raw martrials

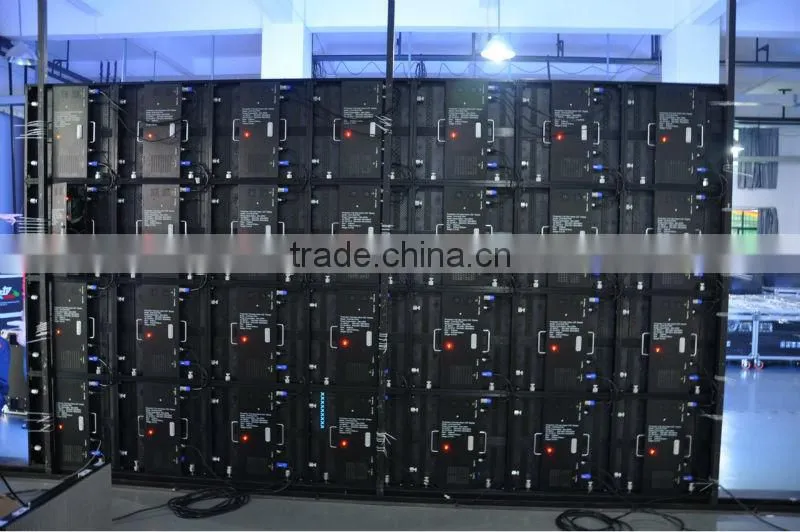

p6 newest tech led screen display Installation

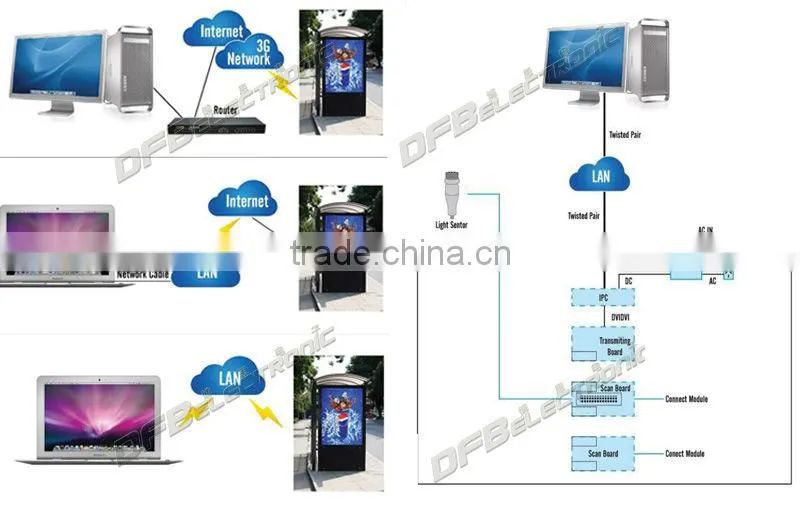

p6 newest tech led screen display Control system

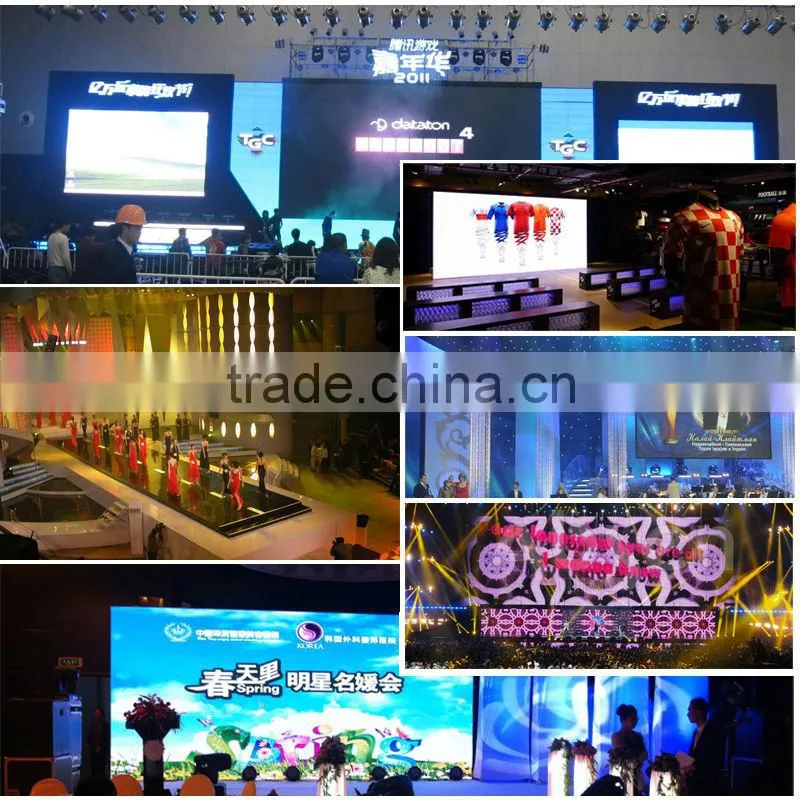

p6 newest tech led screen display projects viewing
p6 newest tech led screen display
Solution for fast install/dismantle rental led display
