YYTZ28-6/8 Hydraulic Leg Drill Power Pack

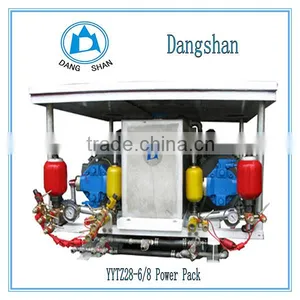

YYTZ28-6/8 Hydraulic Leg Drill Power Pack thumbnail-1
YYTZ28-6/8 Hydraulic Leg Drill Power Pack thumbnail-2
YYTZ28-6/8 Hydraulic Leg Drill Power Pack thumbnail-3
YYTZ28-6/8 Hydraulic Leg Drill Power Pack photo-1
YYTZ28-6/8 Hydraulic Leg Drill Power Pack photo-2
YYTZ28-6/8 Hydraulic Leg Drill Power Pack photo-3
US$ 10,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Shanghai Dangshan Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Electric
Place of Origin Zhejiang, China
Brand Name Dangshan
Model Number YYTZ28-6/8
Usage Other, mine or ore
Dimension(L*W*H) 1.9m*1.4m*1.1m
Weight 1.6t
Warranty six or twelve months
After-sales Service Provided Engineers available to service machinery overseas

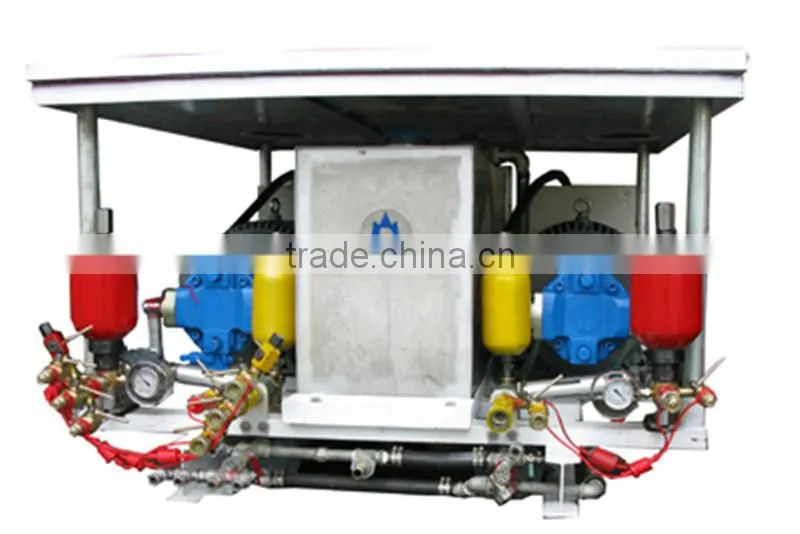

YYTZ28-6/8 Hydraulic Leg Drill Power Pack

YYTZ28-6/8 Hydraulic Leg Drill Power Pack

YYTZ28-6/8 power pack:About 1.6T weight,

power consumption about 70  degrees per hour.

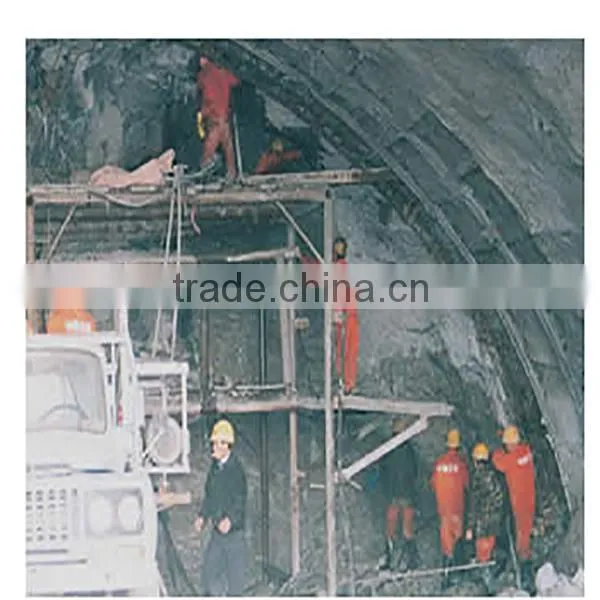

And the unit fits public railway, water,electricityand so on large and  medium-sized cross-section fromtop to bottom of the tunnel excavation drilling  operations.

   Model

    Length×Width×Height

                           m

   Weight

          T

Power

      Kw

       YYTZ28-8

1.9×1.4×1.1

       1.6

    2×37



        Leg drill

0.6 x 0.173 x 0.19m



model

Length*width*height

weight

power

weight

2 8 kg

28-1

1.1 x 0.6 x 0.9m

300kg

15KW

Hydraulic pressure

15 - 17Mpa

28-2

1.3 x 0.7 x 1.0m

450kg

22KW

Oil flow

30 - 35L

28-3

1.3 x 1 x 0.9m

600kg

30KW

Impact energy

60 - 65J

28-4

1.5 x 1.1 x 0.9m

700kg

37KW

Impact frequency

60 - 65Hz

28-6

1.8 x 1.3 x 1m

1300kg

2×30KW

torque

60 - 65Nm

28-8

1.9 x 1.4 x 1.1m

1600kg

2×37KW

Spin speed

250 - 300r/min



Hydraulic leg

1400 - 2600mm



Water pressure

0.3 - 0.5mpa







YYT28 Hydraulic Leg Drill







YYTZ28-6/8 Hydraulic Leg Drill Power Pack

DangShan YYT28 hydraulic rock drill is a new generation drilling equipments
Of our factory, which takes more than 18 year careful development.

And obtained the "National Key New Product"

And "Technical departmentinnovation Fund".
A number of patented technology makes this product has many outstanding features: Small original driving force, fast speed, stability control, low noise,

simple, reliable, easy maintenance, flexible and mobile etc.
The YYT28 is made for general excavations, quarrying and bolting with hexagonal shank rods with a shank size of 108mm(41/2")*22mm(7/8").

The YYT28 can use water flushing or air flushing.
YYT28 is a hydraulic rock drill to drill diameter 32mm(1¼") to 50mm(2") holes.

   Parameter

 Shank

Water flushing

Air flushing

Weight kg

Length Overall mm

Piston stroke mm

Piston dia mm

Oil flow L/min

22×108

√

√

28

600

24

30

32-35



Hydraulic pressure Mpa

  Impact

  energy

       J

Impact frequeny HZ

Torque Nm

Spin  speed r/min

Drilling hole dia mm

Water pressure

       Mpa

15-17.5

55-65

55-60

50-55

250-300

Φ32-46

0.1-0.3

Technical data

   support

       leg



Weight  kg

 Length  mm

Length mm(extended)

Feed length mm

       Feed cylinder

                  dia mm

      12.5

       1400

               2600

      1110

                     47



More pictures are as follows

YYTZ28-6/8 Hydraulic Leg Drill Power PackYYTZ28-6/8 Hydraulic Leg Drill Power PackYYTZ28-6/8 Hydraulic Leg Drill Power Pack
