YYT28-2 Hydraulic Leg Drill Power Pack

YYT28-2 Hydraulic Leg Drill Power Pack thumbnail-1
YYT28-2 Hydraulic Leg Drill Power Pack thumbnail-2
YYT28-2 Hydraulic Leg Drill Power Pack thumbnail-3
YYT28-2 Hydraulic Leg Drill Power Pack photo-1
YYT28-2 Hydraulic Leg Drill Power Pack photo-2
YYT28-2 Hydraulic Leg Drill Power Pack photo-3
US$ 10,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Shanghai Dangshan Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Electric
Place of Origin Zhejiang, China
Brand Name Dangshan
Model Number YYT28-2
Usage Other, Mine or ore and so on
Dimension(L*W*H) 1300mm*700mm*1000mm
Weight 500kg
Warranty six months or twelve months
After-sales Service Provided Engineers available to service machinery overseas

YYT28-2 Hydraulic Leg Drill Power Pack

YYT28-2 Hydraulic Leg Drill Power Pack

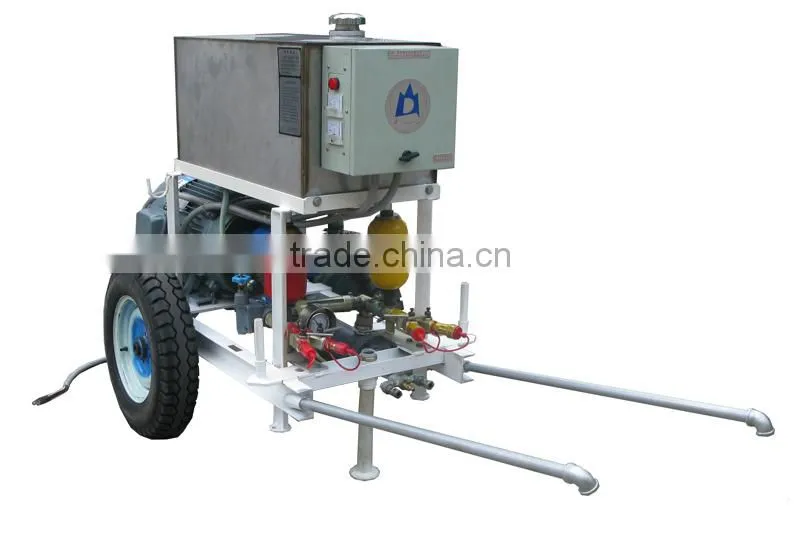

YYTZ28-2 power pack:Can drive two YYT28  hydraulic leg drills.

Power consumption about 16 kw per hour.

And the unit  applicable to the mining culvert,roadway,

water conservancy and hydropower  project.

In the F8-12 hardness rock and drill Φ40 mm diameter

 and 2.5m  depth about 14-20 holes per hour.

       Model

           Length× width× height
                             m

       Weight
           kg

    Power
       kw

    YYTZ28-2

                   1.3× 0.7× 1.0

          500

       22

YYT28 Hydraulic Leg Drill



YYT28-2 Hydraulic Leg Drill Power Pack

DangShan YYT28 hydraulic rock drill is a new generation drilling equipments
Of our factory, which takes more than 18 year careful development.

And obtained the "National Key New Product"

And "technical departmentinnovation Fund".
A number of patented technology makes this product has many outstanding features: Small original driving force, fast speed, stability control,

 low noise, simple, reliable, easy maintenance, flexible and mobile etc.
The YYT28 is made for general excavations, quarrying and bolting

with hexagonal shank rods with a shank size of 108mm(41/2")*22mm(7/8").

The YYT28 can use water flushing or air flushing.
YYT28 is a hydraulic rock drill to drill diameter 32mm(1¼") to 50mm(2") holes.

    Parameter

    Shank

Water flushing

Air flushing

Weight kg

Length Overall mm

Piston stroke mm

Piston dia mm

Oil flow L/min

22×108

√

√

28

600

24

30

32-35



Hydraulic pressure Mpa

  Impact

  energy

       J

Impact frequeny HZ

Torque Nm

Spin  speed r/min

Drilling hole dia mm

Water pressure

       Mpa

15-17.5

55-65

55-60

50-55

250-300

Φ32-46

0.1-0.3

Technical data

   support

       leg



Weight  kg

      Length  mm

Length mm(extended)

Feed length mm

       Feed cylinder

                  dia mm

      12.5

          1400

            2600

    1110

                     47



More pictures are as follows

YYT28-2 Hydraulic Leg Drill Power PackYYT28-2 Hydraulic Leg Drill Power PackYYT28-2 Hydraulic Leg Drill Power Pack
