Specifications
It is often used to supply power reliably to commercial or residential buildings and to industrial distribution circuits.- It is often used to supply power reliably to commercial or residential buildings and to industrial distribution circuits.
- Also, places where high flame retardant performance is required to prevent catastrophic fires from being spread
- Places where high flame retardant performance for public facilities such as hospitals, underground shopping centers, airport terminals, large buildings,?and subways is required and toxic gas and fumes from fire need to be suppressed.
- Ensures excellent performance through self-development and reliable processing of cable materials based on the best technical competency and R D. These cables have the optimal exterior finish appropriate for the features.
- Easy to make or connect due to its optical cable structure and configuration
- New materials that do not contain substances harmful to environments are used for environmentally friendly cables.
- Regular: Used for interior wiring of housing and commercial buildings as well as industrial distribution circuits
- Flame-retardant: Used for preventing fires (ZR)
- Heat Resistance: Designed with firefighting in mind (NH)
- Low Toxic, Lead-free: Environmentally friendly as it is made with materials that are not harmful to?the environment and does not emit toxic gases and noxious smoke in case of fire. (WDZ)
- Watertight: Used to prevent water tree from occurring at the insulator (FS)
- For External Use: Metal exterior to prevent insulating the cores
- Chemical Resistance: Used in chemical factories that may be exposed to flamable gas fumes and that require chemical resistance

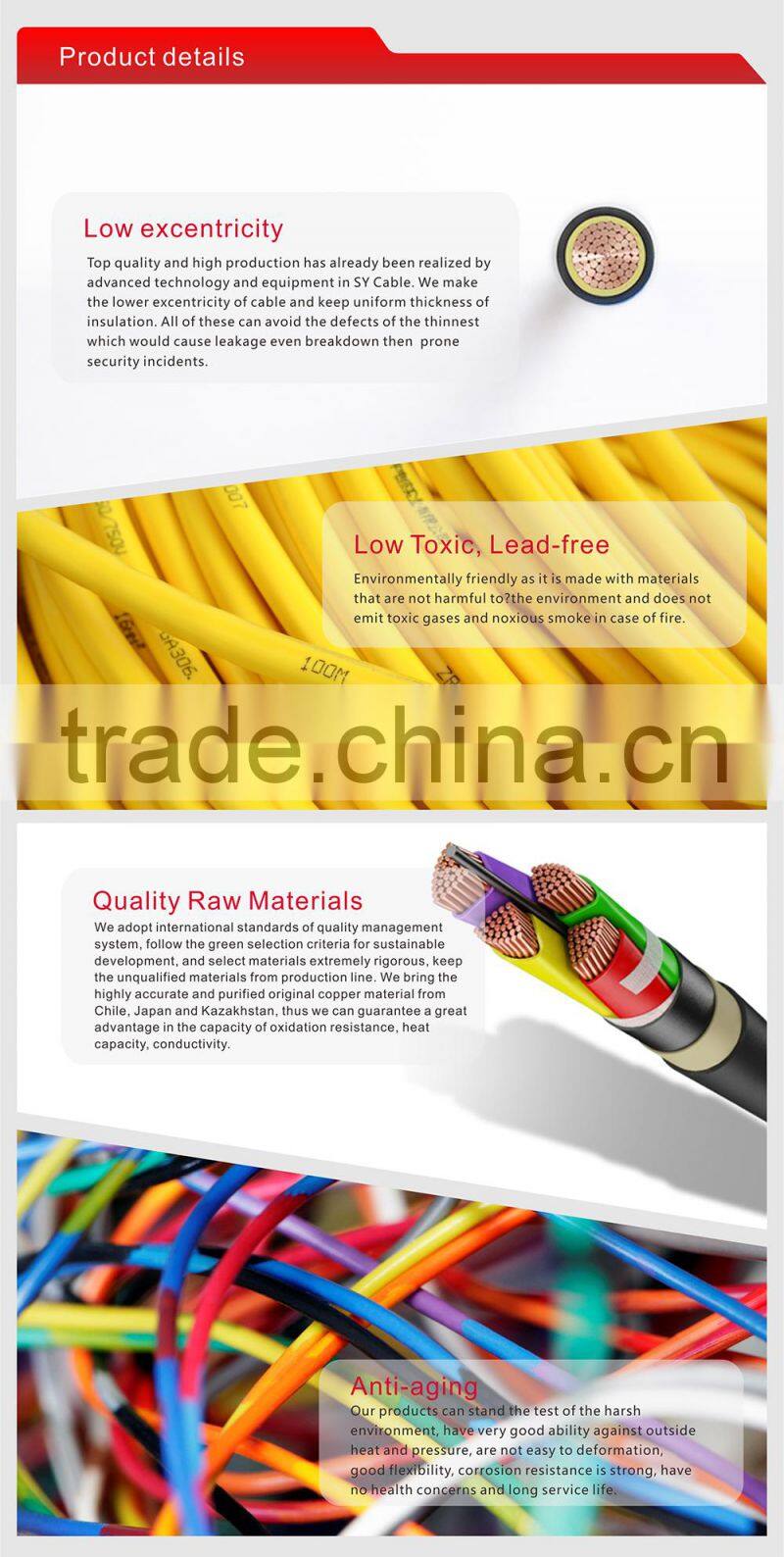

Product details

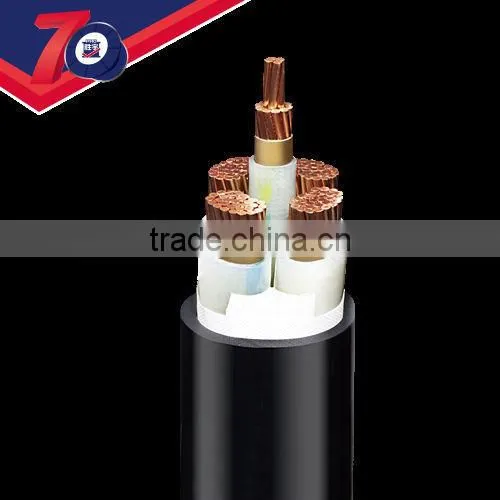

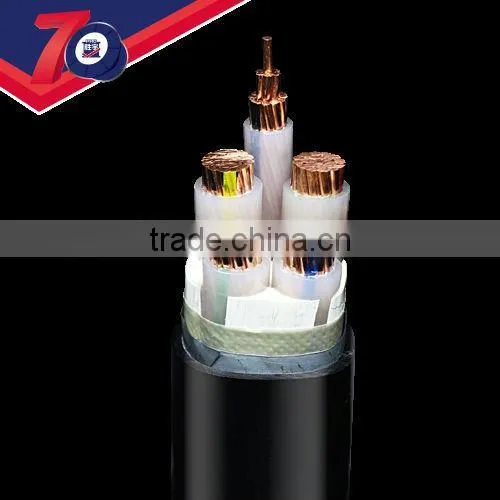

This cable is made by wrapping the conductor with cross-linked polyethylene, which is an insulation material. This is a distribution cable rated for 0.6/1kV to 22.9kV.
What are Medium/Low Voltage Cable?
The insulation material of this cable is cross-linked polyethylene, which has a heat-resistance rating up to 90℃. Thus this product is excellent for applications requiring intensive heat resistance. It is categorized as flame retardant, heat-resistant, or environmentally friendly depending on its features.
During last 15-20 years the demand for cross-linked polyethylene insulated cable has expanded rapidly and this type of cable has become the main type for power cables.
SY Cable has actively developed and applied recent manufacturing techniques for XLPE insulated cable, and has been engaged in a constant effort to obtain more stable quality, and produce XLPE cables for higher voltages, exceeding 500kV.
The products in this catalogue are based on the GB/T 12706-2008 or IEC 60502-2004 specification.
The cable is used to transmit power on the power transmission and distribution line of A.C. 50Hz, rated volt-age 35 KV or lower. By comparison with power cable with PVC insulation, it has not only excellent electric perfor-mance, mechanical performance, heat & aging resistant performance, weather resistant performance, chemical corrosion resistant performance, but also simple structure, light weight, no restriction by laying drop, and high tem-perature allowance for long term working(90℃) as well.
1.Executive standard
As section "Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um = 1,2 kV) up to 30 kV (Um = 36 kV)" stipulated in GB/T12706-2008 or IEC60502-2004 according to the requirement of the customer .
2.Working Condition
1, Long-term working temperature by cable conductor is 90℃.
2, Max. temperature of cable conductor shall be no more than 250℃ during short circuit (the longest lasting time shall be no more than 5 seconds).
3, Environment temperature for installation is no less than 0℃.
4, Min bending radium of cable:
It is no less than 15 times that of cable outer diameter for cable with three cores.
It is no less than 20 times that of cable outer diameter for cable with single core.
5,A.C. rated voltage U0/U of cable is 0.6/1kV~26/35kV.
U0: rated A.C. voltage of conductor to earth OR between metallic shielding for cable designing, which is called phrase voltage.
U: rated A.C. voltage between conductors for cable designing, which is called wire voltage.
Um: Max endurable value of “Max system voltage” for cable Working Condition

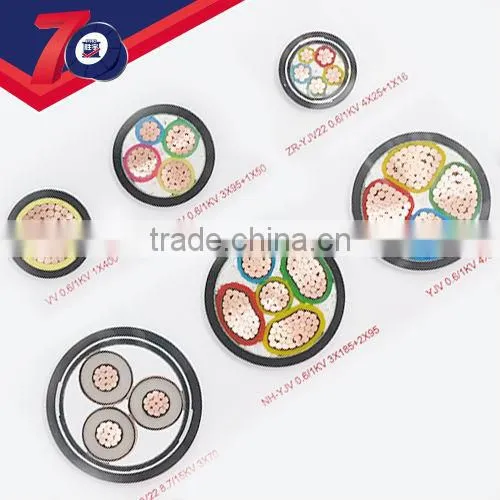

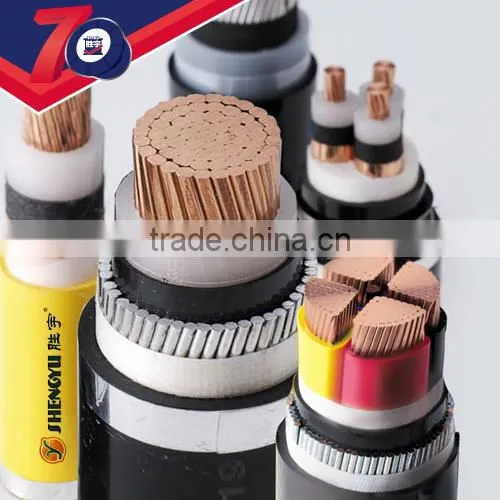

3.Type, Description and Application Occasion
YJV - XLPE insulated PVC sheathed power cable (XLPE/PVC Cable)
YJV22 - XLPE insulated steel tape armored PVC sheathed power cable (XLPE/STA/PVC Cable)
YJV23 - XLPE insulated steel tape armored PE sheathed power cable (XLPE/STA/PE Cable)
YJV32 - XLPE insulated steel wire armored PVC sheathed power cable (XLPE/SWA/PVC Cable)
ZR-YJV - Flame retardant XLPE insulated PVC sheathed power cable (FR/XLPE/PVC Cable)
ZR-YJV22 - Flame retardant XLPE insulated steel tape armored PVC sheathed power cable (FR/XLPE/STA/PVC Cable)
ZR-YJV23 - Flame retardant XLPE insulated steel tape armored PE sheathed power cable (FR/XLPE/STA/PE Cable)
ZRYJV32 - Flame retardant XLPE insulated steel wire armored PVC sheathed power cable (FR/XLPE/SWA/PVC Cable)
*FR – Flame Retardant

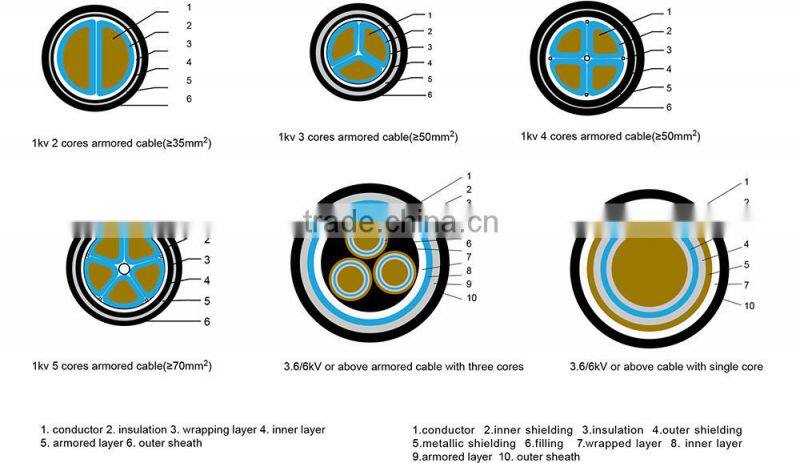

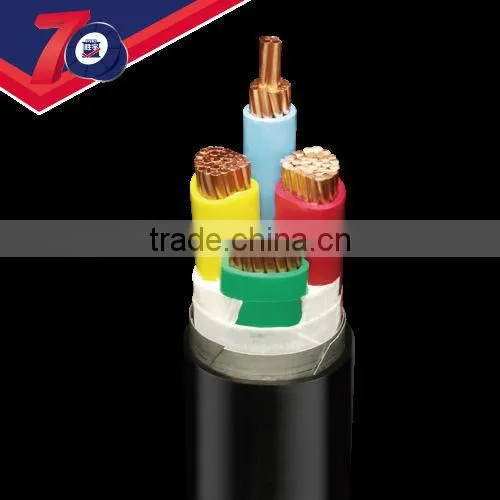

4.The Figure of Cable Structure

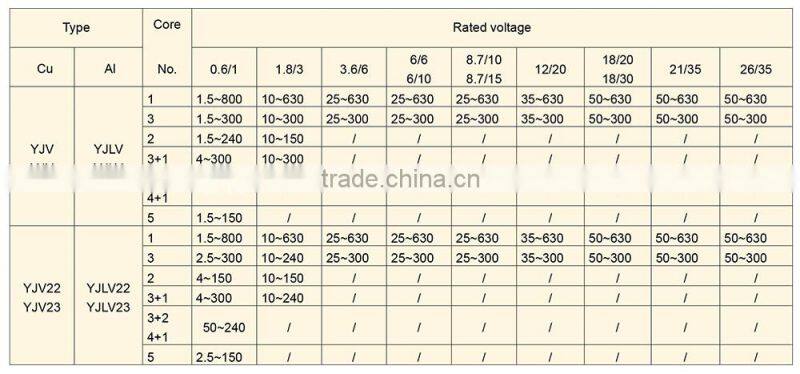

5.Production Scope

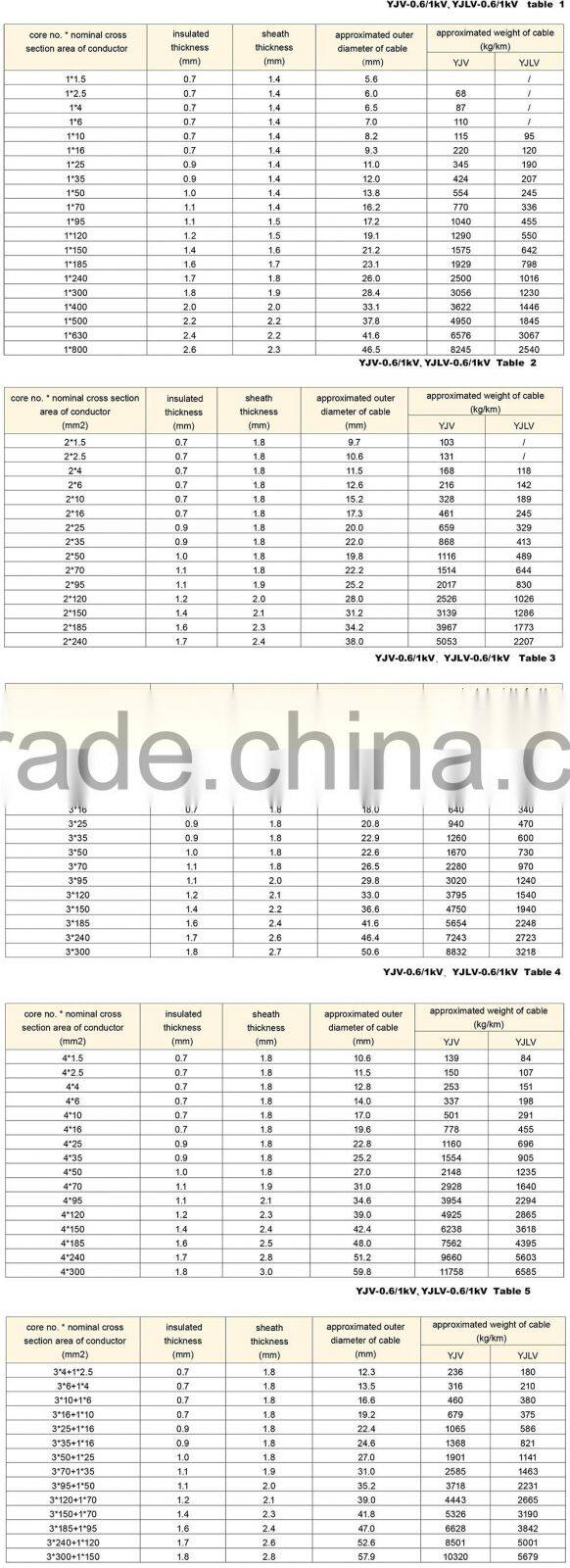

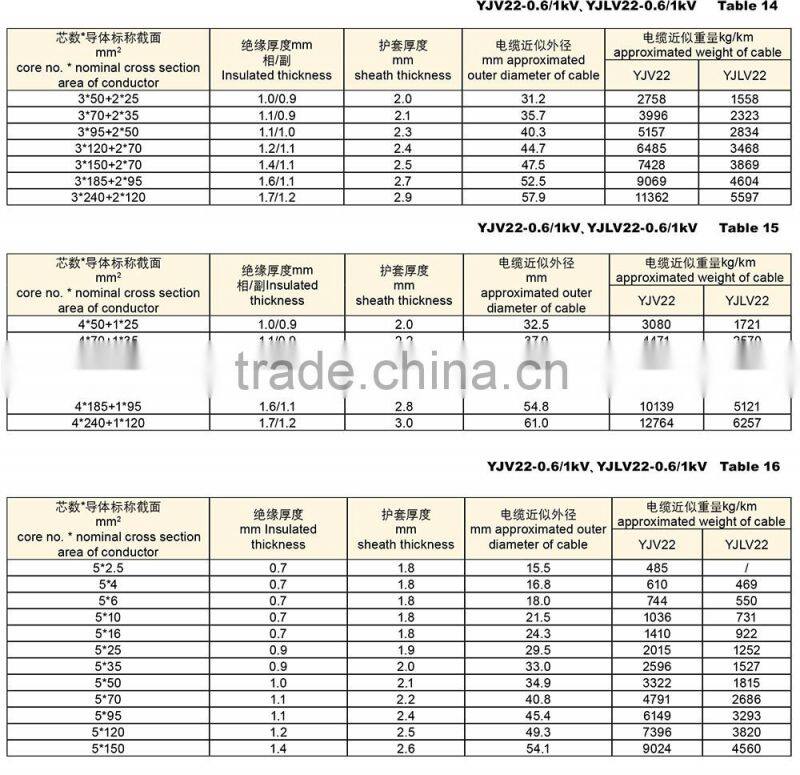

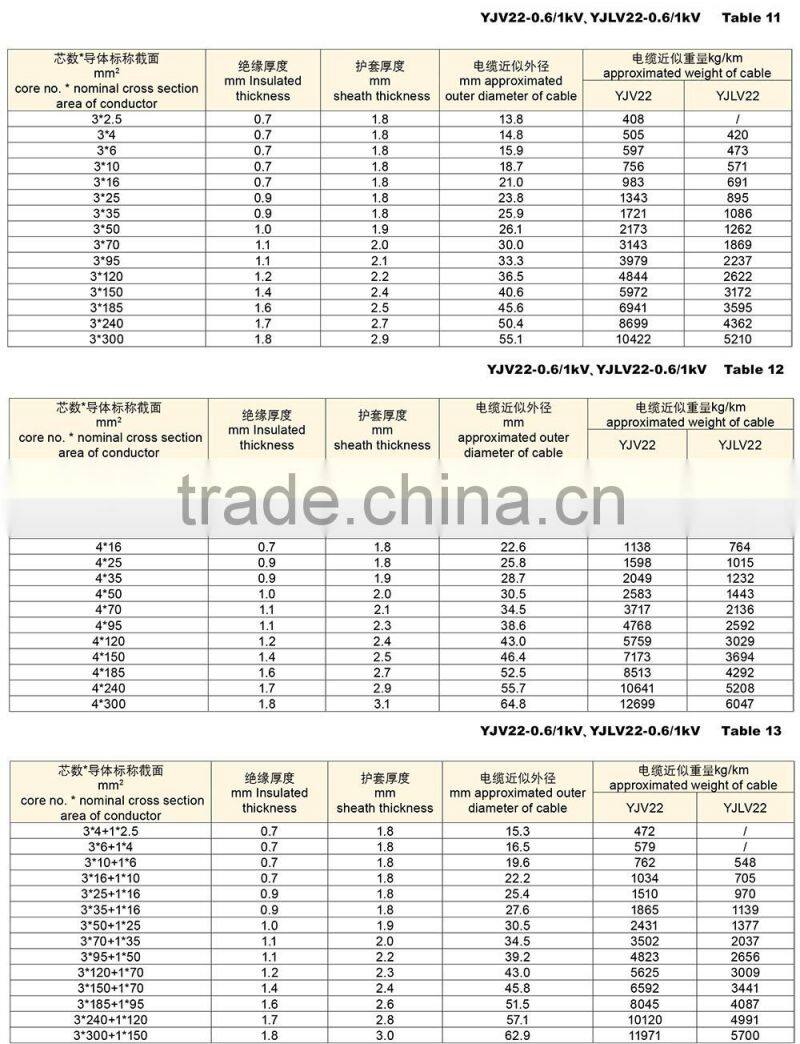

6.OD Size of Cable(OD: outer diameter)

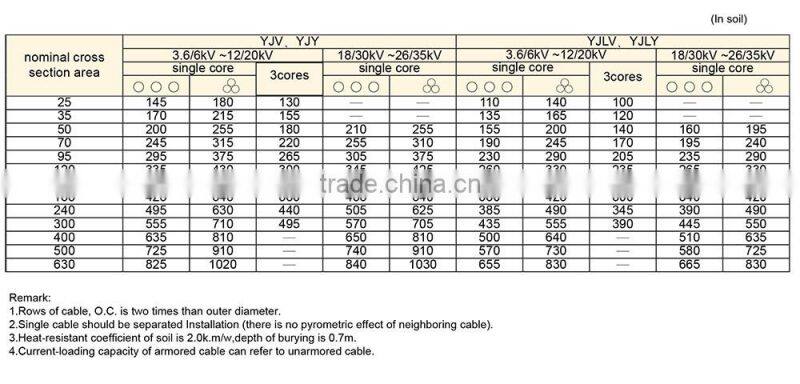

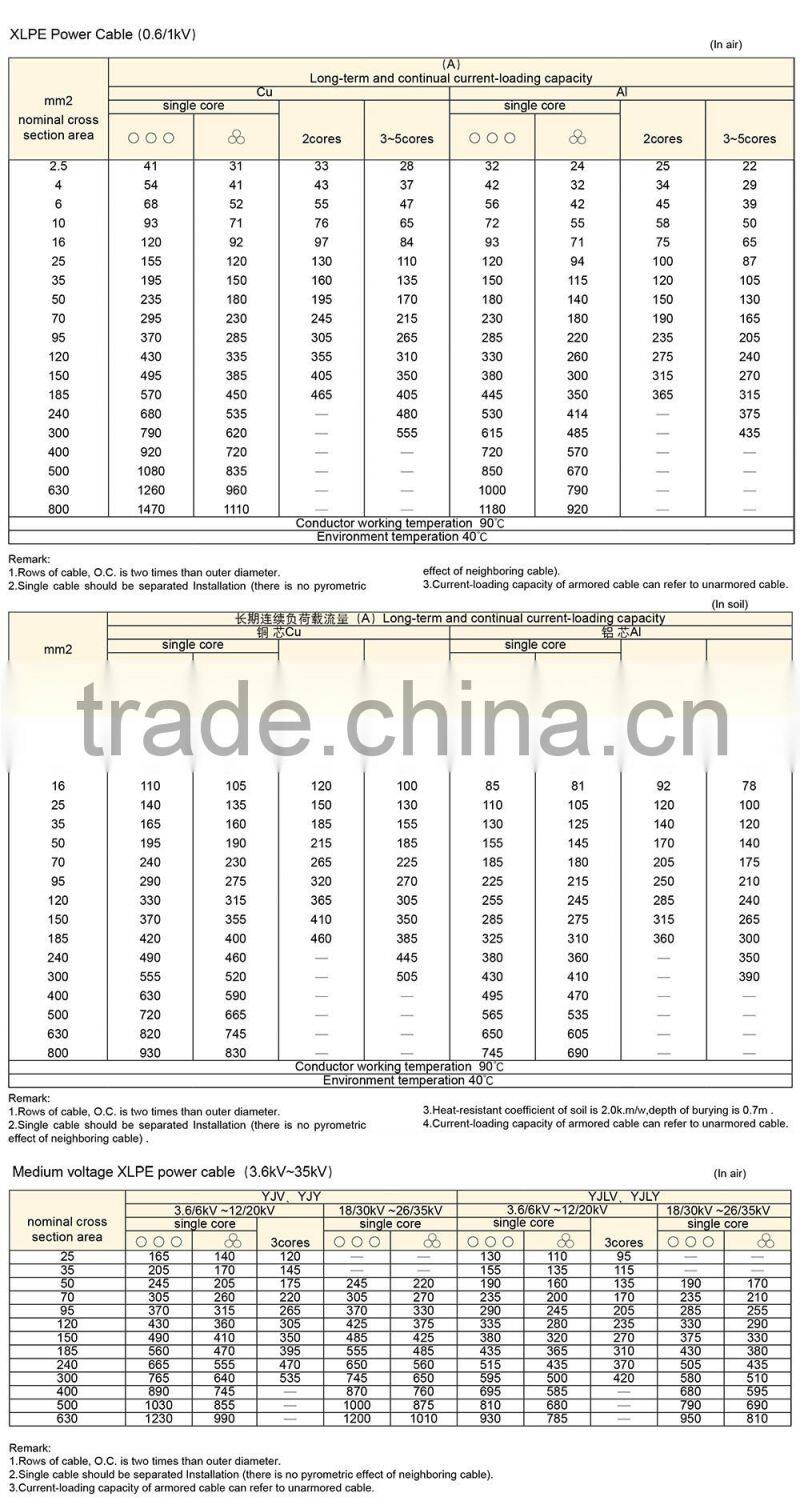

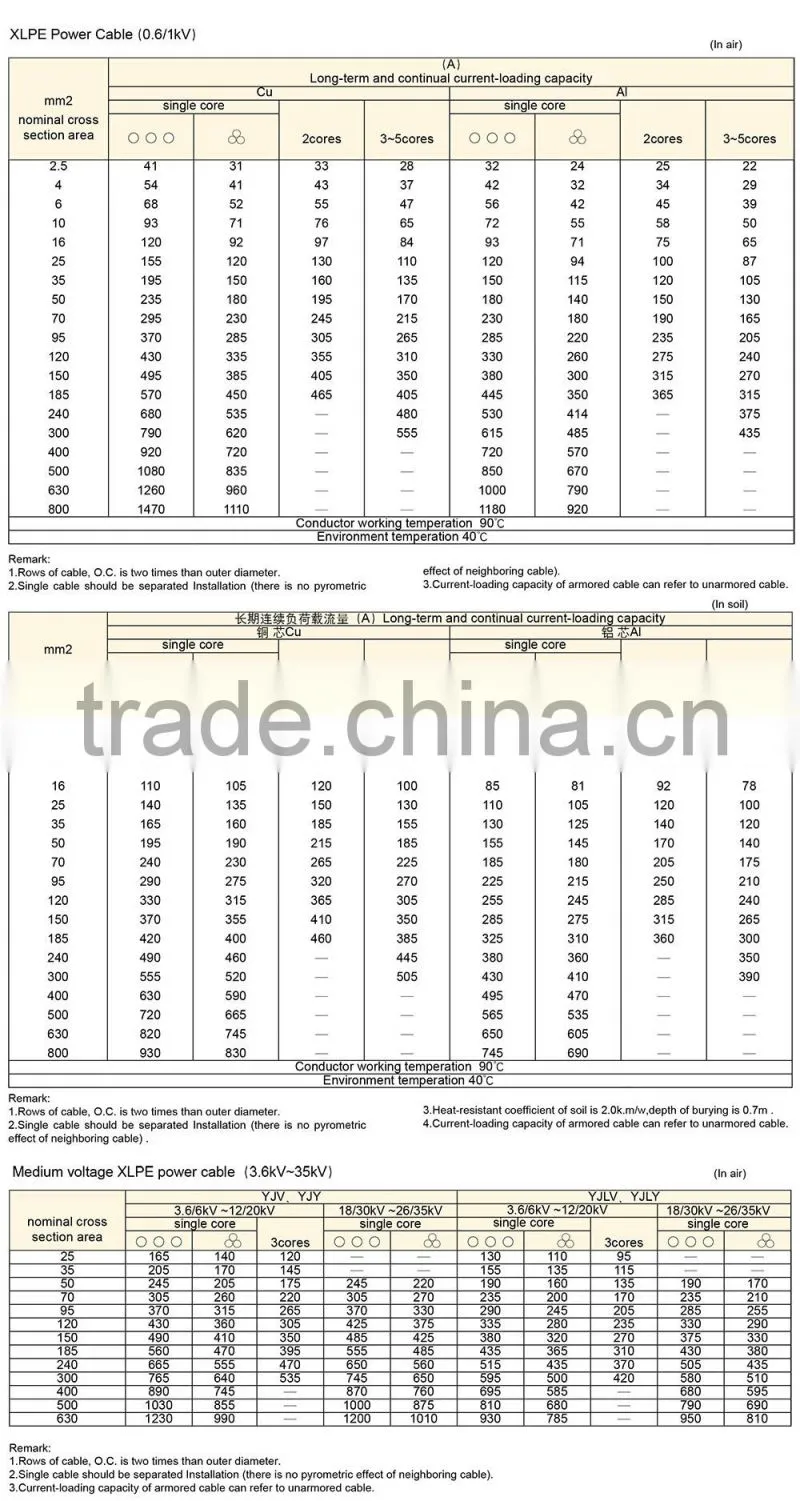

7.Main Technical Parameter of Cable
