Specifications
Double shaft shredder machineProduct Size:TDF, Ruber mulch etc.
Best configuration
Standard:ISO&CE

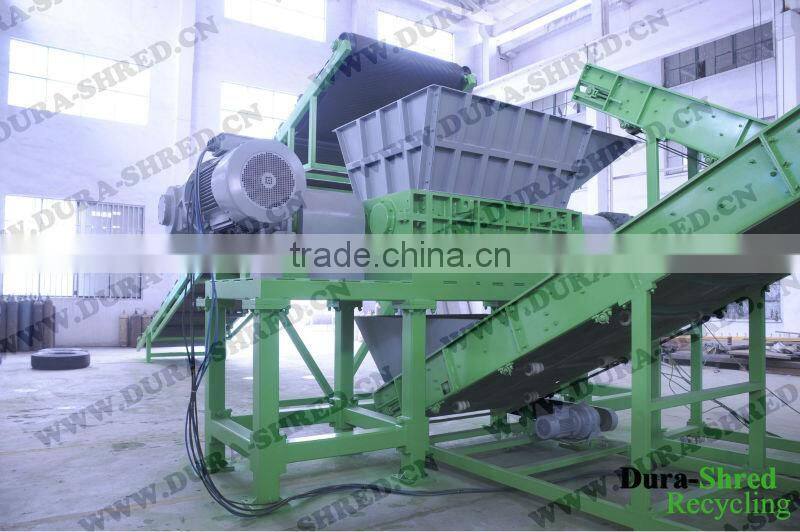

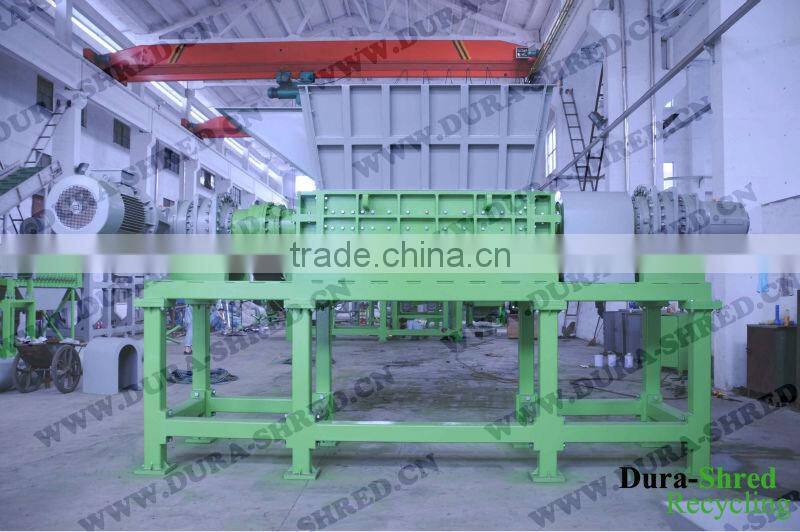

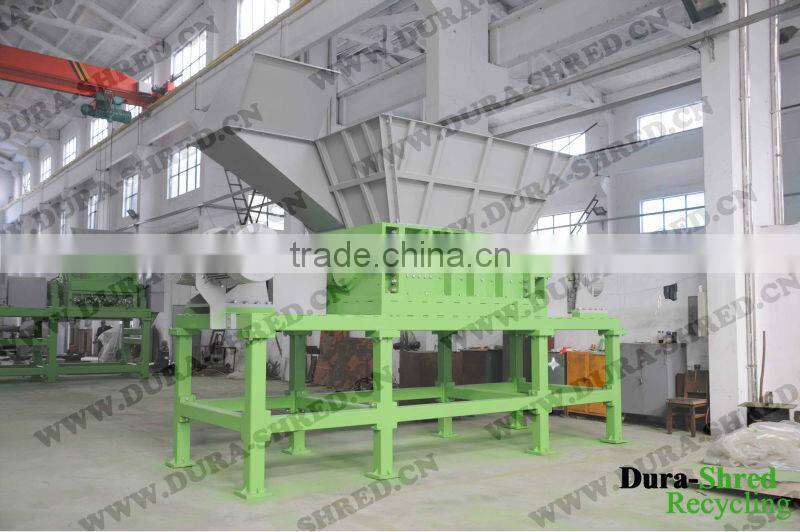

Double shaft shredder machine
Dura-shred has been designing and manufacrturing equipments for recycling industry since 2001 and is emerging as a leader in providing customized turnkey recycling systems in Size Reduction. We have designed and installed recycling systems in countries all over the world including the US, Canada, South America, Poland, Turkey, Japan and China. These systems are specifically designed and tailored to fit the diverse needs of our global customers. We have our own production plant and assembly facility in China using proven American and European shredding technologies.
Pictures
Discripiton
Handling and shredding of waste tires is one of the greatest challenges facing the recycling world today. Dura-Shred has designed powerful and effective shredding solutions specifically to process waste tires. Our shredders use a low speed, high torque mechanism for powerful reduction of passenger tires, truck tires, and pre-shredded OTR tires. Due to the increasing demand for secondary products from shredded tires, we offer our customers a complete line of shredders and shredding systems for a wide range of applications and custom engineered systems to deliver optimum production and shred size.
Application
Our double shaft shredder can process materials as below:
- toxic hazardous industrial waste
- industrial waste
- solid urban waste
- bulky waste
- electronic equipment waste
- refrigerator recycling
- waste tires
- plastic recycling
- glas and rock wool
- paper shredding recycling
- hospital waste
- oil filter recycling
- Garbage
- Wood Pallet
Products Introduction
Equipment Specifications
| TSD 2471(182) | TSD 1663(137) | TSD 1651 | |
| Motor | Electric | Electric | Electric |
| Number of Motors | 2 | 2 | 2 |
| KW | 55KW*2 | 45KW*2 | 37KW*2 |
| Voltage | as per customer's request | as per customer's request | as per customer's request |
| Cutting Chamber | Split Chamber | Split Chamber | Split Chamber |
| Large Blade Thickness | 75mm | 75mm | 75mm |
| Small Blade Thickness | 40mm | 40mm | 40mm |
| Blade Diameter | 754mm | 754mm | 754mm |
| Cutting Chamber L*W | 1804*1410 | 1604*858 | 1304*858 |
| Equipment Dimentions L*W*H | 5876*2310*3493 | 5464*2624*3040 | 4280*2206*2492 |
| Equipment Weight | 22400kg | 13700kg | 12500kg |
| Hopper Opening L*W*H | 3711*2438*1046 | 2835*1628*770 | 2335*1628*770 |
| Capacity | 15-20 T/h | 10-15 T/h | 5-10 T/h |
| Product Size Range | 75mm strips-40mm chips | 75mm strips-40mm chips | 75mm strips-40mm chips |
Dura-shred's advantage
- Exclusive Control System --- Controls and operates the entire plant from its centrally lacated position and provides instant visibility to what each machine is doing in real time.
- Uniq Stop/ Auto reversal Feature --- Protects against overfeeding and damage by non-processable items.
- Advanced Bearing Housing --- Isolates bearings from cutting chamber contamination and protects agaist bearing failure.
- Premier Full Turnkey Systems --- Plant is manufactured, shipped, installed and ready to start recycling.
- Warranty --- One of the best warrantees in the industry.
If you have any questions, please inquire us freely!
