Specifications
1stc three phase generator2 factory, manafacturer
3 CE, ISO approved,
4 low fuel consumption

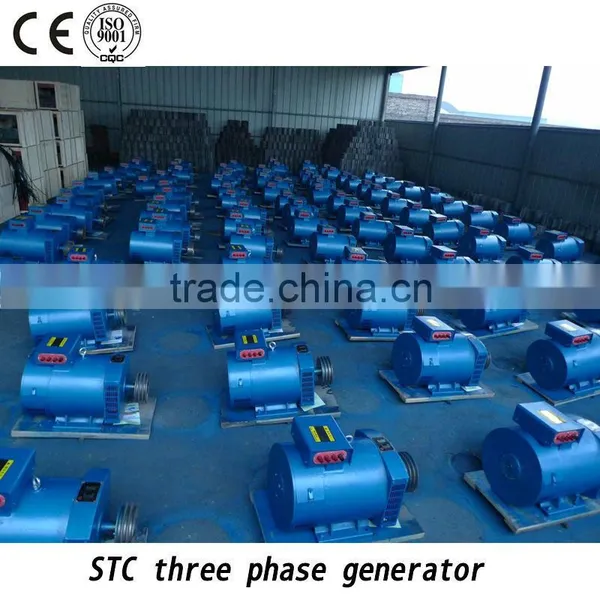

stc three phase generator
1stc three phase generator
2 factory, manafacturer
3 CE, ISO approved,
4 low fuel consumption
|
STC 3 phase generator Introduction 1.The construction of this series generators is of drip-proof with rotary field typeIP23. the stator insulation is of class B (or F)and rotor insulation is of class B . | ||||||||||||
|
2.The manufactures of generator are adopted standard JB/T8981-1999 and also meet the dimensions of IEC standard. | ||||||||||||
|
3. The generators adopt harmonic excitation system, safe, easy and reliable in operation and maintenance. | ||||||||||||
|
4.The series of three-phase,four-wire type, adopting star connection with neutral point, the rated line voltage is 400V,phase voltage 230v, frequency 50HZ,power factor 0.8lag. we can also provide 60hz generators if you requested. |
|
Technical data |
||||||||||
| Model | Output (kw) | Voltage | Reted current | Power factor | Speed | Freq | Pole | |||
| kva | kw | (V) | (a) | (cosφ) | (r/min) | (HZ) | ||||
| STC-3 | 3.8 | 3 | 400/230 | 5.4 | 0.8 | 1500 | 50 | 4 | ||
| STC-5 | 6.3 | 5 | 9 | |||||||
| STC-7.5 | 9.4 | 7.5 | 13.5 | |||||||
| STC-8 | 10 | 8 | 14.4 | |||||||
| STC-10 | 12.5 | 10 | 18.1 | |||||||
| STC-12 | 15 | 12 | 21.7 | |||||||
| STC-15 | 18.8 | 15 | 27.1 | |||||||
| STC-20 | 25 | 20 | 36.1 | |||||||
| STC-24 | 30 | 24 | 43.3 | |||||||
| STC-30 | 37.5 | 30 | 54.1 | |||||||
| STC-40 | 50 | 40 | 72.2 | |||||||
| STC-50 | 62.5 | 50 | 90.2 | |||||||
