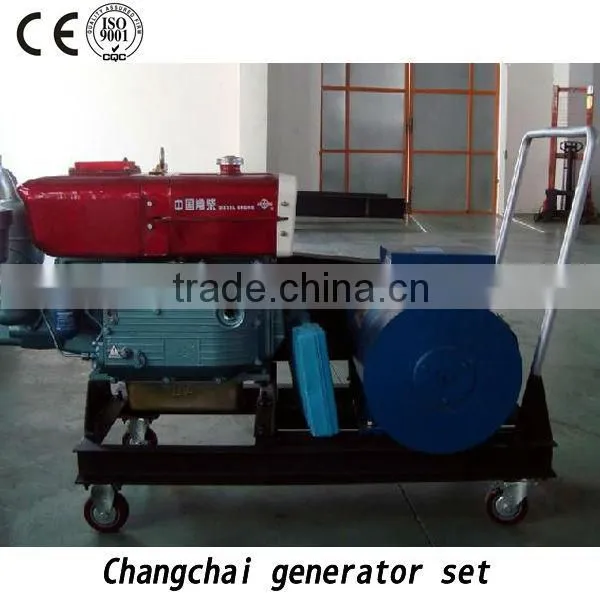

Changchai Generator Diesel 10kva With Price

Name: Changchai Generator Diesel 10kva With Price
Brand: Leiming
SKU: 109193363
Availability: InStock

US$ 485 - 790 MOQ: 1 Set

Key Specifications

Place of Origin:

Henan, China

Brand Name:

Leiming

Model Number:

LGF-8

Zhengzhou Leiming Power Equipment Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name Leiming

Model Number LGF-8

Specifications

1 10kva changchai portable generators
2 CE/ISO9001-2008 factory
3 OEM Service
4 1 year/1000h warranty
5 Reliable qualit

Changchai generator diesel 3kva with price

1 10kva changchai portable generators
2 CE/ISO9001-2008 factory
3 OEM Service
4 1 year/1000h warranty
5 Reliable qualit

Technical data
Genset Model	JHC-8GF
Prime Power	8KW/10KVA
Rated Voltage	400/230V
Frequency	50/60Hz
Power Factor	0.8(lagging)
The regulating rate of steady voltage	≤±0.5%
The regulating rate of instantaneous voltage	≤-15%/ +20%
The time of steady voltage	≤1.5sec
The waving rate of voltage	≤1.0%
The regulating rate of steady frequency	≤3%
The regulating rate of instantaneous frequency	≤±10%
The time of steady frequency	3sec
Dimension (L×W×H) (mm)	1150650900
Genset weight (kg)	330
Diesel Engine
Brand	Changchai
Mode	S195M
Number of Cylinde	1
Rotating Speed	1500/18000RPM
Cycle	Four stroke
Type	waste gas turbine boost,direct spurting type
Bore×Stroke(mm)	95*115
Displacement(L)	1.63

Speed Governor	Electrical
Cooling System	Water-cooled
Speed Stability (%)	≤5%
Fuel Consumption at 100% Load	265 g/kw.h
Starting Method	DC24V Electrical starting
Alternator
Brand	STC
Model
Number of Phase	3
Connecting Type	Three Phase and Four Lines
Number of Bearing	1
Grading Protection	IP22
Altitude	≤1000m
Exciter Type	Brushless (AVR automatic voltage regulating)
Insulation Class	H degree
The components of the genset
(1) Changchai Diesel Engine; (2)Qianghui Alternator; (3) Control Panel
Control Panel
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.
