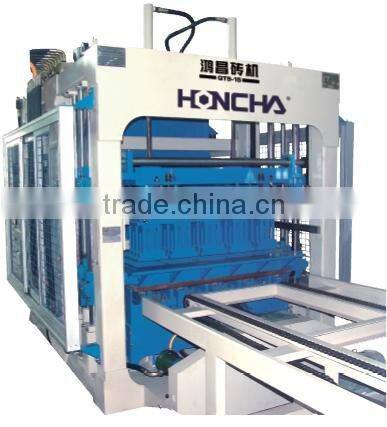

HONCHA SIMPLE PRODUCTION LINE(QT8-15 BLOCK MACHINE)
- 100 Set / Sets per Month
- Xiamen China
- T/T
Product Details
Type: | Hollow Block Making Machine | Brick Raw Material: | Other, CEMENT ,SAND ,GRAVEL,INDUSTRIAL WASTES, FALY ASH AND SO ON | Processing: | Brick Molding Machine |
Method: | Hydraulic Pressure | Automatic: | Yes | Place of Origin: | Fujian, China |
Brand Name: | HONCHA BLOCK MACHINE | Model Number: | QT6-15,QT8-15 ,QT9-15,QT12-15 |
Product Description
Specifications
BRICK MAKING MACHINE , AUTOMATIC BLOCK MACHINE ,HOLLOW BLOCK MAKING MACHINE ,HOLLOW BRICK MACHINE, PAVING BLOCK MAKING MACHINEOur differences:
Honcha - Biggest block machine manufacturing base and most reputable block machinery manufacturer in china
Offering first-rate prducts and best pre ,in and after-sales services:
Products gained ISO 9001;2000,ISO14001;2004 and CE certificates
Using reliable certified international brands for key parts of the machine ( such as the PLC system ) from Siemens ,Omron ,Mitsubishi,Emerson and Dakin
Product advice service and complete factory projects including assembly and commissioning by our own qualified technicians
Fluent English ,Russian ,Chinese Mandarin and Cantonese services to completely understand our customer needs .
The MULTI-FUNCTIONAL Honcha block machineries are designed to meet the mass production of various kinds of blocks ,such as pavers, hollow blocks, kerbstones, interlocking bricks, plantable blocks, retaining blocks and slope stones and so on by CHANGING MOULDS ONLY.

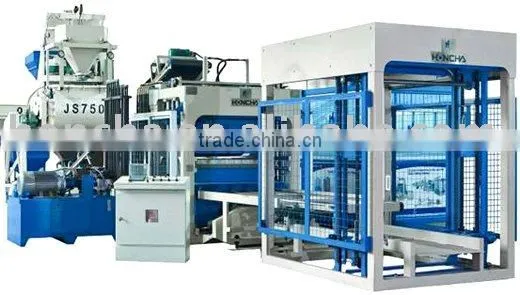

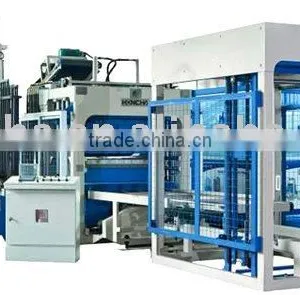

Our SIMPLE PRODUCTION LINE is designed to allow our customer to begin production using a fully automatic block machine for the lowest cost. The production line is fully customisable and can be upgraded with added extras to increase the automation.
Standard SIMPLE PRODUCTION LINE
Batching and Mixing System
The batching and mixing system consists of a multi-compartment batching station which automatically weighs and conveys the aggregate to the compulsory mixer. The cement then is transported from the silo using a screw conveyor and automatically weighed at the mixer. Once the mixer has completed its cycle the concrete will be conveyed to the fully automatic block machine system.
Concrete Block Making System
The concrete is pushed into place by a feeder box and spread evenly into the bottom mould. The top mould is then inserted into the bottom mould and then use synchronized table vibration from both moulds to compact the concrete into the desired block.
Finished product handling
Pallets of fresh blocks are cleaned and loaded into the Automatic Stacker. The stacked blocks are transported by folklift to be cured depending on a number of factors.
Spare Part Upgrade
We offer a selection of predesigned spare part upgrade packages to help with the customization.
l ðMotors upgrade
l ðHydraulics upgrade
l ðControl system accessibility upgrade
l ðMotor vibration upgrade
l ðEU SKF Bearings upgrade
If the upgrade packages do not satisfy your needs we can customise the machinery to your specification
HCM6-15 BLOCK MACHINE TECHNICAL SPECIFICATION
Main Dimension(L×W×H) | 3100×2050×2550(mm) |
Useful Moulding Area(L×W×H) | 800×600×40~200(mm) |
Pallet Size(L×W×H) | 850×680×25(mm) |
Pressure Rating | 12~25Mpa |
Vibration | 50~90KN |
Vibration Frequency | 2900~5600r/min |
Cycle Time | 20s(5s extra for face material adding) |
Power(Total) | 33.2kw |
Gross Weight | 6.8T |
