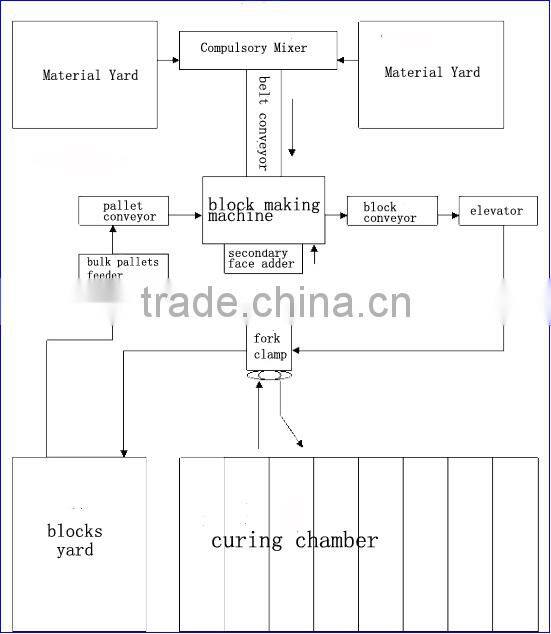

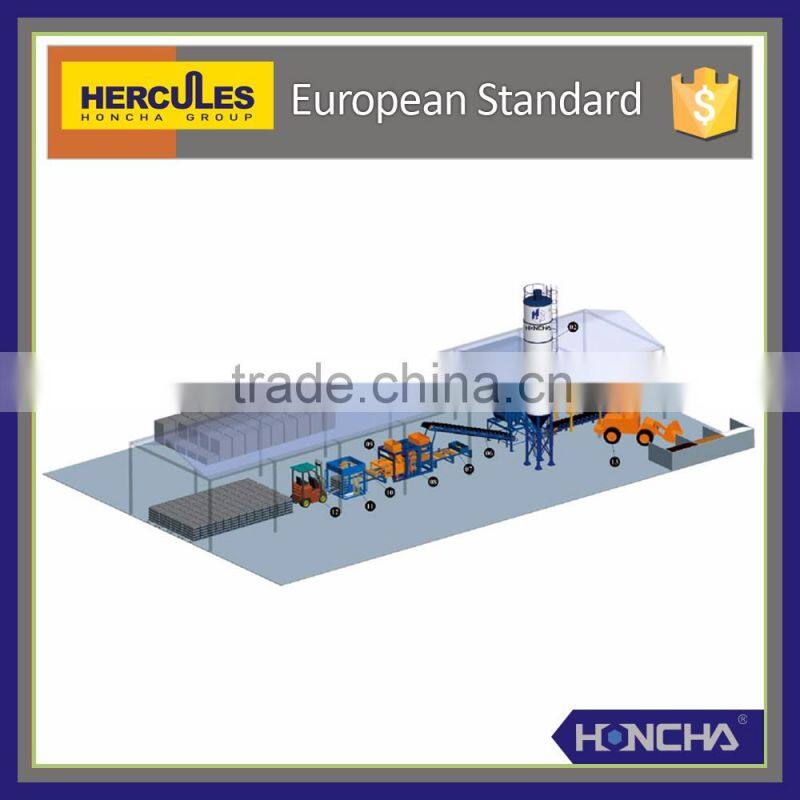

Simple production line
Model |
item |
390×190×190 |
240×115×90 |
200×100×60 |
240×115×53 |
||||
HCQ6-15 |
Molding Capability |
6 |
15 |
21 |
30 |
||||
U8-15 |
6+2 |
20 |
22 |
40 |
|||||
QT9-15 |
9 |
25 |
30 |
50 |
|||||
QT12-15 |
12 |
30 |
42 |
60 |
|||||
HCQ6-15 |
Hourly capacity (pcs) |
1260 |
18m³ |
3150 |
8m³ |
5040 |
100m² |
7200 |
10m³ |
U8-15 |
1680 |
24m³ |
4200 |
10m³ |
5280 |
106mm² |
9600 |
14m³ |
|
QT9-15 |
1890 |
27m³ |
5250 |
13m³ |
7200 |
144m² |
12000 |
18m³ |
|
QT12-15 |
2520 |
35m³ |
6300 |
16m³ |
10080 |
202m² |
14400 |
21m³ |
|
HCQ6-15 |
Daily capacity (pcs) double class 16 hours |
20160 |
284m³ |
50400 |
125m³ |
80640 |
1613m² |
115200 |
168m³ |
U8-15 |
26880 |
379m³ |
67200 |
167m³ |
84480 |
1689m² |
153600 |
225m³ |
|
QT9-15 |
30240 |
426m³ |
84000 |
208m³ |
115200 |
2304m² |
192000 |
281m³ |
|
QT12-15 |
40320 |
568m³ |
100800 |
250m³ |
161280 |
3225m² |
230400 |
337m³ |
|
HCQ6-15 |
Yearly capacity |
605 |
80000m³ |
1512 |
40000m³ |
2419 |
480000m² |
3456 |
50000m³ |
U8-15 |
806 |
110000m³ |
2016 |
50000m³ |
2534 |
500000m² |
4608 |
60000m³ |
|
QT9-15 |
907 |
130000m³ |
2520 |
60000m³ |
3456 |
690000m² |
5760 |
80000m³ |
|
QT12-15 |
1210 |
170000m³ |
3024 |
70000m³ |
4838 |
960000m² |
6912 |
100000m³ |
|
model Parameter |
Useful moulding area(mm) |
Pallet size(mm) |
Main dimension(mm) |
power(kw) |
Gross weight(T) |
HCQ6-15 |
800×600×40~200 |
850×680×25 |
2900×2140×2650 |
28 |
6.8 |
U8-15 |
1250×550×40~200 |
1380×580×30 |
2800×2660×2800 |
30 |
9.6 |
QT9-15 |
1280×600×32-200 |
1380×680×30 |
3120×2020×2700 |
45 |
10.5 |
QT12-15 |
1280×850×40~200 |
1380×880×30 |
3200×2020×2750 |
47 |
12.6 |
1. Pallet thickness use Bamboo Plywood as example. 2. The above data is the reference value, please refer to the factory specification. | |||||
1. hollow blocks:specification:390×190×190mm
quality:Compression strength can be greater than 10Mpa(Can add a certain amount of fly ash, the ratio of about 30%)
2.perforated blocks:specification:240×115×90mm
quality:Compression strength can be greater than 15Mpa (Can add a certain amount of fly ash, the ratio of about 30%)
3.bricks:specification:240×115×53mm
quality:Compression strength can be greater than 15Mpa (Can add a certain amount of fly ash, the ratio of about 30%)
loured pavement brick:specification:200×100×60mm
qality:Compression strength can be greater than 30Mpa
