Specifications
BRICK MAKING MACHINE , AUTOMATIC BLOCK MACHINE ,HOLLOW BLOCK MAKING MACHINE ,HOLLOW BRICK MACHINE, PAVING BLOCK MAKING MACHINEOur differences:
Honcha - Biggest block machine manufacturing base and most reputable block machinery manufacturer in china
Offering first-rate prducts and best pre ,in and after-sales services:
Products gained ISO 9001;2000,ISO14001;2004 and CE certificates
Using reliable certified international brands for key parts of the machine ( such as the PLC system ) from Siemens ,Omron ,Mitsubishi,Emerson and Dakin
Product advice service and complete factory projects including assembly and commissioning by our own qualified technicians
Fluent English ,Russian ,Chinese Mandarin and Cantonese services to completely understand our customer needs .
The MULTI-FUNCTIONAL Honcha block machineries are designed to meet the mass production of various kinds of blocks ,such as pavers, hollow blocks, kerbstones, interlocking bricks, plantable blocks, retaining blocks and slope stones and so on by CHANGING MOULDS ONLY.

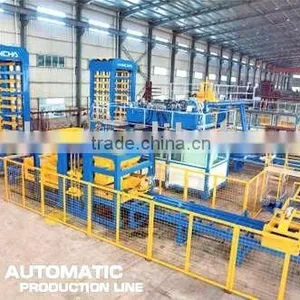

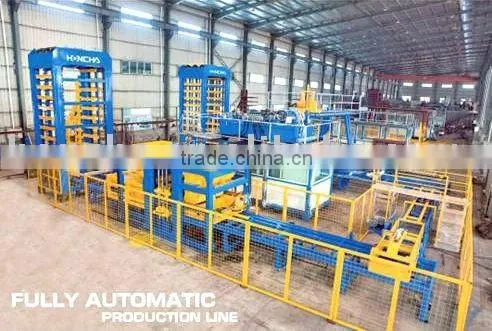

Batching and Mixing Plant
The batching and mixing system consists of a multi-compartment batching station which automatically weighs and conveys the aggregate to the compulsory mixer. The cement then is transported from the silo using a screw conveyor and automatically weighed at the mixer. Once the mixer has completed its cycle the concrete will be conveyed to the fully automatic block machine system.
Block Machine
The concrete is pushed into place by a feeder box and spread evenly into the bottom mould. The top mould is then inserted into the bottom mould and then use synchronized table vibration from both moulds to compact the concrete into the desired block.
Pallet Elevator
The Fresh blocks are cleaned and then transported to the elevator system. It can be manufactured to be from nine to twelves levels high.
Finger Car System
The finger car system is build to the same level as the elevator system and is designed to withstand the strain of uploading a max capacity elevator of blocks or pavers. It will transport and unload the pallets of blocks into curing chamber for a pre-set time based on the factory’s geographic location. Then blocks will be unloaded and transported to the lowerator.
Pallet Lowerator
When the pallets have been fully loaded into the lowerator, every level is automatically unloaded on to the pallet return system and aligned ready for the cubing system.
Automatic Gantry Type Block Cubing System
The cubing system will collect the blocks and pavers and transfer them to the block exit system. It can be operated with 360 degree horizontal movement.
Work on Details
The QT9-15 block machine techinacal data are as follows:
Moulding cycle: 11-20s( extra 5-8s for face mix
Production capacity:22.5m3/hour
Pall et dimensions:1380×680×30mm
Effective moulding area:1280×600mm
Product height:30-200mm
Overall dimensions:6100×3500×2950mm
Gross weight:appro10.5t
Vibration frequency:2900-5600r/min
Excitation force:50-90kn
Total power:43.18kw
Rated compressive strength:12-25mpa
