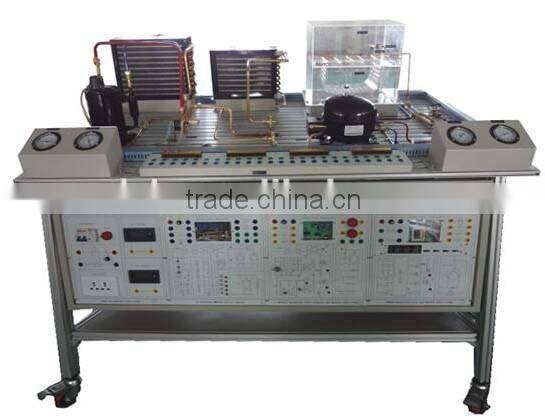

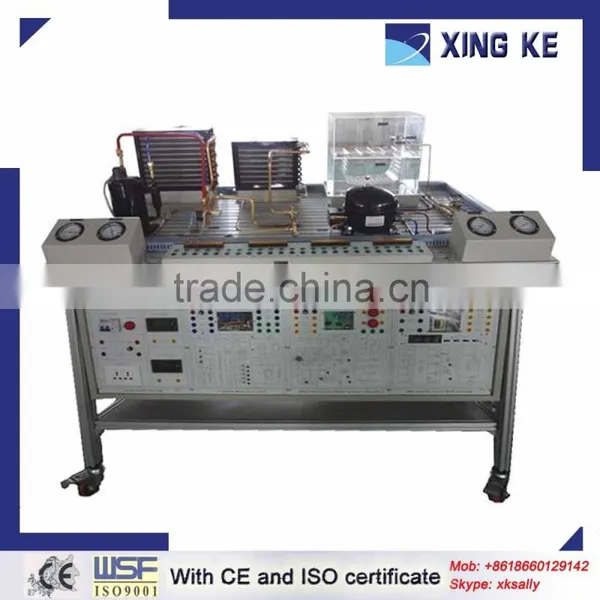

Air Conditioner Refrigeration Comprehensive Training Bench/XK-ZLZR1/Educational equipment
1. Overview
Device is designed for deepen student ability such as, refrigeration system and air condition pipe design and installation, electrical wiring, working condition debug, refrigeration tools application, etc.
Device constitutes with air condition system and refrigeration system. Electrical system and pipe system independent divides, electrical control system constitutes with power supply module with leakage protection, heat-cooling pump air condition electrical control module, digital temperature control refrigeration electrical control module and intelligent temperature control type refrigeration electrical control module. Pipe system divides into heat pump air condition and refrigeration, installed at bench of aluminum material, device with 2 liquid level meter, 4 sets high/low pressure meters. Training device installed with 4 universal wheels, easy to move.
2.Technical parameter
1) Working power supply: single phase three wires AC 220V ±10% 50Hz
2) Environmental temperature: -50C-400C
3) Relative humidity: ≤85% (250C)
4) Entire power: <1KW
5) Dimension: 1500mm×850mm×1320mm
6) Weight: 80Kg
7) Power supply main switch with leakage protection time ≤0.1S
8) With voltage, current indicator, power supply indicator, three levels two position socket.

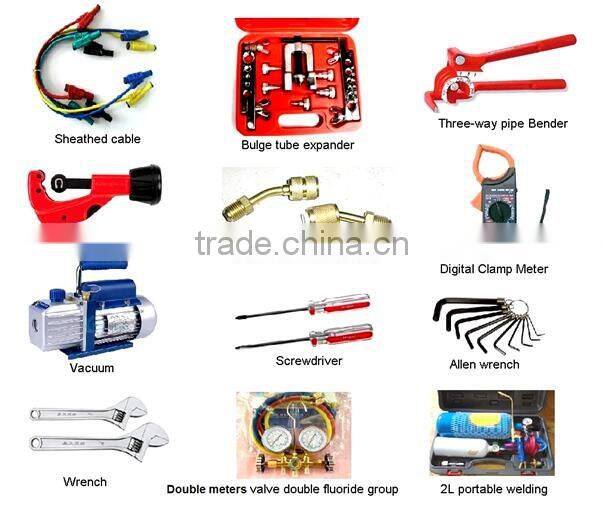

3.Practical training device accessories (non-standard)
1)Power supply wires: 1 set
2)Sheath cable: 40 pcs
3)Tube expanding flaring kit: 1 set
4)Three use pipe bender: 1 set
5)Pipe cutter: 1 set
6)Digital display clamp on amperemeter: 1 set
7)Vacuum pump: 1 set
8)Clybum spanner: 2 sets
9)Screwdriver: 2 sets
10)Double table valve fluorine filling table groups: 1 set
11)Metric conversion connection: 2 sets
12)Allen wrench: 1 set
13)2L portable gas welding: 1 set
4.Functions
1)Understand R600A refrigeration system operation attentions
2)Understand refrigeration system each main components structure and principle
3)Understand heat pump type air conditioner heat/cooling working principle
4)Understand electronic temperature control type refrigerator working principle
5)Understand intelligent temperature type refrigerator working principle
6)Master air condition, refrigeration system leakage detecting, pressure holding practical training
7)Understand heat pump type air condition electrical control system principle
8)Master heat pump type air condition electrical control wiring practical operation
9)Master heat pump air condition vacuum pumping and filling refrigerant practical operation
10)Understand electrical temperature control refrigerator electrical control system principle.
11)Master electrical temperature control refrigerator electrical wiring practical operation
12)Master refrigerator system vacuum pumping and filling refrigerant practical operation
13)Understand intelligent temperature control refrigerator function
14)Understand intelligent temperature control refrigerator electrical control system principle
15)Master intelligent temperature control refrigerator electrical control wiring practical operation
16)Understanding heat pump type refrigerator non-cooling (non-heating) or cooling (heating) effect fault and determination method
17)Understand refrigerator refrigeration system non-cooling or cooling effect fault determination method
