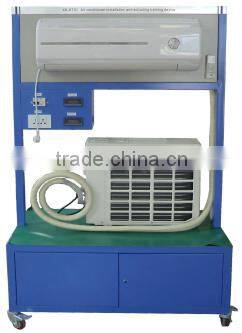

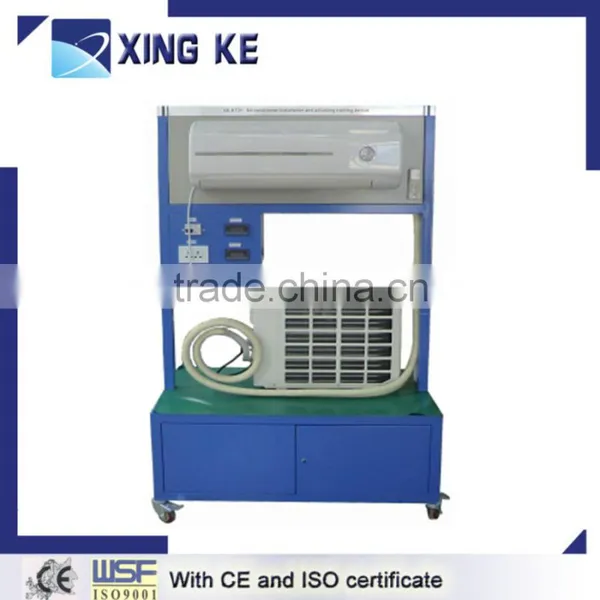

XK-KT01 AIR CONDITIONER INSTALLATION AND ADJUSTING TRAINING DEVICE
PRODUCT INTRODUCTION
The device is mainly described household air conditioner installation, adjusting operation method and the refrigeration specialized tool’s usage and operation. Can learn the household air conditioner working principle, maintenance, repair and relative knowledge
The device is mainly included household heat pump type wall-mountable air conditioner, vacuum pump, percussion drilling, portable gas welding, tube expanding flaring kit, hammer, screwdriver, adjustable wrench, pliers, spirit level, pincer like multimeter, fluorine filling double meters, inner hexagon spanner, thermometer, tool box, etc, the device is equipped with 4 universal direction wheel which make the device convenient to move.
TECHNICAL PARAMETER
Input power supply: single-phase three-wire AC220V ±10% 50Hz
Capacity:<1.5kVA
Size: 1100mm×600mm×1700mm
Refrigerant type: R22
Power supply main switch with earth leakage protection IΔn≤30mA,time≤0.1S
With voltage, current indication and three-pole two-seat socket
Net weight: about 50kg

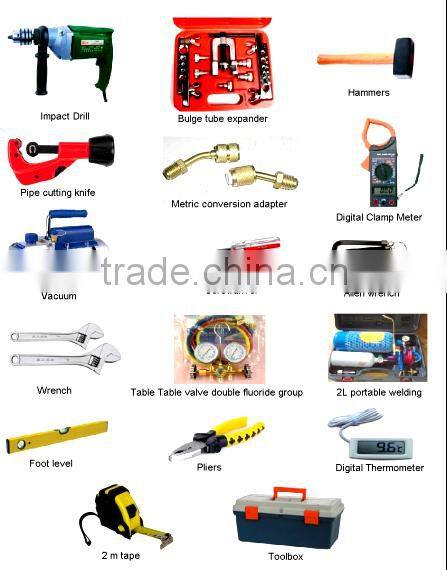

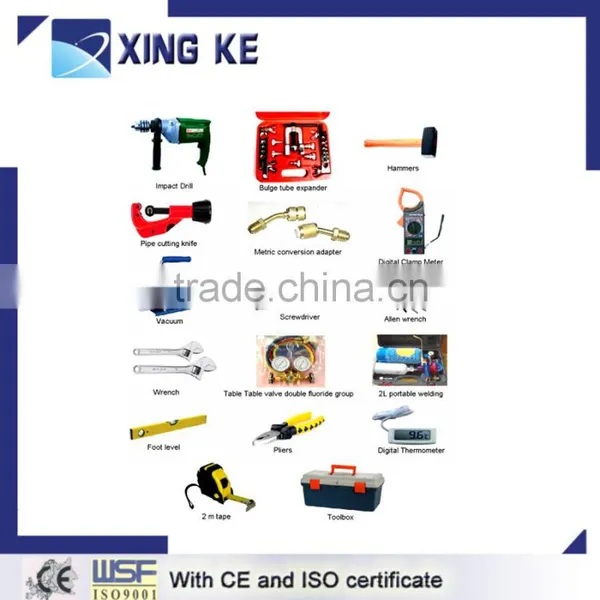

TRAINING ITEMS
Percussion drilling: 1 set
2L portable gas welding: 1 set
Tube expanding flaring kit: 1 set
Hammer: 1pce
Pipe cutter: 1pce
Digital pincer like ammeter: 1pce
Vacuum pump: 1 set
Adjustable wrench: 2pcs
Screwdriver: 2pcs
Double meter value fluorine filling unit: 1set
Metric conversion connector: 2set
Inner hexagon wrench: 1set
Spirit level: 1pce
2 meter flexible rule: 1pce
Plier: 1pce
Digital temperature: 1pce
Tools kit: 1pce
- To understand fission air conditioner structure
- To understand air conditioner refrigeration and heating working principle
- To understand refrigeration specialize tools and their usage method
- Air conditioner installation operation notice matters
- Fission air conditioner indoor and outdoor machine installation place selection
- Indoor machine body board mountable operation.
- The notice matters when drilling the wall hole
- The operation and notice matters of connecting indoor machine refrigeration pipeline, cable and water outlet pipe
- The outdoor support fixation installation operation and outdoor machine fixation
- Outdoor machine pipeline, cable connection and evacuation
- Refrigerant leakage detecting operation
- Air conditioner commissioning operation
