XK-ICM-A ICE MACHINE TRAINING EQUIPMENT
PRODUCT INTRODUCTION
Equipment demonstrates the basic system structure composition of ice machine,working principle of ice machine,refrigeration system working principle of ice machine. Students can participates the real ice making process, understand the ice making process through control operation of each procedure and the simulation processing diagram that composed by luminous diode.
Training equipment consists of real water cooled ice making machine and simulation software. Ice making system is equipped with two pumps, two pieces of pressure gauge, water meter, etc.
Electrical control system composed of leakage protector,emergency stop switch,digital display AC voltmeter and AC ammeter,8-way temperature itinerant detector. Etc.
Training equipment installs four universal wheels, convenient for moving.
TECHNICAL PARAMETERS
The power supply: single-phase three-wire AC 220 V ± 10% 50 Hz
Installed capacity:<2kVA
Overall size: 1600*1000*2000mm
Net weight: Approx. 70KG
Refrigerant type: R22
Power main switch with earth leakage protection IΔn≤30mA, time≤0.1S
With temperature display, voltage, current indication and emergency stop button
ACCESSORIES

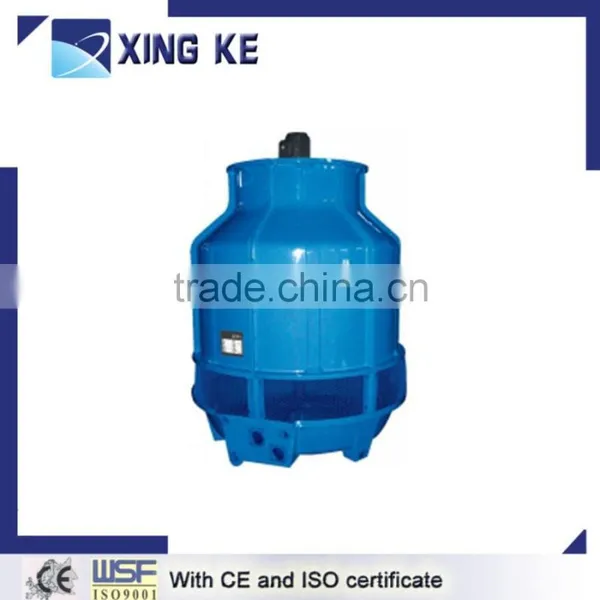

Cooling tower: 1 set
TRAINING ITEMS
- Understanding of structure of ice machine
- Understand the each part structure that constitutes the ice making training set
- Understand the each part function that constitutes the ice making training set
- Understand working principle of ice machine
- Understand working principle of ice machine refrigeration system
- Understand the working principle of device main control electric circuit system
- Operation of ice machine processing
