XK-GCR-B2 PLC CONTROL REFRIGERATION AND HEATING TRAININGEQUIPMENT
PRODUCT INTRODUCTION

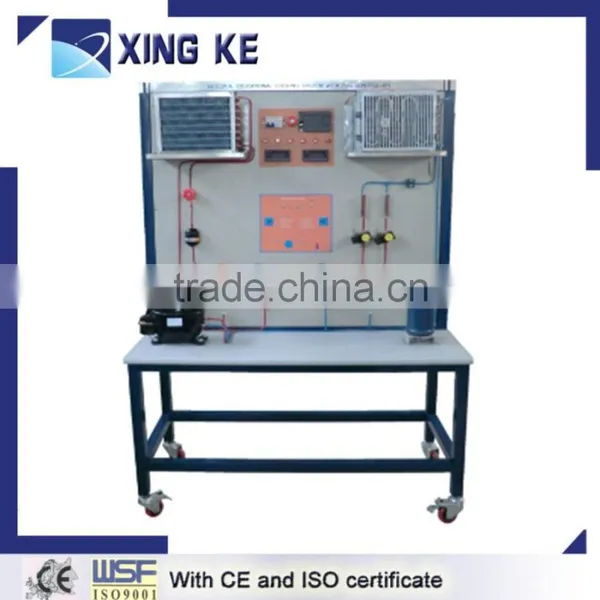

This equipment displays the structure and constitution of refrigerator system, structure and functions of system elements, working principle of system. Trainer also shows how the two throttle components to influence the system performance.
Trainer completes the training of refrigeration system leakage detection, pressure maintenance.
System adopts the PLC control, and communicates with computer. Both computer software and panel buttons could control the operation of equipment.
Equipment consists of real refrigeration elements. Refrigeration system includes gas- liquid separator, pressure protector, pressure gauge and so on. Heating system is equipped with heater, thermostat and temperature fuse. The equipment is equipped with digital display AC voltmeter and AC ammeter to display voltage and current in real time.
The training equipment with 4 universal wheels, which is convenient to move.

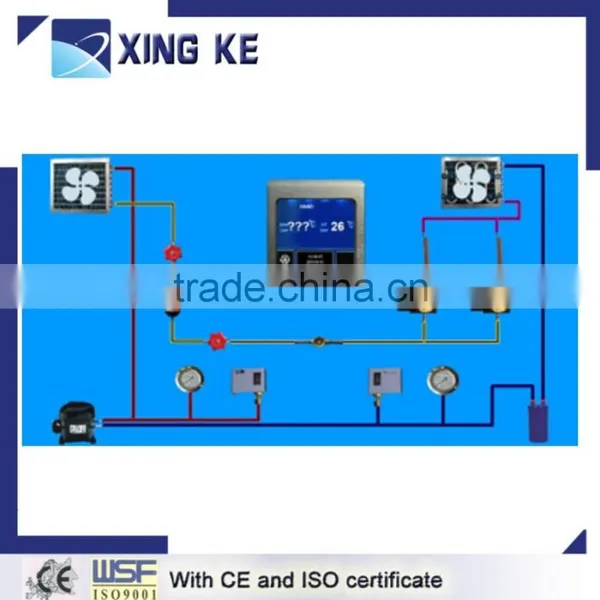

PC software interface
TECHNICAL PARAMETERS
Power source: Single phase three wire AC220V ±10% 50Hz
Installed capacity: <0.8kVA
Refrigerant type: R134a
Overall dimensions: 1250×660×1790mm
Net weight: around 60Kg
Main power switch with leakage protection IΔn<30mA time:<0.1S
With emergency stop button, voltage indicator and current indicator
TRAINING ITEMS
Understanding of the main components of the refrigeration system
To understand the structure and function of the main components of the refrigeration system
Understand the working principle of refrigeration system
Knowledge of circuit system control principle
The practical operation of refrigeration system leakage detection
Pressure maintenance training of refrigeration system
The operation of vacuum pumping in refrigeration system
Charging refrigerant training operation
To know how two kinds of throttling mode to effect on the system performance
PC software operation
