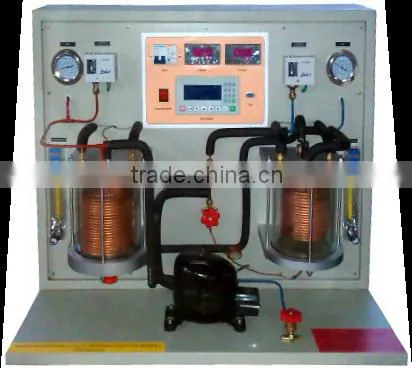

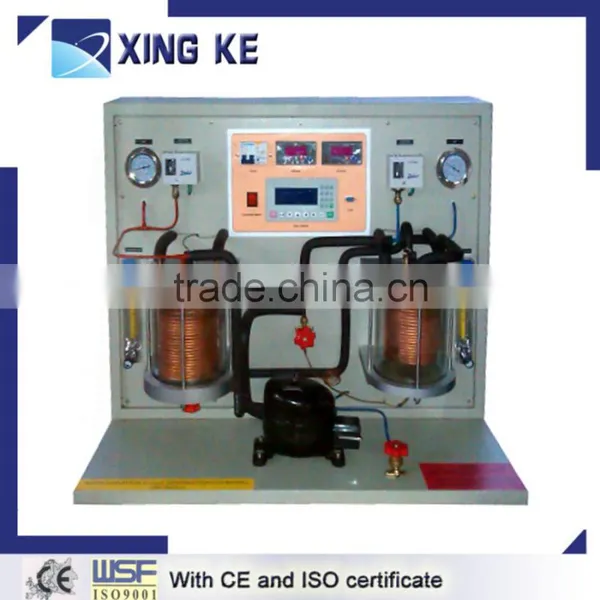

XK-RCD3
REFRIGERATION CYCLE DEMONSTRATION EQUIPMENT
PRODUCT INTRODUCTION
- The refrigeration system parts are directly displayed on equipment, which is convenient for observation and study.
- Transparent evaporator and condenser which provides the chance of observing the evaporation and condensation process and the refrigerant state in the refrigeration work
- Trainer equips with pressure protection switch, so as to prevent damages of equipment, increased safety
- Trainer equips with high and low pressure gauges, liquid mirror, which is used to observe the static pressure and working pressure of the system and the status and direction of the refrigerant
- Trainer equips with two water flow meters to adjust the water flow size
- Trainer equips with voltage meter, ammeter and 8-way temperature digital displayer, used to observe the equipment operating voltage, current value and the temperature of the key points
- The training equipment is provided with 4 universal wheels, which is convenient to move
TECHNICAL PARAMETERS
Input power: Single phase three wire AC220V ±10% 50Hz
Installed capacity: <0.5kVA
External dimensions: 910mm×500mm×850mm
Refrigerant type: R141b
Main power switch with leakage protection
With voltage, current indication and temperature indication
Net weight: around 75Kg
TRAINING ITEMS
- Understanding the components and functions of the compression refrigeration cycle demonstration equipment
- Understand the working principle of refrigeration system
- The compressor refrigeration system leakage detection, pressure maintenance operation training
- The training operation of the vacuum pumping and filling compressor refrigeration
- Refrigeration system cycle demonstration
- Understanding that how the water flow size of condenser and evaporator to influence system
- Thermal analysis and thermal performance calculation of refrigeration system
