XK-DDYB1 Process Automation Instrument Training Device (Electrical Instrument)

Shandong Xingke Intelligent Technology Co., Ltd. Gold Verified Supplier
5Yrs

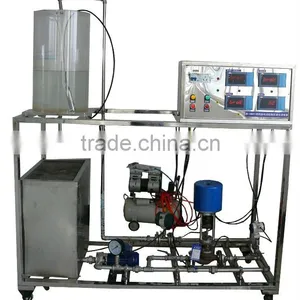

XK-DDYB1 Process Automation Instrument Training Device (Electrical Instrument) thumbnail-1

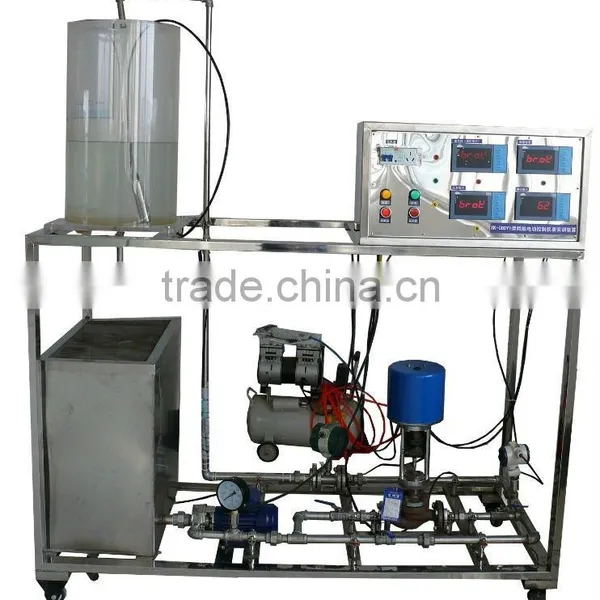

XK-DDYB1 Process Automation Instrument Training Device (Electrical Instrument) photo-1
US$ 100 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
XING KE
Model Number:
XK-DDYB1
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name XING KE
Model Number XK-DDYB1



1. Product overview:

this training device used in industrial  commonly used process control instrument and regulator for main components, in view of the automation, ship automation professional training teaching characteristics, design and development of a set of specific to industrial automation electric control system of  training device, use classic PID control algorithm for the process control level, pressure and flow rate of a few large  parameter closed loop continuous control



2. Main parameters:

Size : 1000 mm x 1500 mm x 600 mm;

The power supply: single phase AC220V, power < 1000 VA.



3. Main components:

(1) controlled object: the stainless steel storage water tank, power system, organic glass water tank, pressure transmitter, flow meter, valve and pipeline etc.

(2) control system: the leakage protector, control switch, the indicator light, electric regulator, switch power supply etc.



4. Main functions:

single closed-loop level control, single closed-loop  the pressure control, single closed loop flow control. Have a safety protection function.



5. Annex:  common tools, the product specification.



6. Training Projects

1) single closed-loop level control

2) a single closed loop pressure control

3) single-loop flow control
