1. Product overview:

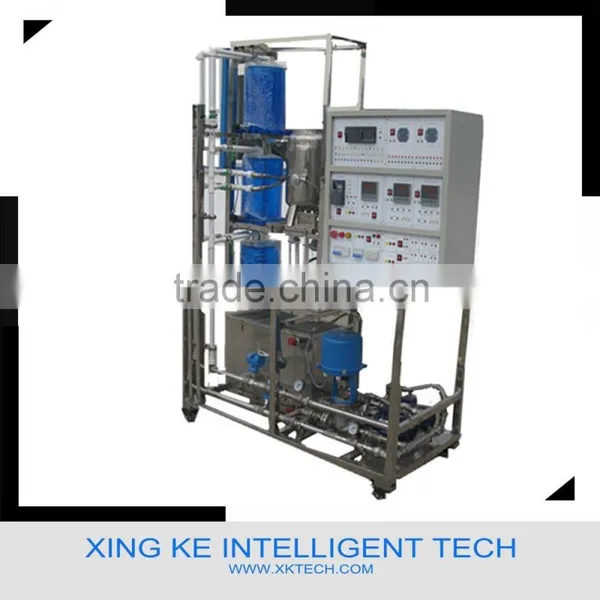

The whole system consists of the experimental object device, instrument control panel, the software system, covers the industry commonly used parameter: temperature, pressure, and flow, liquid level, can realize from single loop, cascade, feedforward-feedback, ratio, lag behind, and the composite control experiment, practice.
2. Main parameters:
Size: 1500 mm x 700 mm x 1900 mm;
The power supply: the three-phase AC380V, power < 3000 VA.
3. Main components:
(1) Controlled object: consists of glass water tank, liquid level transmitter, water pump, electric regulator, turbine flowmeter, stainless steel boiler cans, temperature transmitter etc.
(2) control system: the training platform, PLC, frequency converter, all kinds of control instrument etc.
4. Main functions:
single cubage water tank liquid level mathematical model test experiment practice, double cubage water tank liquid level mathematical model test experiment practice, boiler water temperature characteristics testing experiment practice, single loop control system experiment practice, cascade control system experiment practice, the feedforward-a feedback control system experiment practice, work control configuration software configuration control experiment practice. Have a safety protection function.
5. Annex: Commonly used tools, the product specification.
6. Training Projects
1) Single tank water level mathematical model test experimental and training
2) pairs of tank water level mathematical model test experimental and training
3) single tank water level setpoint control 15 of the experiment and training
4) pairs of tank water level setpoint control 18 of the experiment and training
5) boiler interior water temperature-controlled experiments
6) boiler interior water temperature setpoint control experiment and training
7) single closed-loop flow control experiment and training
8) experimental flow ratio control experiment
9) single closed-loop pressure setpoint control experiment
10) on a water tank water tank level cascade control experiment and training
11) tank level and the inlet flow cascade control experiment and training
12) the boiler interior water temperature and flow feedforward - feedback control experiment and training
13) DDC control system for single-capacity water tank level mathematical model-based testing laboratory
14) smart meter AI-719 introduced
