XK-FSC FLAT SOLAR ENERGY COLLECTOR TRAINER
PRODUCT INTRODUCTION
XK-FSC demonstrates the structure and working principle of flat solar energy collector, it proceeding the thermal performance analysis and calculation through the collecting data.
The heat collection panel is installed on one movable frame, can be regulated the angles at will; also can complete the tilt control, so as to fit the change of light source position.
The equipment equips with temperature sensor, completes the measurement of inflow temperature, outlet water temperature and environment temperature, also can be communicated with computer, at same time on the computer simulation interface show real time temperature.

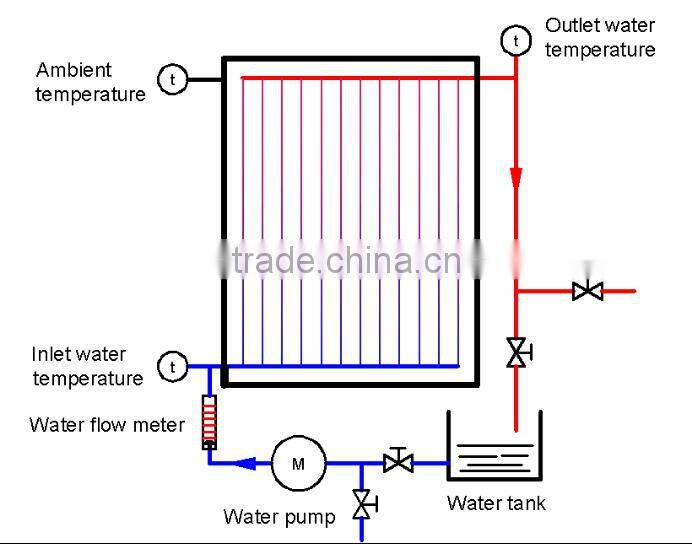

The water way equips with several hand valve switches and water flow meter, the internal water or external water can be cycled work through valve regulation; water flow meter used to display the water flow, regulates the flow by inflow valve or outflow valve.
Equipping with simulative light source to simulates the sun light, regulates the light source luminance though knobs on the control box.
Simulation interface
TECHNICAL PARAMETER
Power: AC220V/50HZ, with leakage protection
Environment temperature: +5~+40℃
TRAINING PURPOSE
Learning structure and composition of flat solar energy collector device
Understanding structure and working principle of flat solar energy collector
Master the thermal performance analysis of flat solar energy collector.
