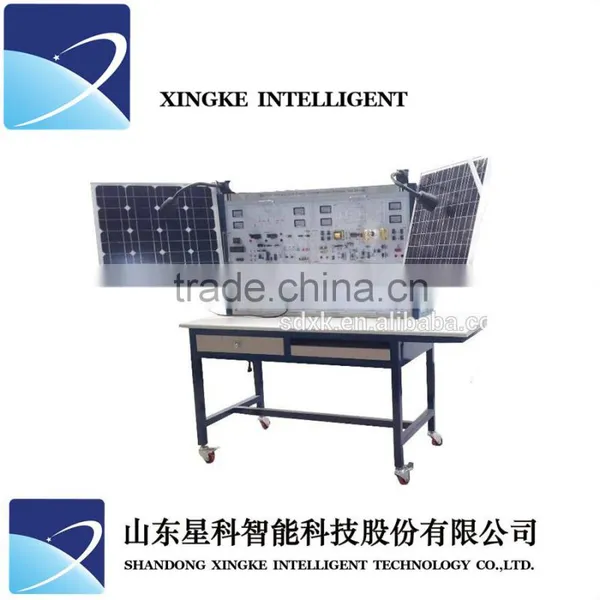

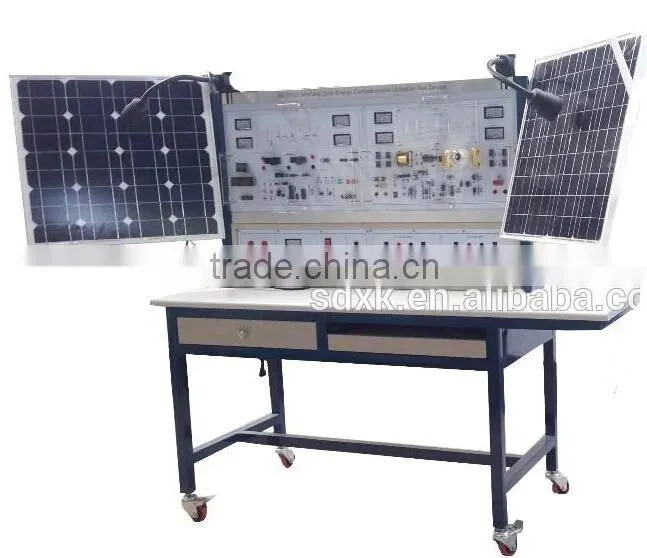

XK-FTD2 SOLAR ENERGY COMPREHENSIVE UTILIZATION TEST DEVICE
PRODUCT INTRODUCTION
Desktop modular structure, the device consists of solar panel, solar controller, storage battery, stand-alone inverter, DC load, AC load, AC and DC voltmeter, man-made light source and etc. the resources of the whole training device are completely open to users which is benefit for users’ second time development. The controller has many protections, include the protection of storage battery inversed grafting, storage battery overvoltage and under voltage, the solar battery module short circuit protection, with automatic recovery output over current protection function, output short circuit protection function
TECHNICAL PARAMETERS
(1) Size 1700 mm x 700 mm x 1500 mm;
(2)The power supply: Single phase AC220V, power < 500 VA.
(3) Solar battery group
Solar battery panel is the core part of solar power system. Its function is to change the solar energy to electric energy or send to storage battery and being stored or supply power to load.
1) Power: 30W
2) Open circuit voltage: 21V
3) Short circuit current: 2A
4) Maximum power voltage: 17.5V
5) Maximum power current: 1.7A
6) Module size: 550mm×505mm×30mm
ACCESSORIES
(1) K2 jumper line: 20pcs
(2) Experiment manual: 1pce
TRAINING PURPOSE
1) Solar photovoltaic board energy conversion experiment2) The environment on photovoltaic affect the conversion3) And solar battery photovoltaic system directly load characteristics experiments4) Solar controller working principle experiment and protection measures5) Solar controller battery of the overcharge protection experiment6) Solar controller battery discharge protection experiment7) The distance from the nets type inverter working principle experiment and protection measures8) AC load and dc load applications9) Microcontroller programming experiment10) Single-chip microcomputer download software to use11) IR2110 drive chip applications
