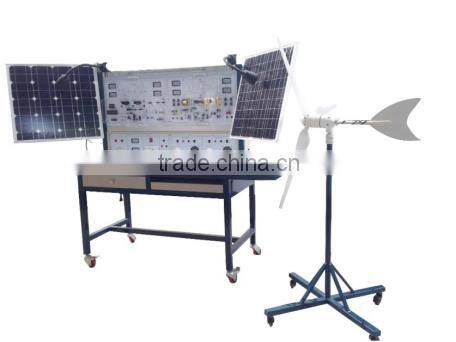

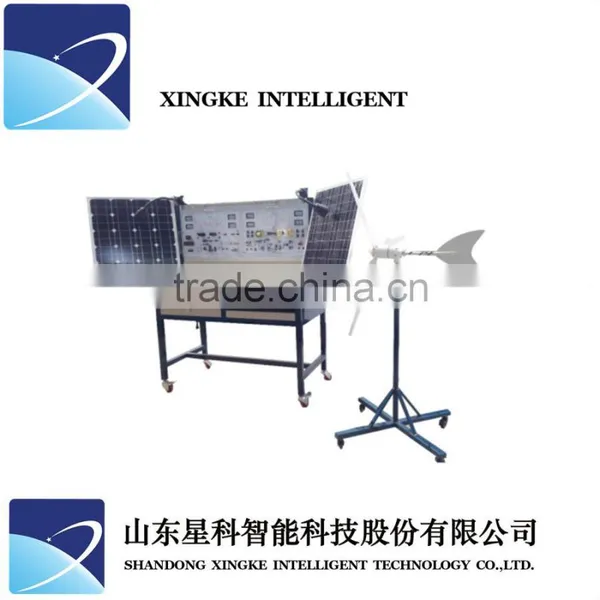

XK-FTD3 WIND AND SOLAR ENERGY COMPREHENSIVE UTILIZATION TEST DEVICE
PRODUCT INTRODUCTION
Desktop modular structure, device consists of wind driven generator, solar battery panel, solar controller, storage battery, stand-alone inverter, DC load, AC load , AC and DC voltmeter, man-made light source, etc. The resources of the whole training device are completely open to users which is benefit for users’ second time development, the controller has many kinds protection, includes storage reversed connection, storage under voltage and overvoltage protection, solar battery module short circuit protection, with automatic recovery output over current protection function, output short circuit protection function.
TECHNICAL PARAMETER
(1) Size 1700 mm x 700 mm x 1500 mm;
(2) The power supply: Single phase AC220V, power < 500 VA.
(3) Wind driven generator
1) Motor output voltage: 24V
2) Start wind speed: 3M/S
3) Rated wind speed: 8M/S
4) Rated rotary speed: 400r/m
5) Working wind speed: 3 M/S – 25 M/S
(4) Solar battery group
Solar battery panel is the core part of solar power system. Its function is to change the solar energy to electric energy or send to storage battery and being stored or supply power to load.
1) Power: 30W
2) Open circuit voltage: 21V
3) Short circuit current: 2A
4) Maximum power voltage: 17.5V
5) Maximum power current: 1.7A
6) Module size: 550mm×505mm×30mm
ACCESSORIES
(1) K2 jumper line: 20pcs
(2) Experiment manual: 1pce
TRAINING PURPOSE
1) The wind generator power generation principle2) Solar photovoltaic board energy conversion experiment3) And environment on the PV affect the conversion4) And environment on the influence of the wind power generator5) And solar battery photovoltaic system directly load characteristics experiments6) Solar controller working principle experiment and protection measures7) Solar controller battery of the overcharge protection experiment8) Solar controller battery discharge protection experiment9) The distance from the nets type inverter working principle experiment and protection measures10) AC load and dc load applications11) Microcontroller programming experiment12) And single-chip microcomputer download software to use13) IR2110 drive chip applications
