Comprehensive Mechanical and Electrical Integration Training Device, PLC Control, Mechatronics Lab

1. Product overview:

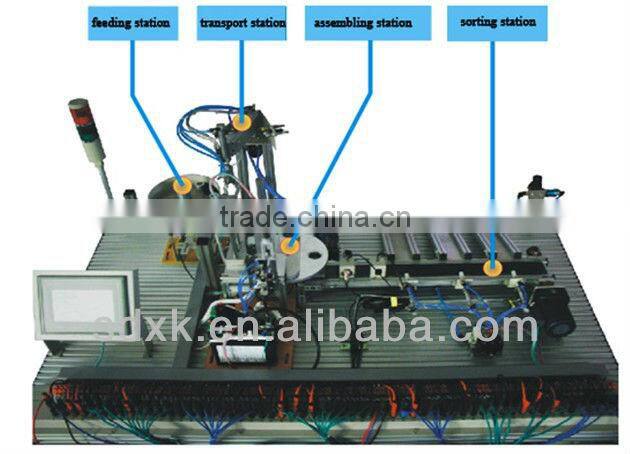

XK-JD4 mechanical and electrical integration training device consists four units that are installed on the aluminum alloy guide rail type training platform, such as feeding unit, transport unit, processing and assembling unit and sorting unit. Control module consists of five modules as the power supply module unit, button module unit, PLC module units module, frequency converter unit, touch screen module unit.

Among these five units, each working unit can form a independent system, and meanwhile it is also a training system of mechatronics and relative techniques.

The whole structure adopt open type and dismounting type, the training device is used for assembling of mechanical part, according to the mechanical part which is now available ,can assemble production training equipment, and also can add mechanical part to assemble other product training device, make the whole device can be flexibly assembled to mechanical and electrical integration device that will have simulation of product function according to teaching and learning or competition requirement. The module adopt standard structure and draw type module place frame, strong interchangeability.

According to principle of production function and integrated learning function to determine the module content, make the teaching and learning or competition can conveniently select the required module...

2. Device structure:
